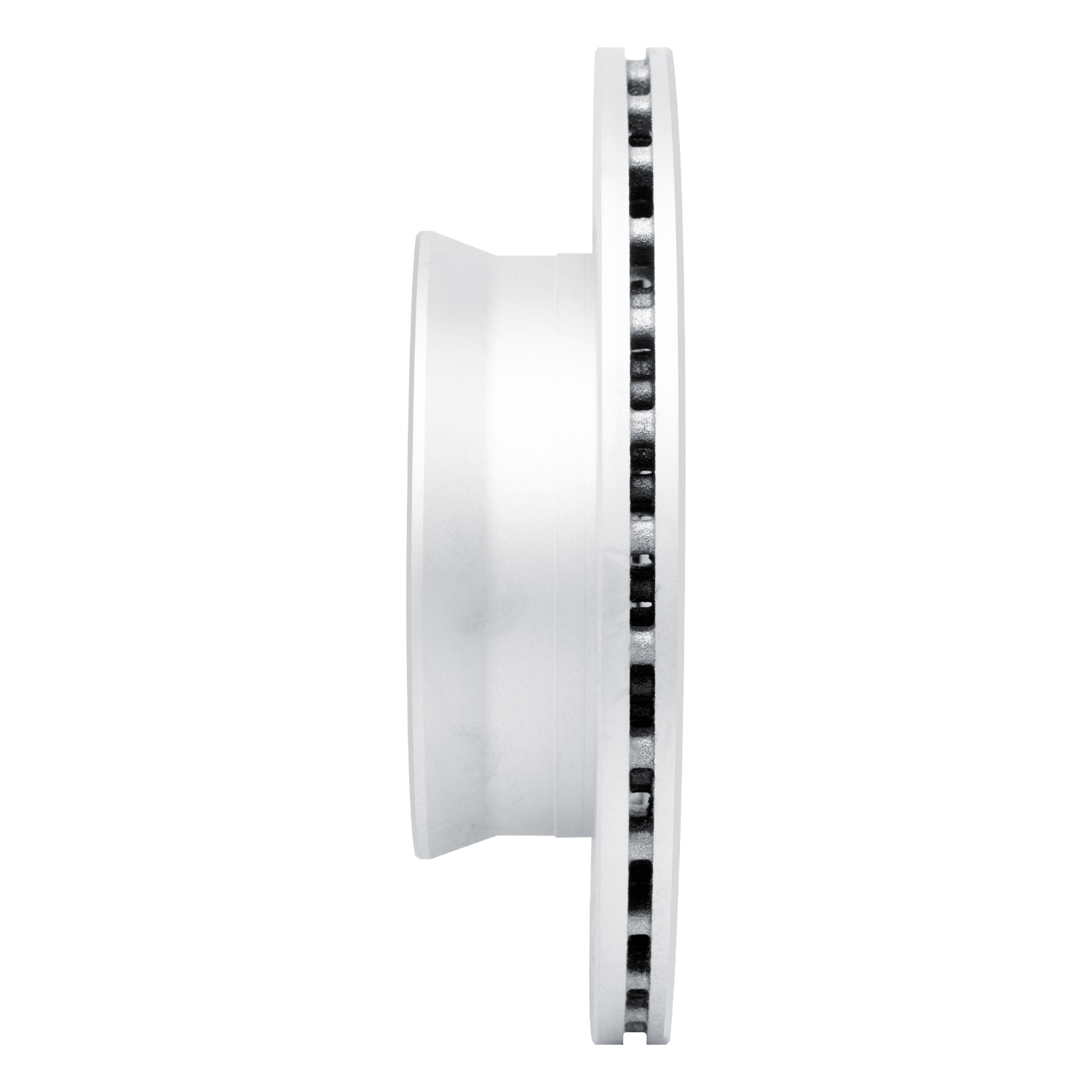

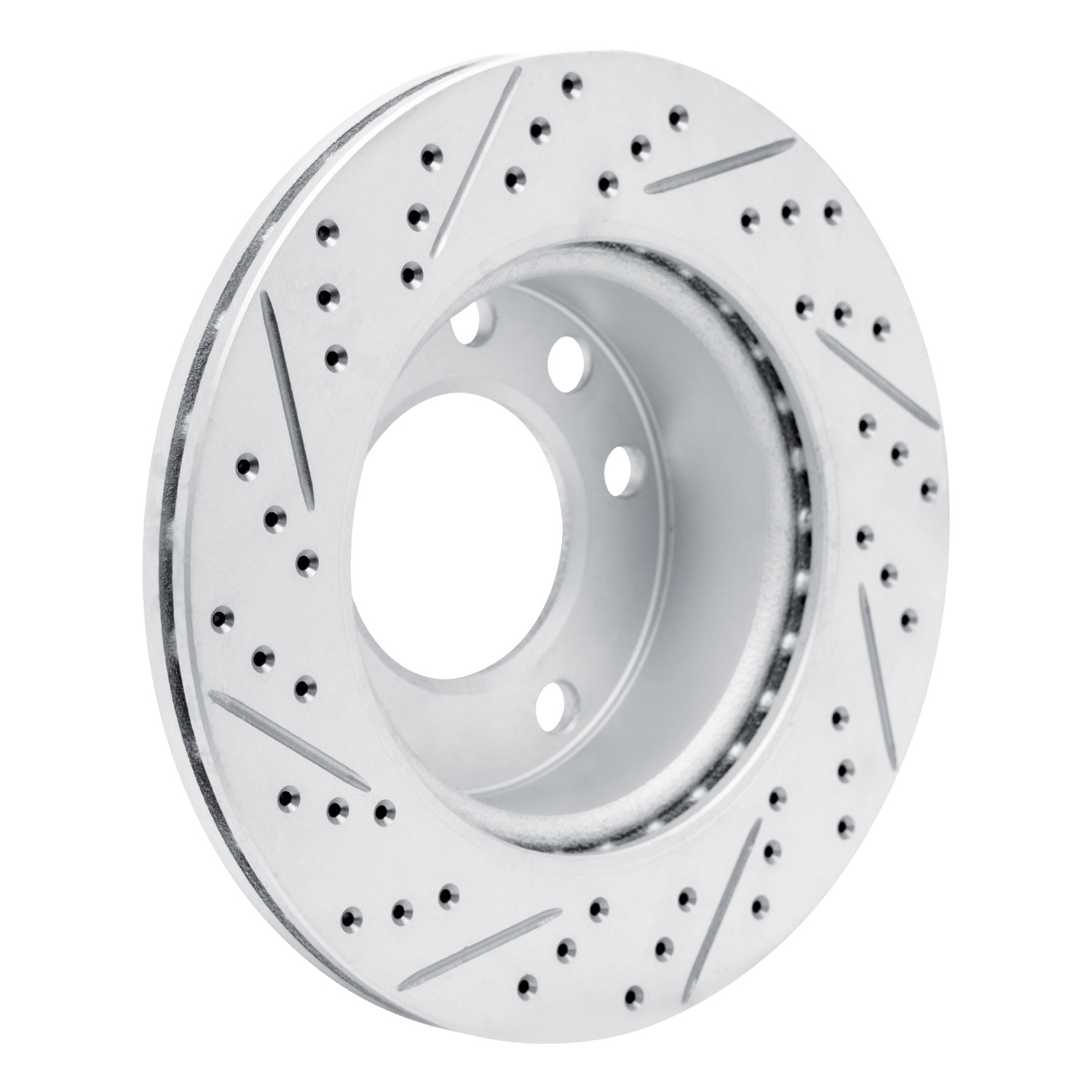

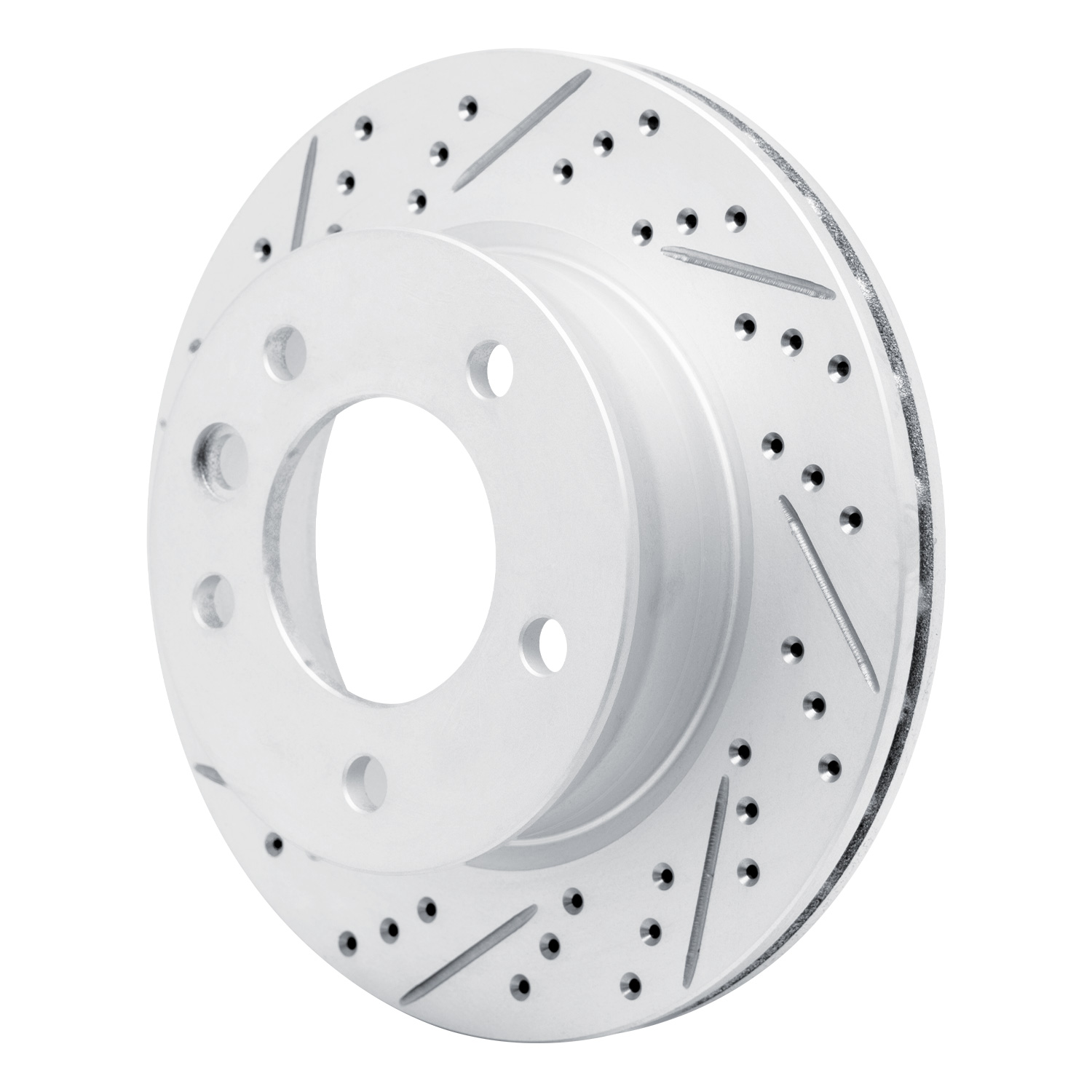

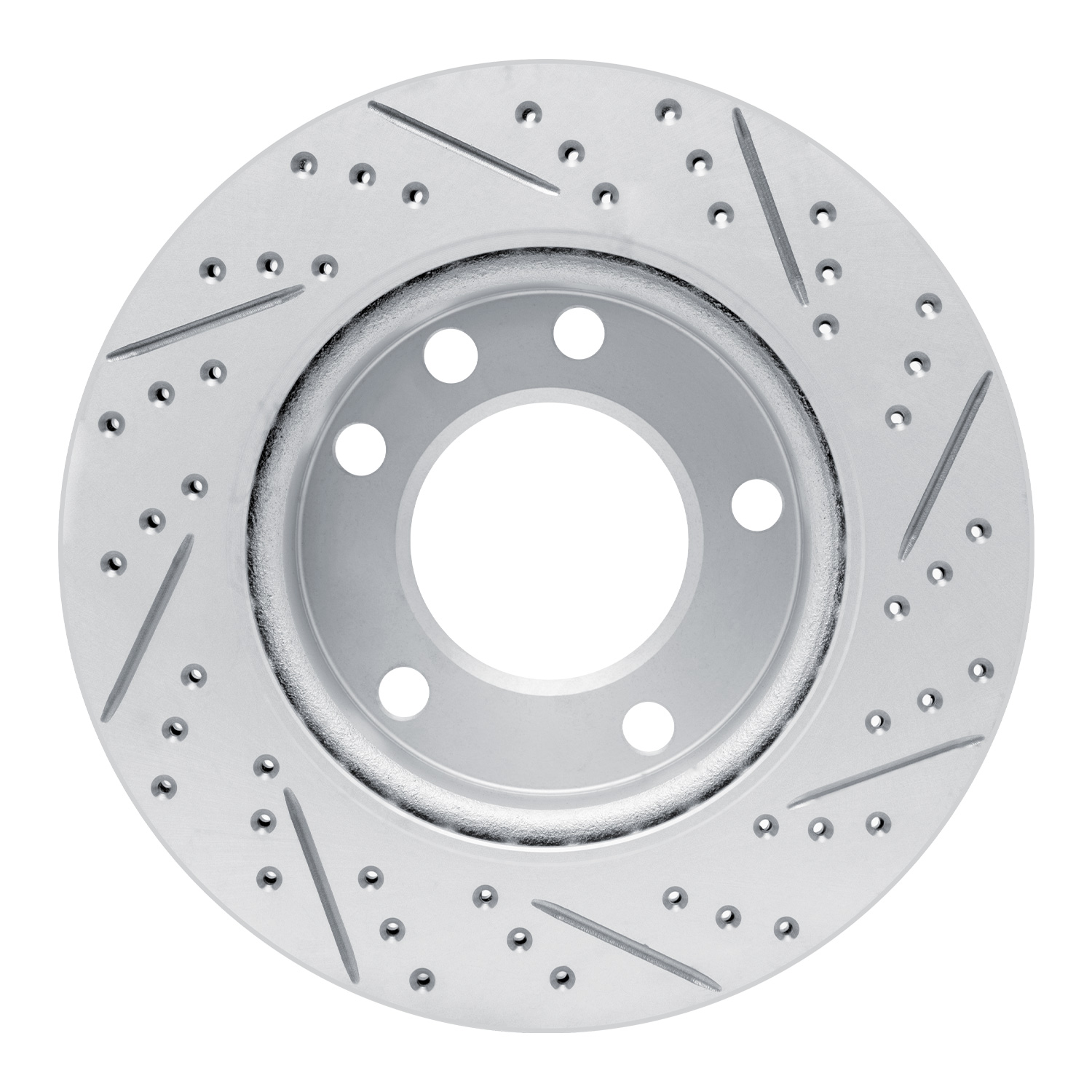

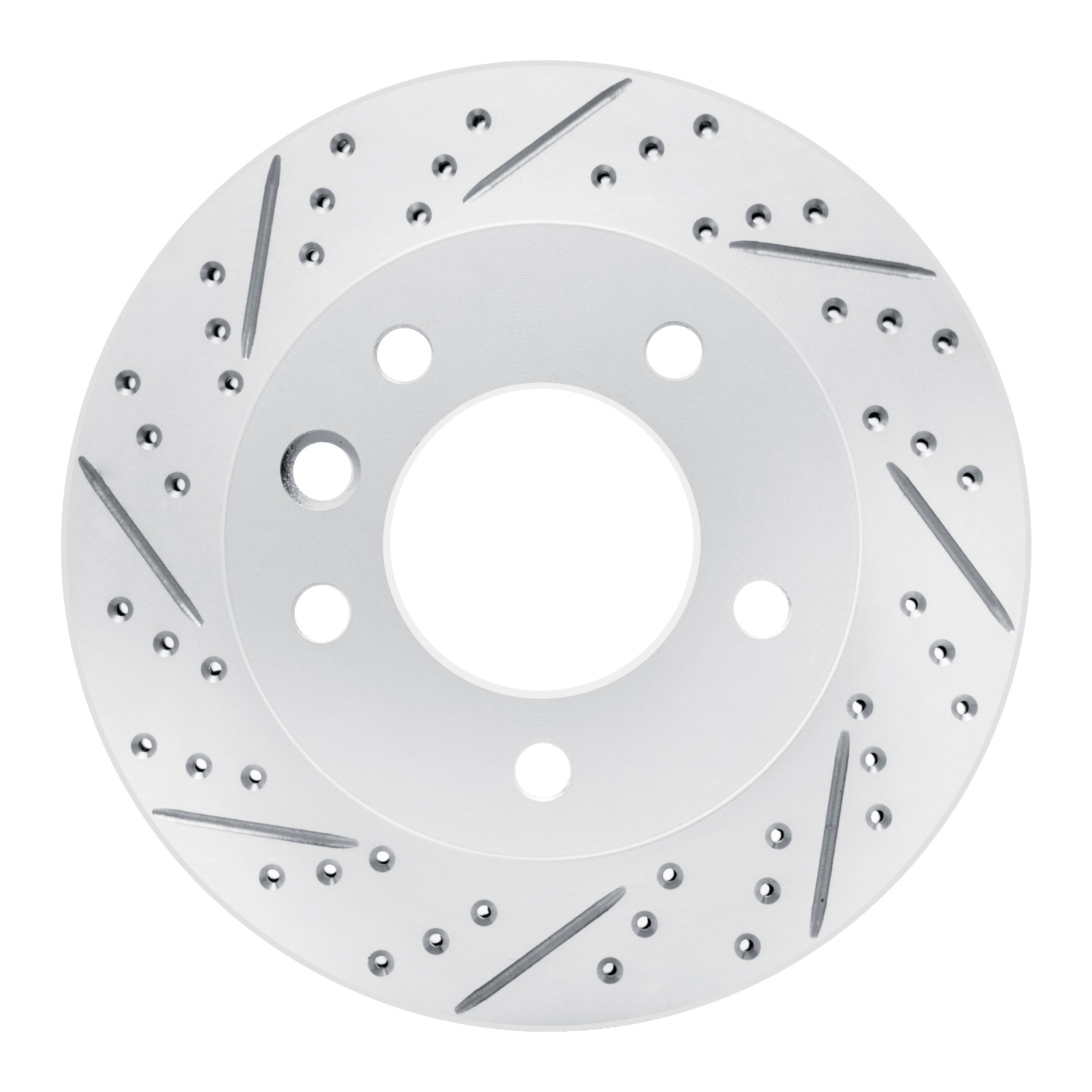

2004 Freightliner Sprinter 2500 DFC Geoperformance Rotor - Drilled and Slotted

Part Type:
Disc Brake Rotor
SKU:
830-40042L
Axle:
Front Left
PCQ:
1
Note:

285mm Front Disc

285mm Front, 272mm Rear Disc; Clip Style Brake Pad Sensors; ATE Rear Calipers

285mm Front, 272mm Rear Disc; Pin Style Brake Pad Sensors; ATE Rear Calipers

285mm Front, 272mm Rear Disc; Pin Style Brake Pad Sensors; Bosch Rear Calipers

Description

  • DFC Geoperformance Rotor - Drilled and Slotted

Product Specifications

Description Value
Bolt Hole Diameter 15mm
Hat Finish Geospec Silver Grey
Outside Diameter 284.5mm
Bolt Hole Quantity 5EA
Disc Finish Plain
Solid Or Vented Type Rotor Vented
Nominal Thickness 22mm
Height 72.2mm
Overall Height 72.2mm
Center Hole Diameter 85mm
Description Value
Rust Resistant Coating Yes
Discard Thickness 19mm
Directional or Non-Directional Brake Surface Directional
Stud/Lug Hole Quantity 5
Bolt Circle Diameter 130mm
Surface Type Slotted X Drilled
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Stud/Lug Hole Diameter 15mm
Stud/Lug Hole Circle Diameter 130mm
Weight 16.1LB
