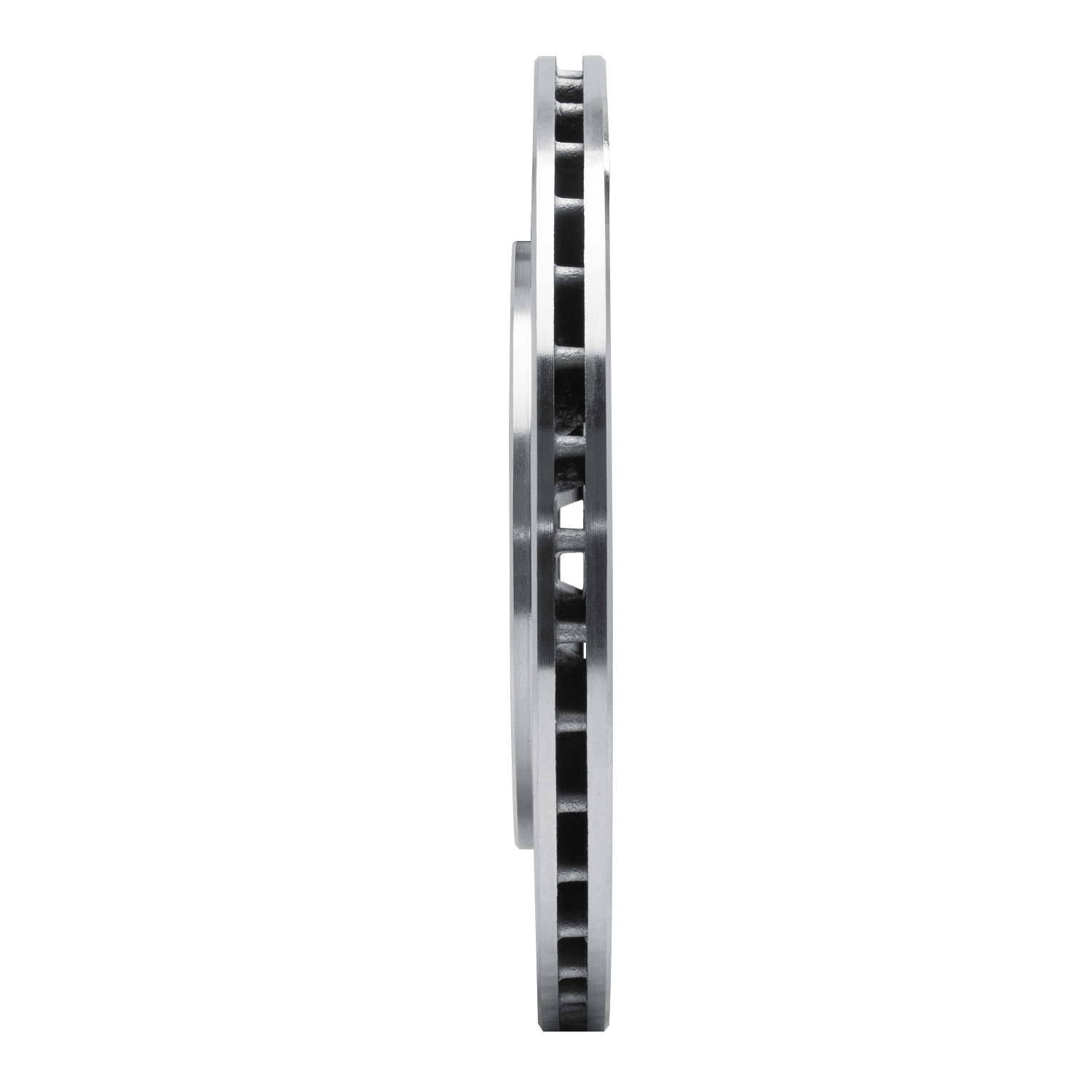

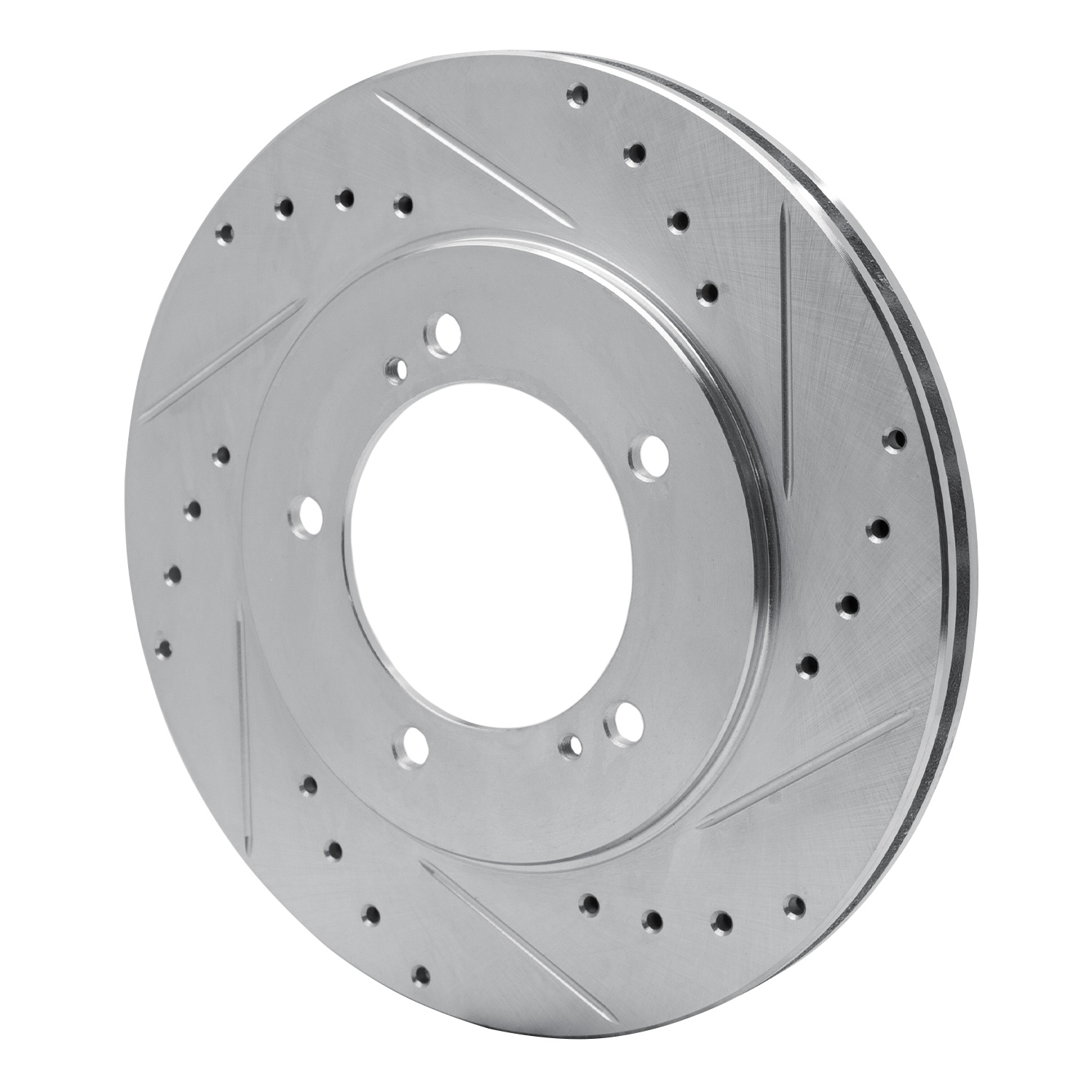

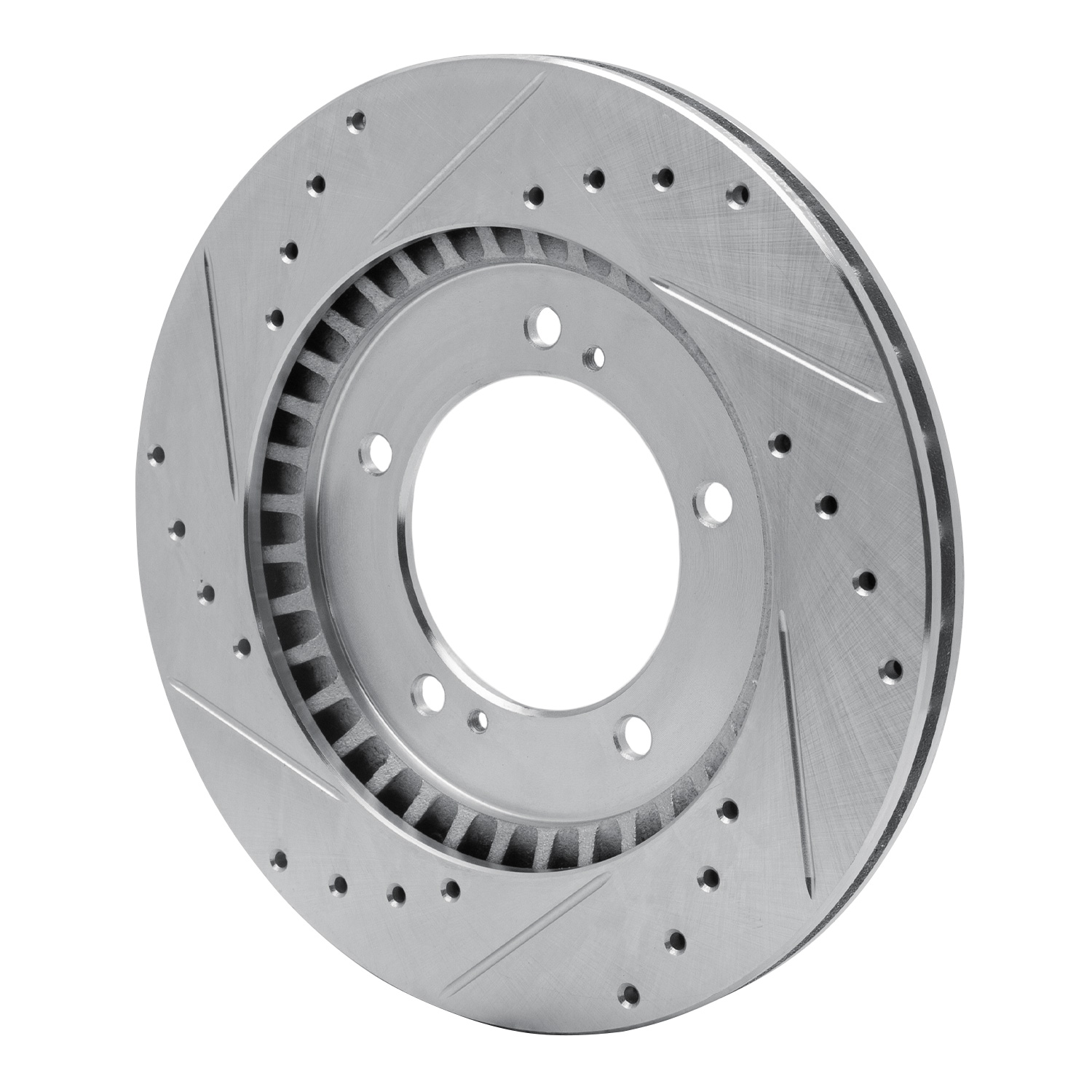

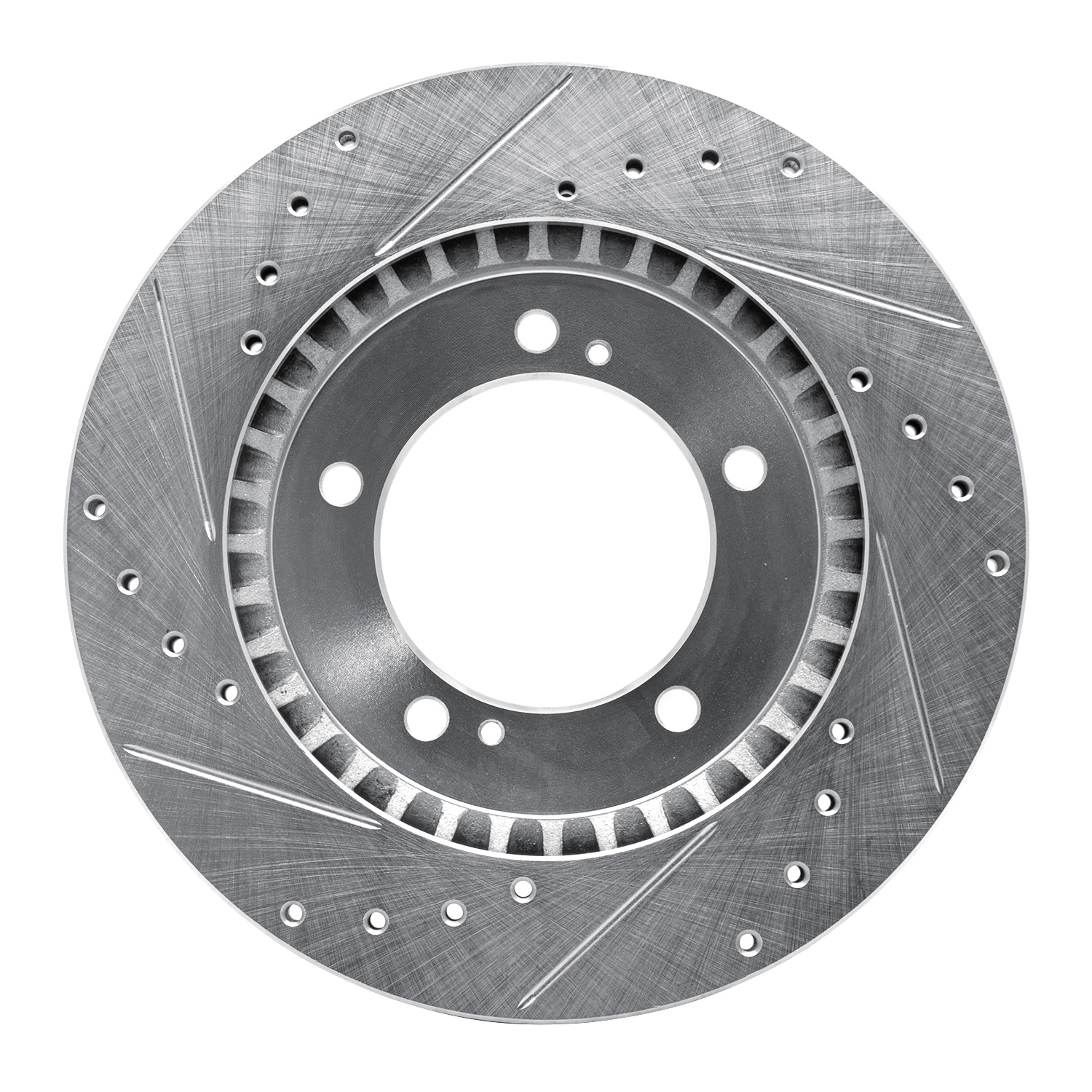

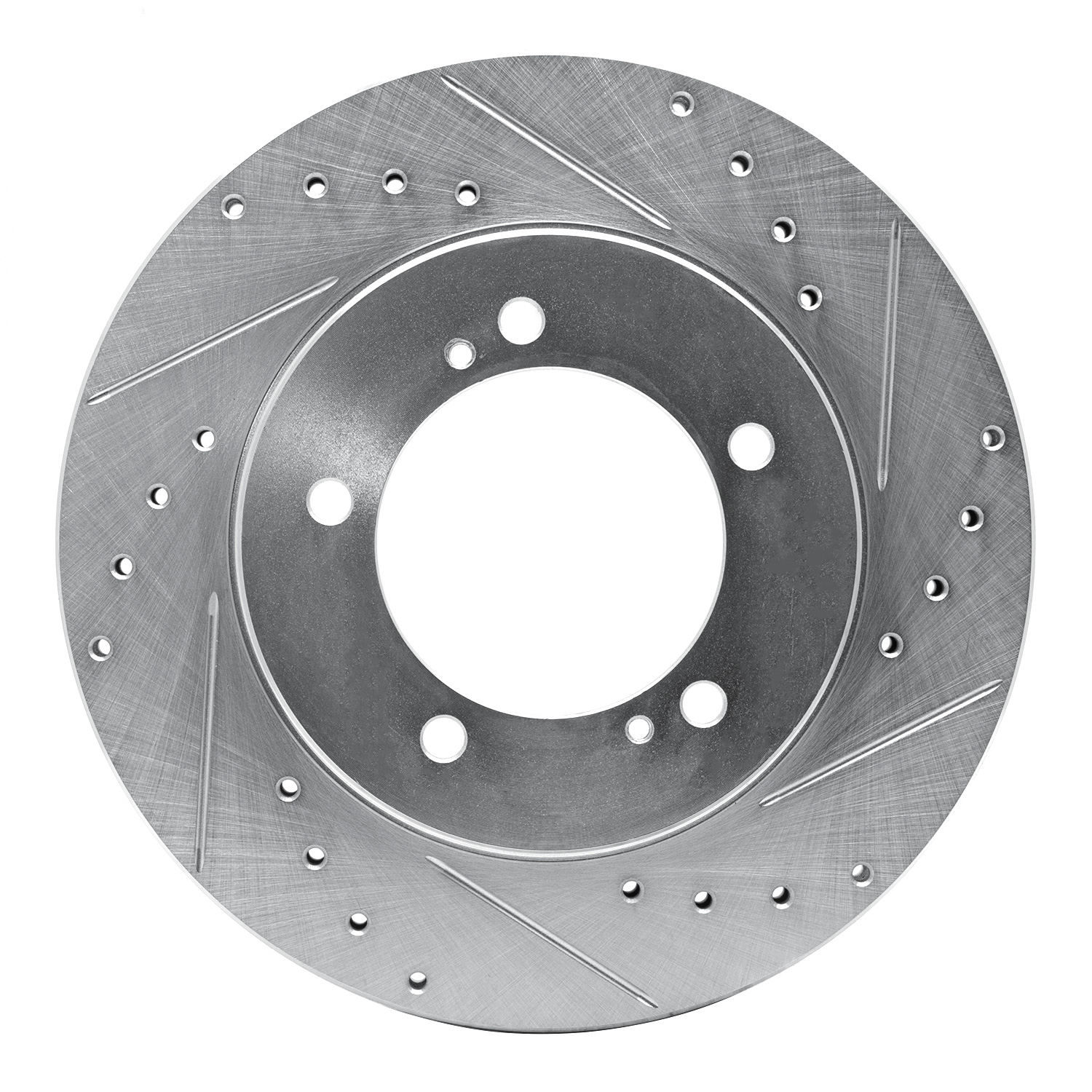

2000 Suzuki Grand Vitara DFC Brake Rotor - Drilled and Slotted - Silver

Part Type:
Disc Brake Rotor
SKU:
631-01013R
Axle:
Front Right
PCQ:
1

Description

  • DFC Brake Rotor - Drilled and Slotted - Silver

Features and Benefits

  • New In Box, Ready To Install, No Modifications Required
  • Non-Directional Finish To Promote Faster Break-In And Smoother Stops
  • Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
  • 100% Precision Cut And Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
  • Quality Tested To Ensure Long-Lasting Performance
  • CNC-Machined To The Tightest Tolerances
  • Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
  • Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
  • Zinc Plated Silver For Rust Protection On The Rotor Hub, Vents, And Edge

Product Specifications

Description Value
Bolt Hole Quantity 5EA
Disc Finish Plain
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Discard Thickness 20mm
Outside Diameter 310mm
Overall Height 29.1mm
Height 29.1mm
Rust Resistant Coating Yes
Nominal Thickness 22mm
Description Value
Surface Type Slotted X Drilled
Hat Finish Zinc Silver
Center Hole Diameter 108.4mm
Stud/Lug Hole Diameter 12.8mm
Solid Or Vented Type Rotor Vented
Directional or Non-Directional Brake Surface Directional
Stud/Lug Hole Quantity 5
Stud/Lug Hole Circle Diameter 139.7mm
Bolt Circle Diameter 139.7mm
Weight 14.1LB
