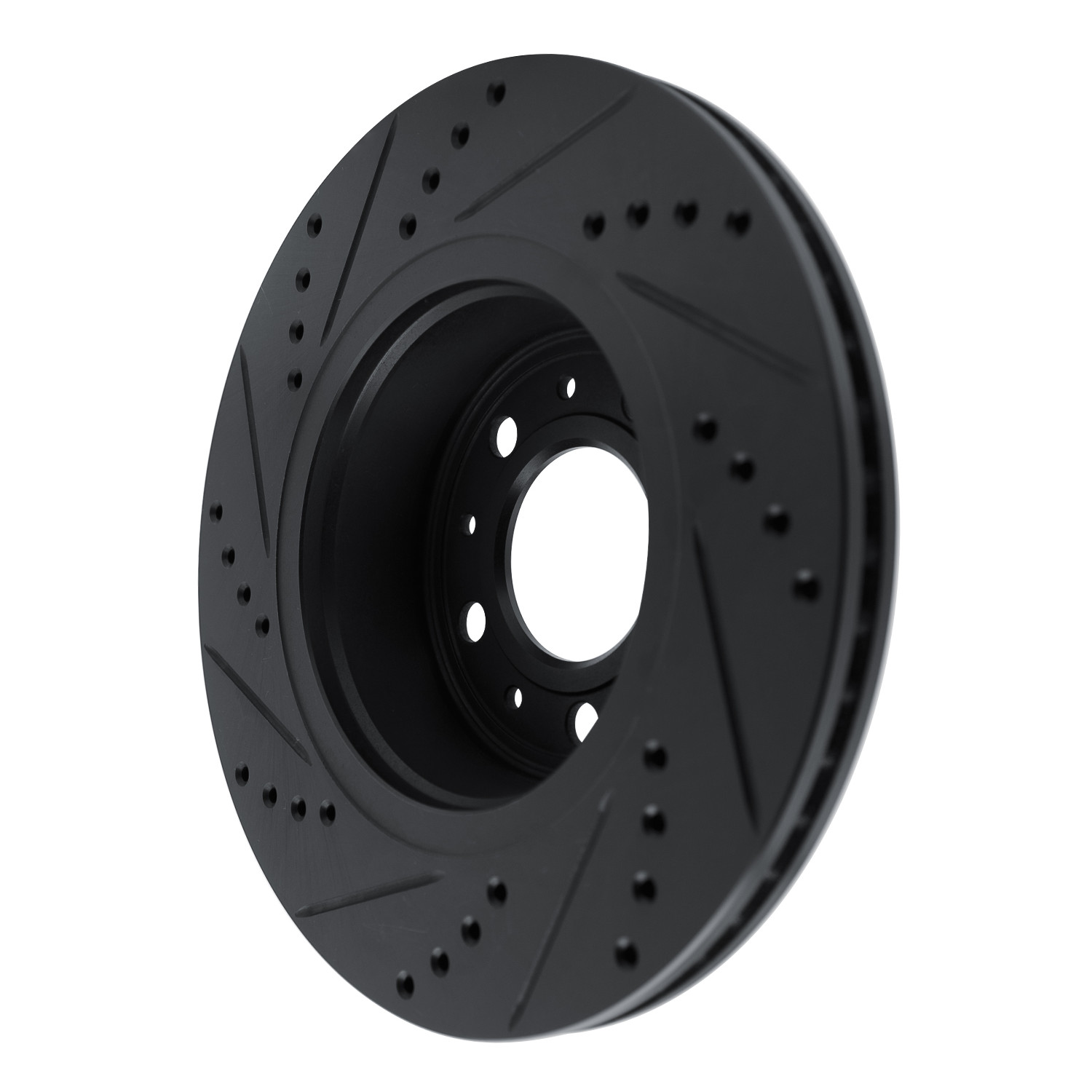

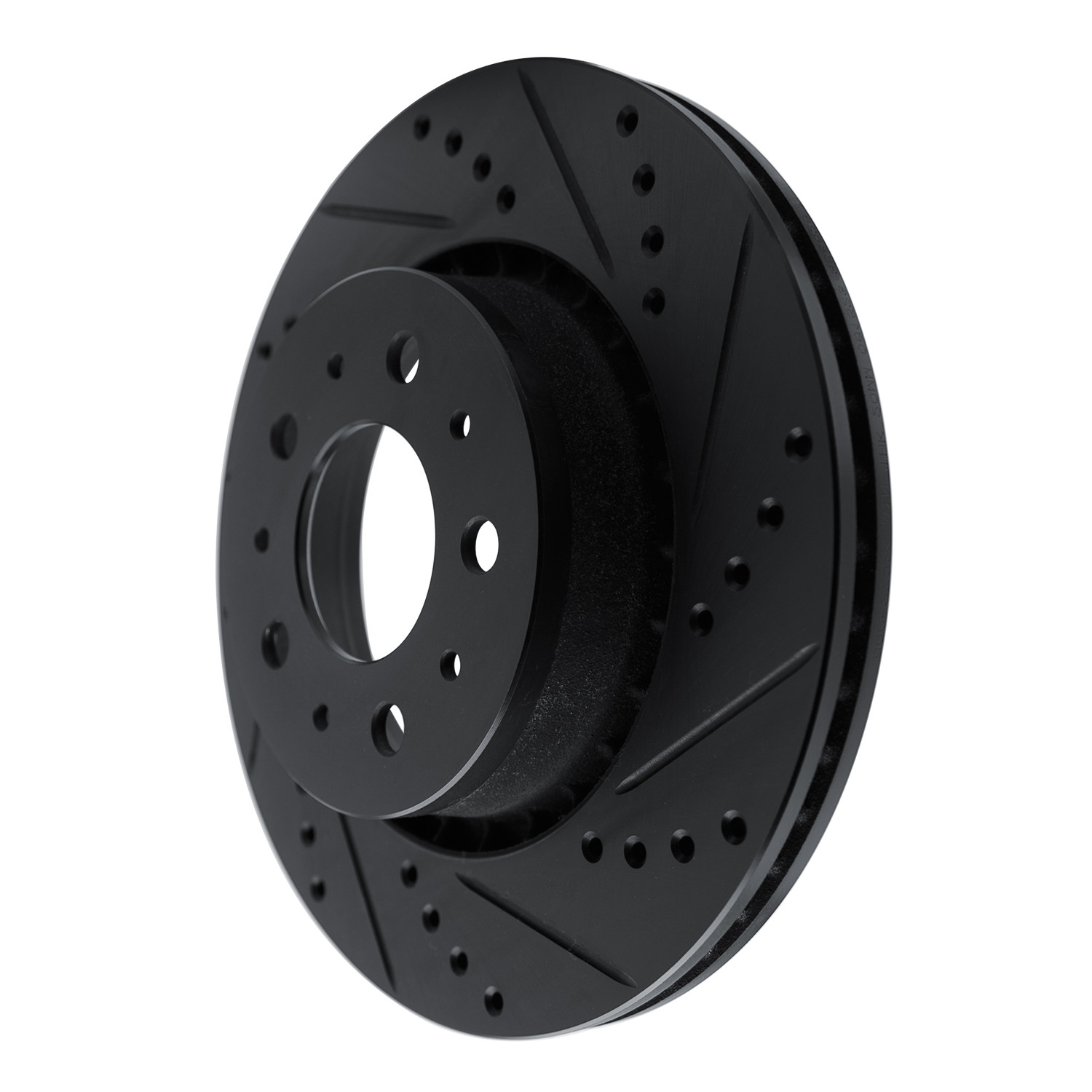

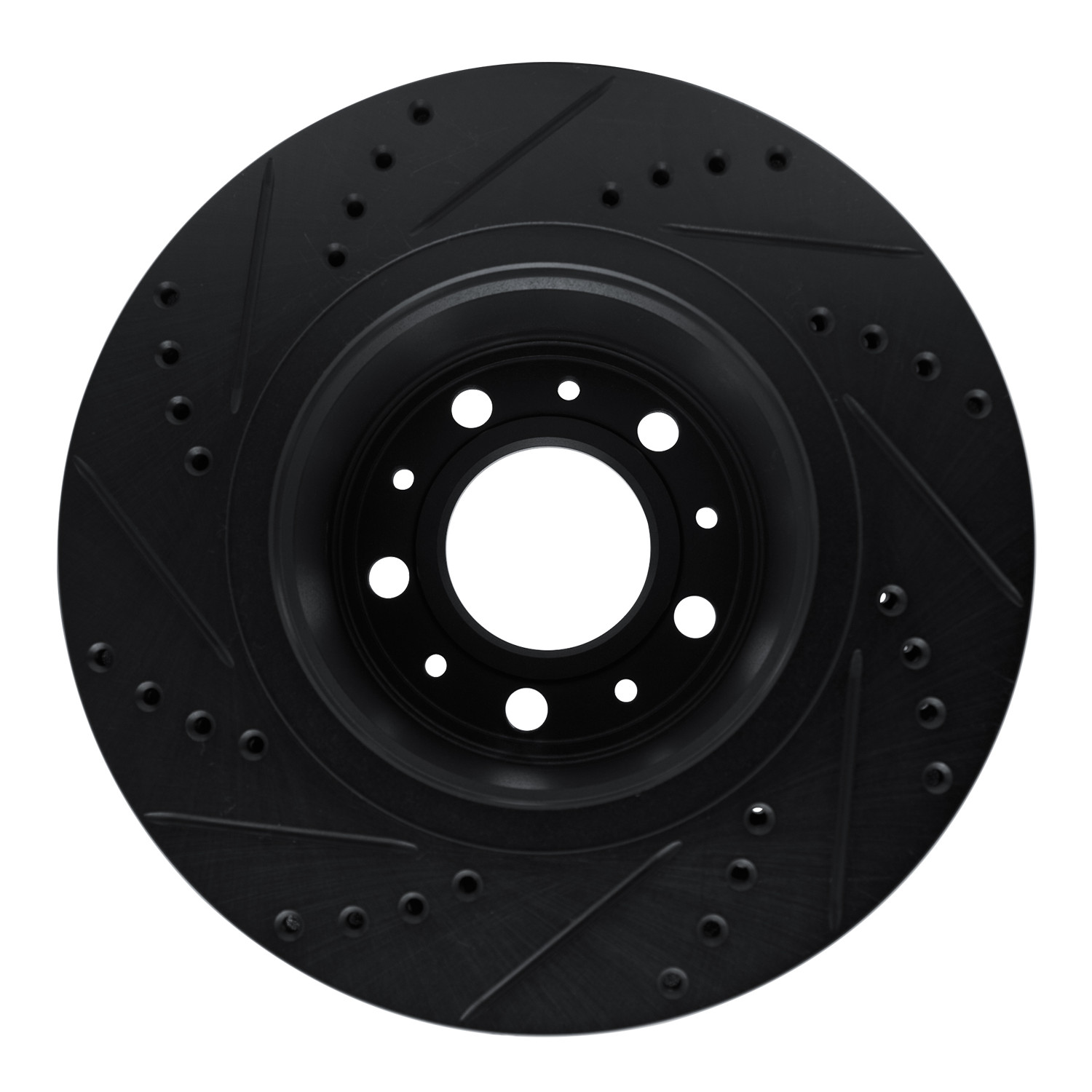

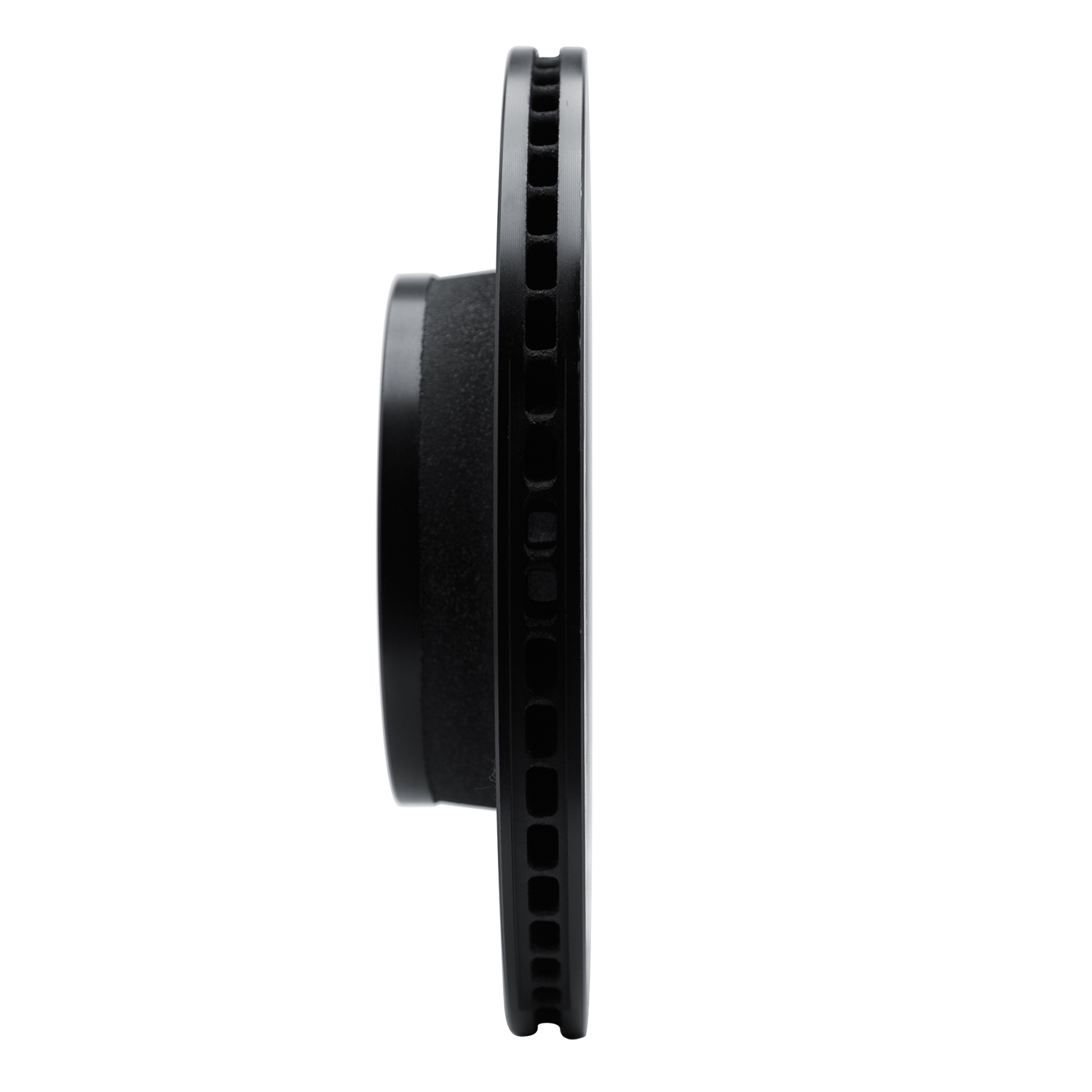

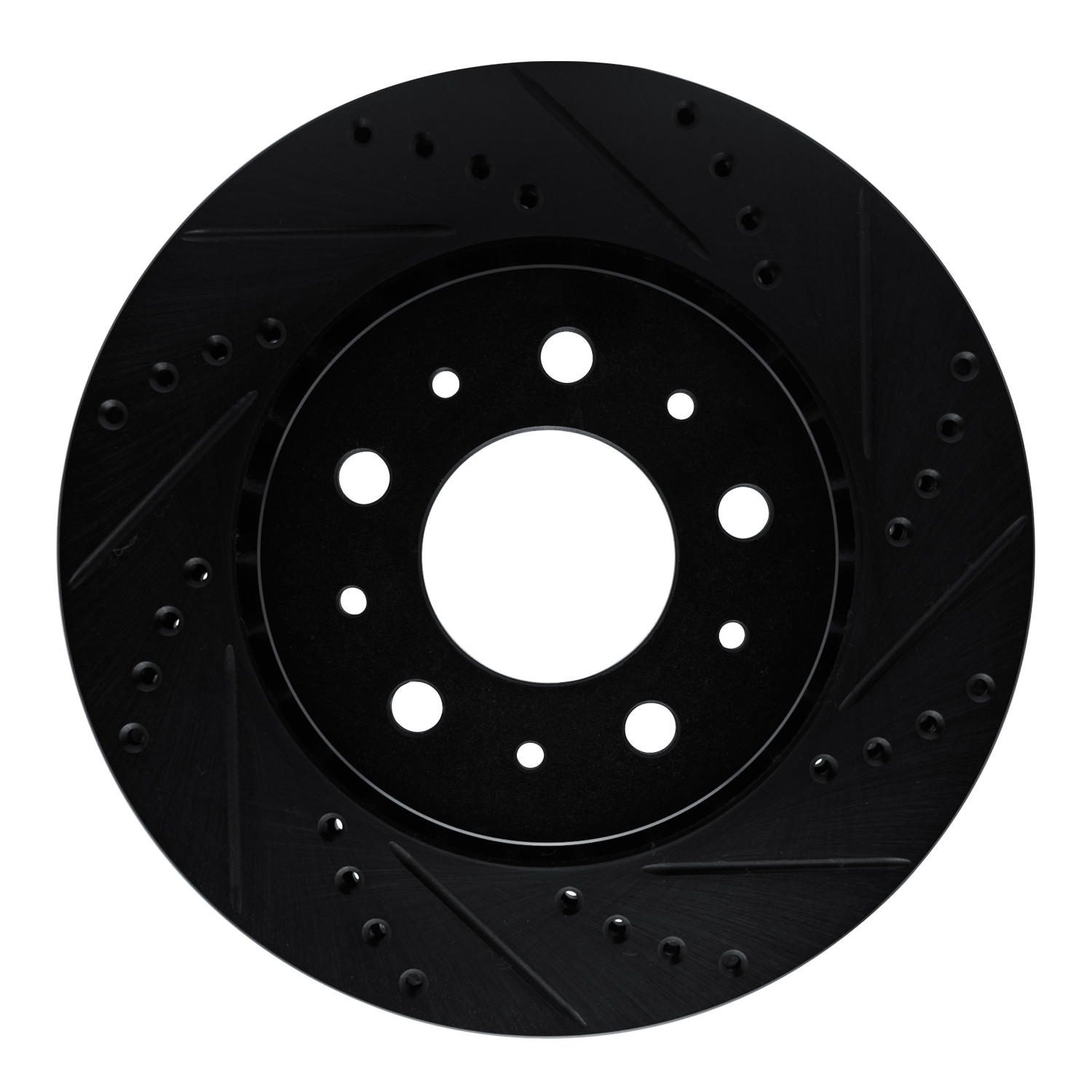

1985 Volvo 745 DFC Brake Rotor - Drilled and Slotted - Black

Part Type:
Disc Brake Rotor
SKU:
633-27013R
Axle:
Front Right
PCQ:
1
Note:

w/ ABS; Bendix Caliper; Pad with Tabs; Disc Only

w/ ABS; Bendix Caliper; Pad without Tabs; Disc Only

w/ ABS; Girling Caliper; Disc Only

Description

  • DFC Brake Rotor - Drilled and Slotted - Black

Features and Benefits

  • 100% Precision Cut And Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
  • Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
  • New In Box, Ready To Install, No Modifications Required
  • CNC-Machined To The Tightest Tolerances
  • Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
  • Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
  • Zinc Plated Black For Rust Protection On The Rotor Hub, Vents, And Edge
  • Non-Directional Finish To Promote Faster Break-In And Smoother Stops
  • Quality Tested To Ensure Long-Lasting Performance

Product Specifications

Description Value
Overall Height 56mm
Bolt Hole Quantity 5EA
Bolt Hole Diameter 14mm
Height 56mm
Solid Or Vented Type Rotor Vented
Outside Diameter 287mm
Surface Type Slotted X Drilled
Discard Thickness 20mm
Stud/Lug Hole Diameter 14mm
Hat Finish Zinc Black
Description Value
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Nominal Thickness 22mm
Stud/Lug Hole Circle Diameter 108mm
Center Hole Diameter 68mm
Disc Finish Plain
Rust Resistant Coating Yes
Stud/Lug Hole Quantity 5
Directional or Non-Directional Brake Surface Directional
Bolt Circle Diameter 108mm
Weight 14.62LB
