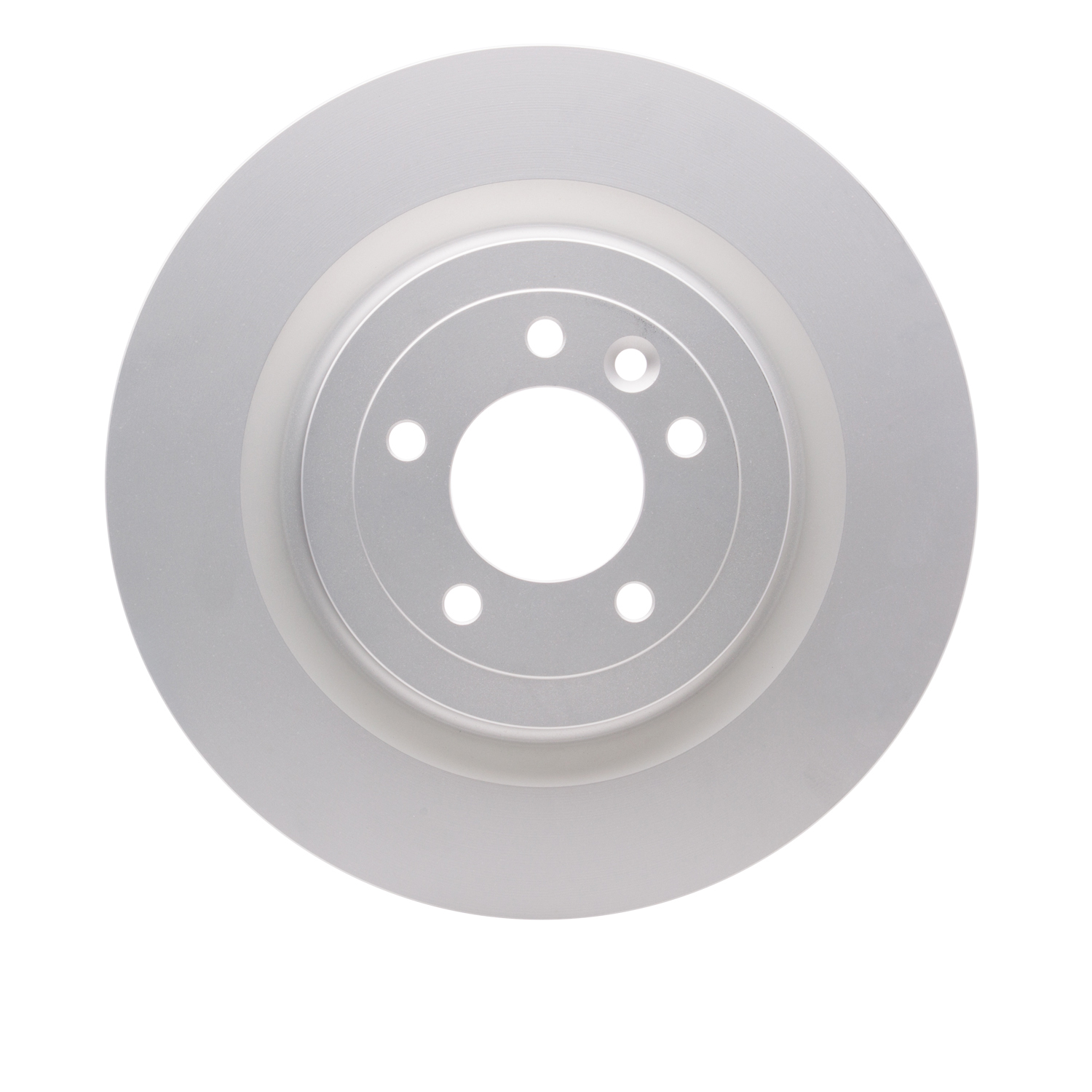

2021 Land Rover Defender 90 DFC Hi-Carbon Alloy GEOMET Coated Rotor
Part Type:
Disc Brake Rotor
SKU:
900-11023
Axle:
Rear
Sub model:
First Edition, X, X-Dynamic S
PCQ:
2
Note:
6 Piston Front Calipers, 380mm Front Disc; 22 inch Wheels
Description
- DFC Hi- Carbon Alloy GEOMET Coated
Features and Benefits
- 100% Precision Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
- Fined Turned Finish (16 RMS) For Improved Initial Rotor And Pad Break-In
- Lateral Runout - 050 MM Maximum
- Disc Thickness Variation (DTV) - 010 MM Maximum
- Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
- Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
- Geomet® Coated To Provide High-Performance Corrosion Protection
Product Specifications
| Description | Value |
|---|---|
| Discard Thickness | 22mm |
| Outside Diameter | 365mm |
| Bolt Hole Quantity | 5EA |
| Inside Diameter | 79mm |
| Bolt Hole Diameter | 14.5mm |
| Nominal Thickness | 25mm |
| Height | 49mm |
| Disc Finish | Plain |
| Overall Height | 49mm |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Description | Value |
|---|---|
| Hat Finish | GEOMET Grey |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems). | |
| Rust Resistant Coating | Yes |
| Stud/Lug Hole Quantity | 5 |
| Center Hole Diameter | 79mm |
| Stud/Lug Hole Circle Diameter | 120mm |
| Stud/Lug Hole Diameter | 14.5mm |
| Weight | 24.95LB |
