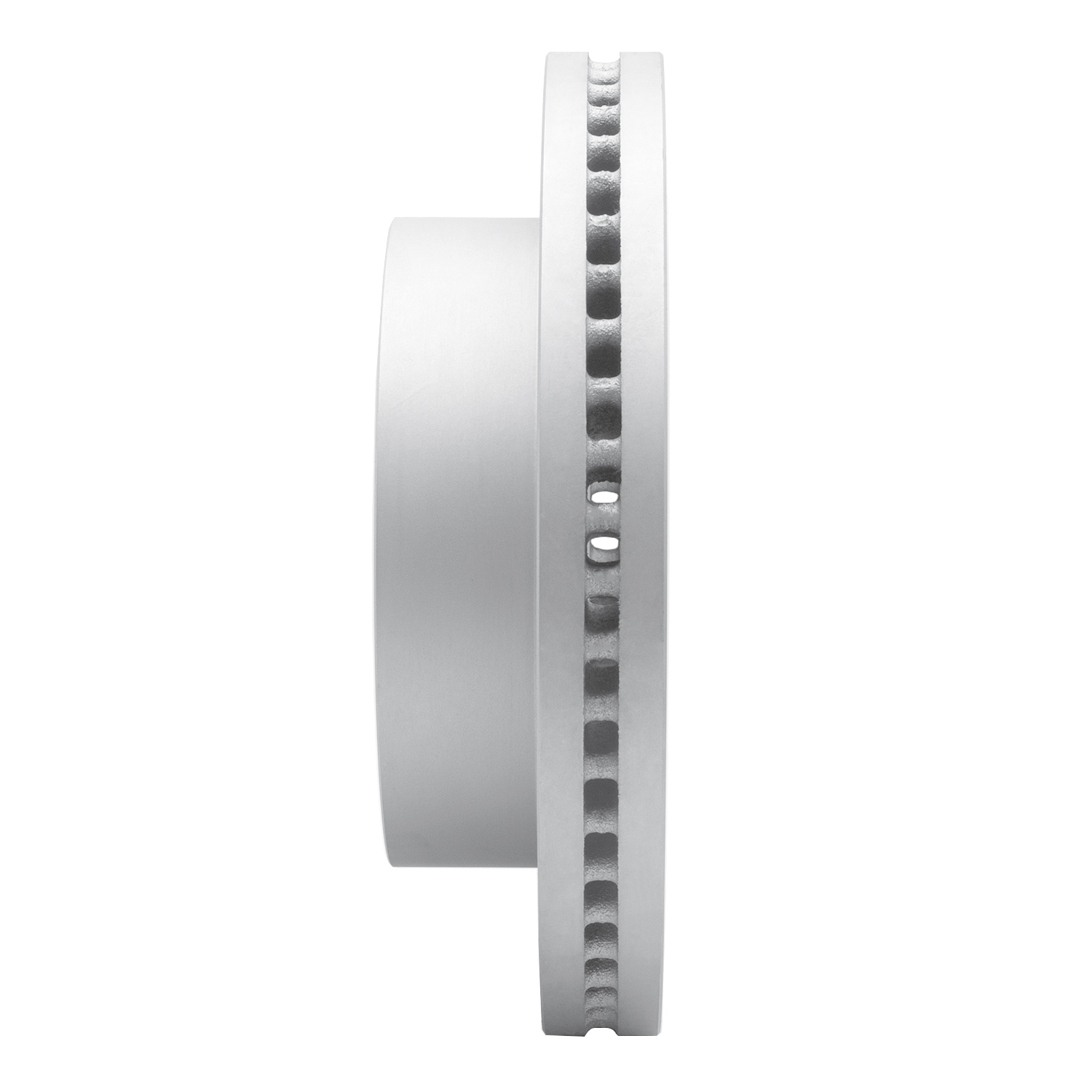

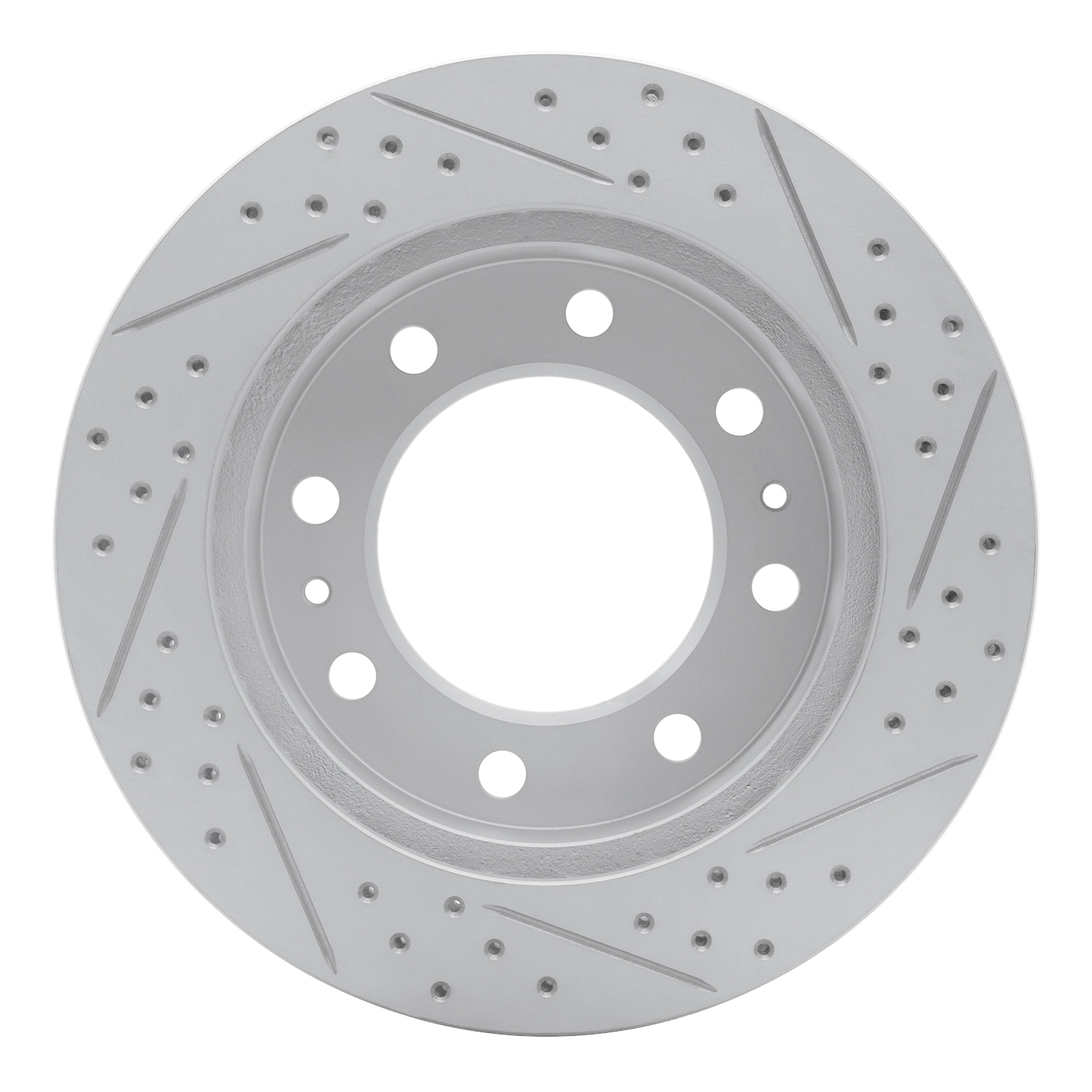

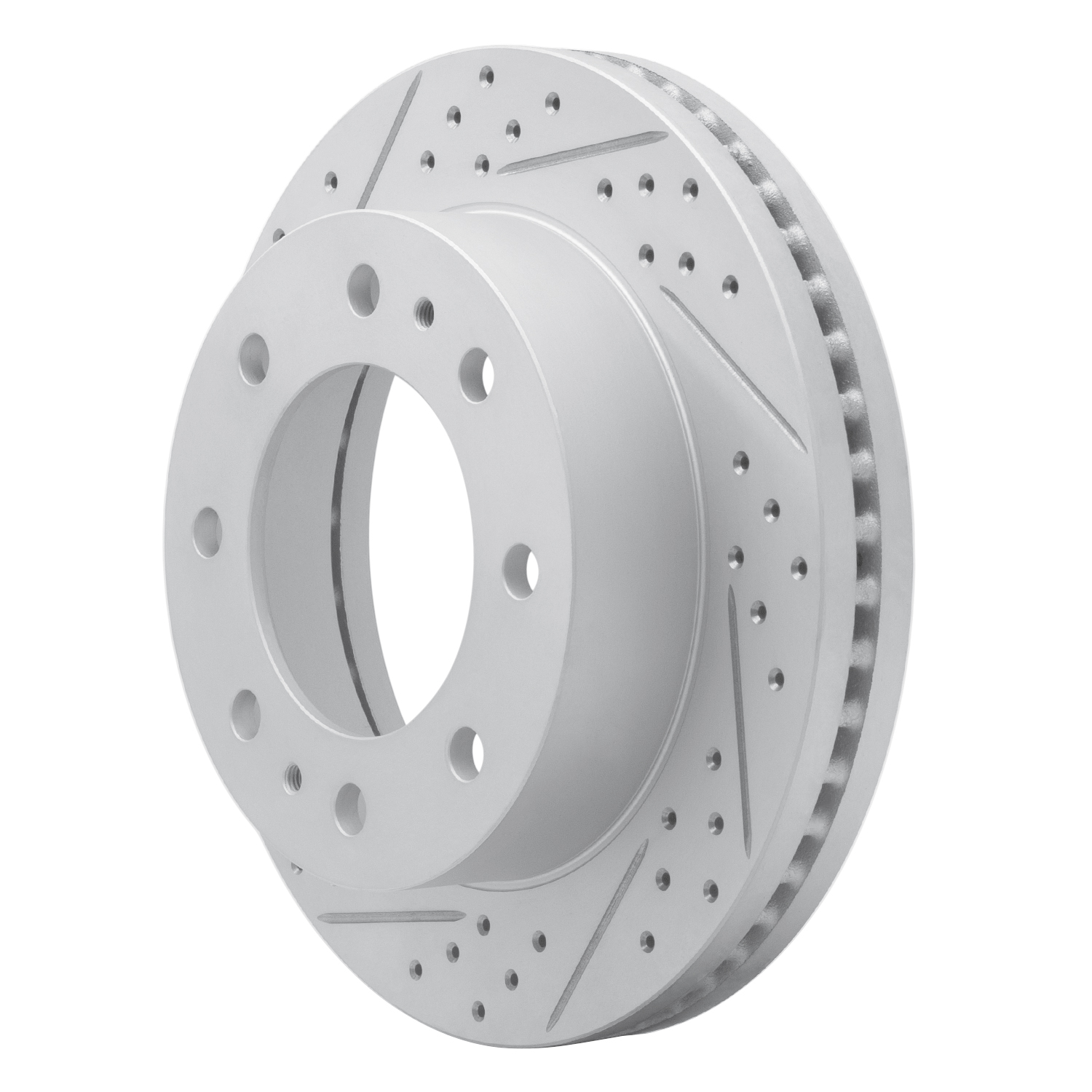

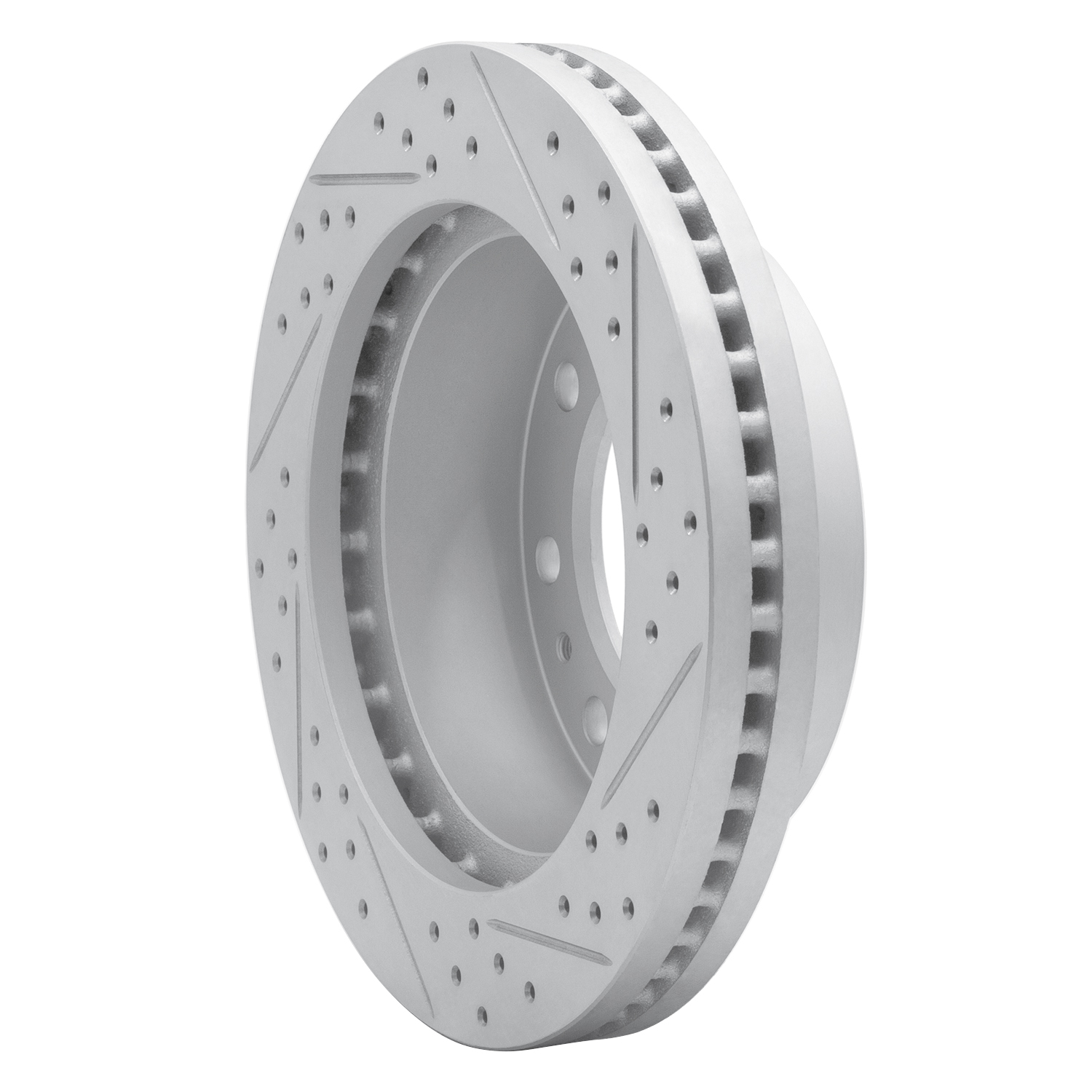

2020 GMC Savana 4500 DFC Geoperformance Rotor - Drilled and Slotted

Part Type:
Disc Brake Rotor
SKU:
830-48051L
Axle:
Front Left
PCQ:
1
Note:

Cutaway Commercial Chassis

Description

  • DFC Geoperformance Rotor - Drilled and Slotted

Product Specifications

Description Value
Outside Diameter 325mm
Discard Thickness 36.5mm
Bolt Hole Quantity 8EA
Surface Type Slotted X Drilled
Height 89.3mm
Overall Height 89.3mm
Nominal Thickness 38mm
Center Hole Diameter 118.2mm
Bolt Hole Diameter 16.4mm
Solid Or Vented Type Rotor Vented
Description Value
Disc Finish Plain
Stud/Lug Hole Quantity 8
Hat Finish Geospec Silver Grey
Stud/Lug Hole Diameter 16.4mm
Rust Resistant Coating Yes
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Directional or Non-Directional Brake Surface Directional
Stud/Lug Hole Circle Diameter 165.1mm
Bolt Circle Diameter 165.1mm
Weight 29.75LB
