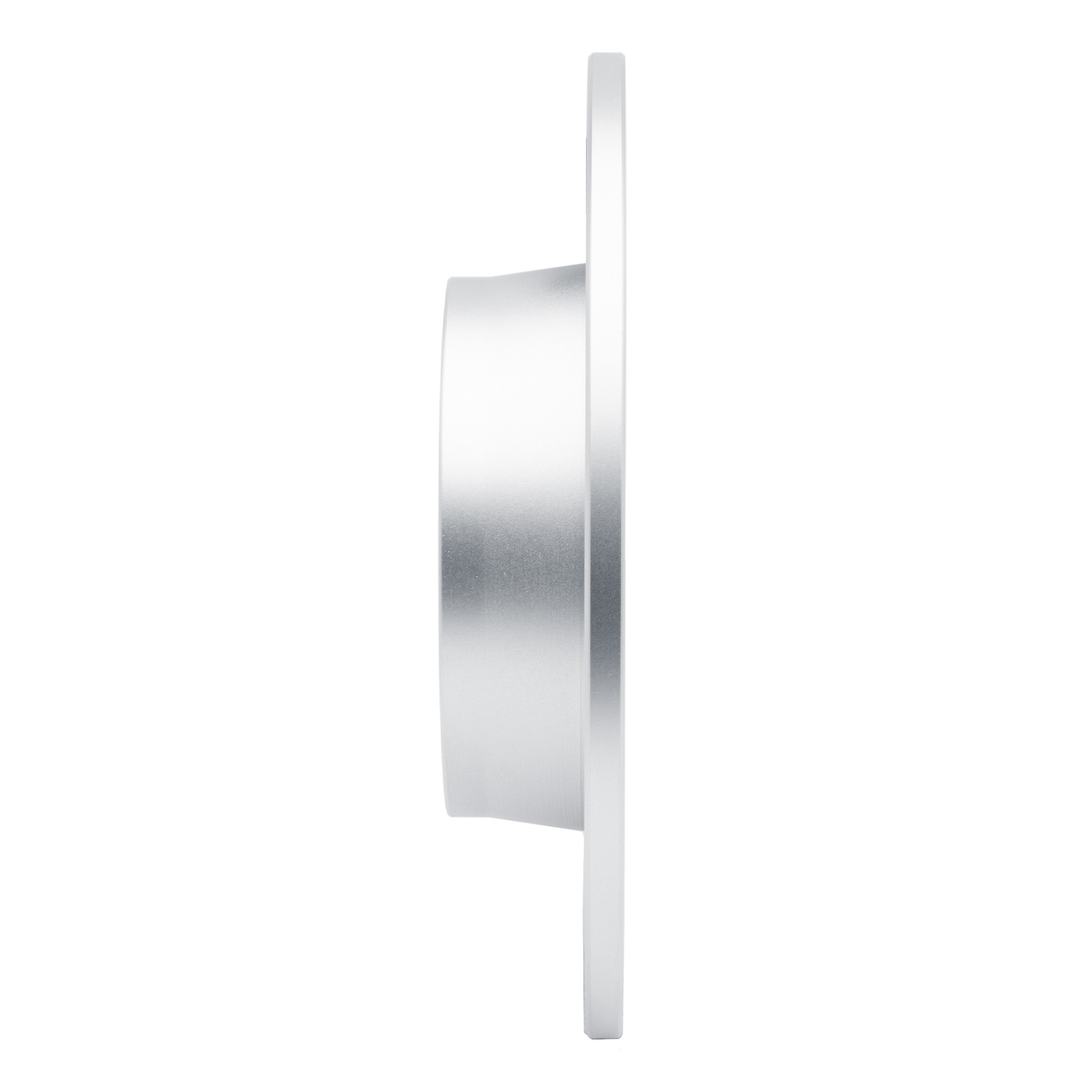

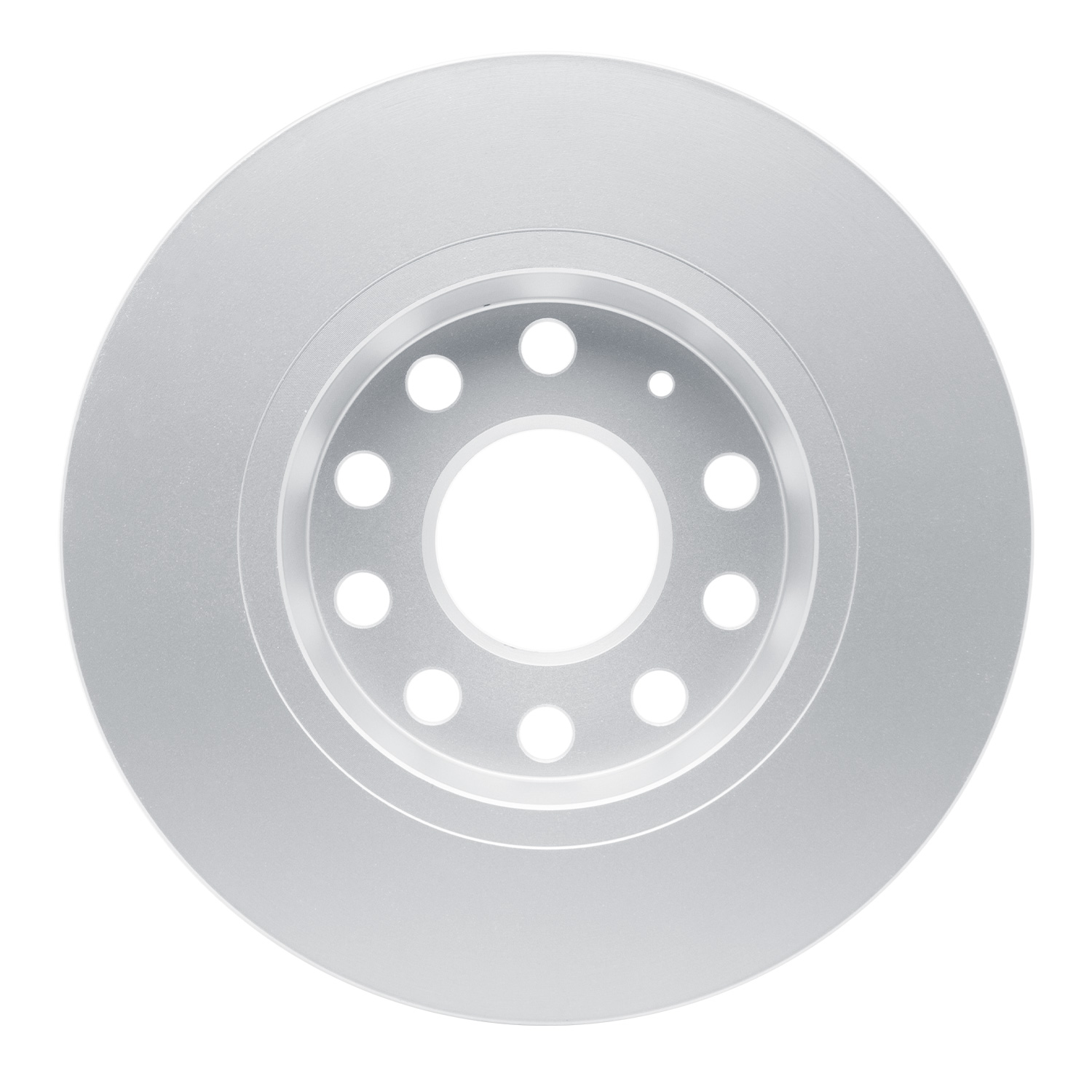

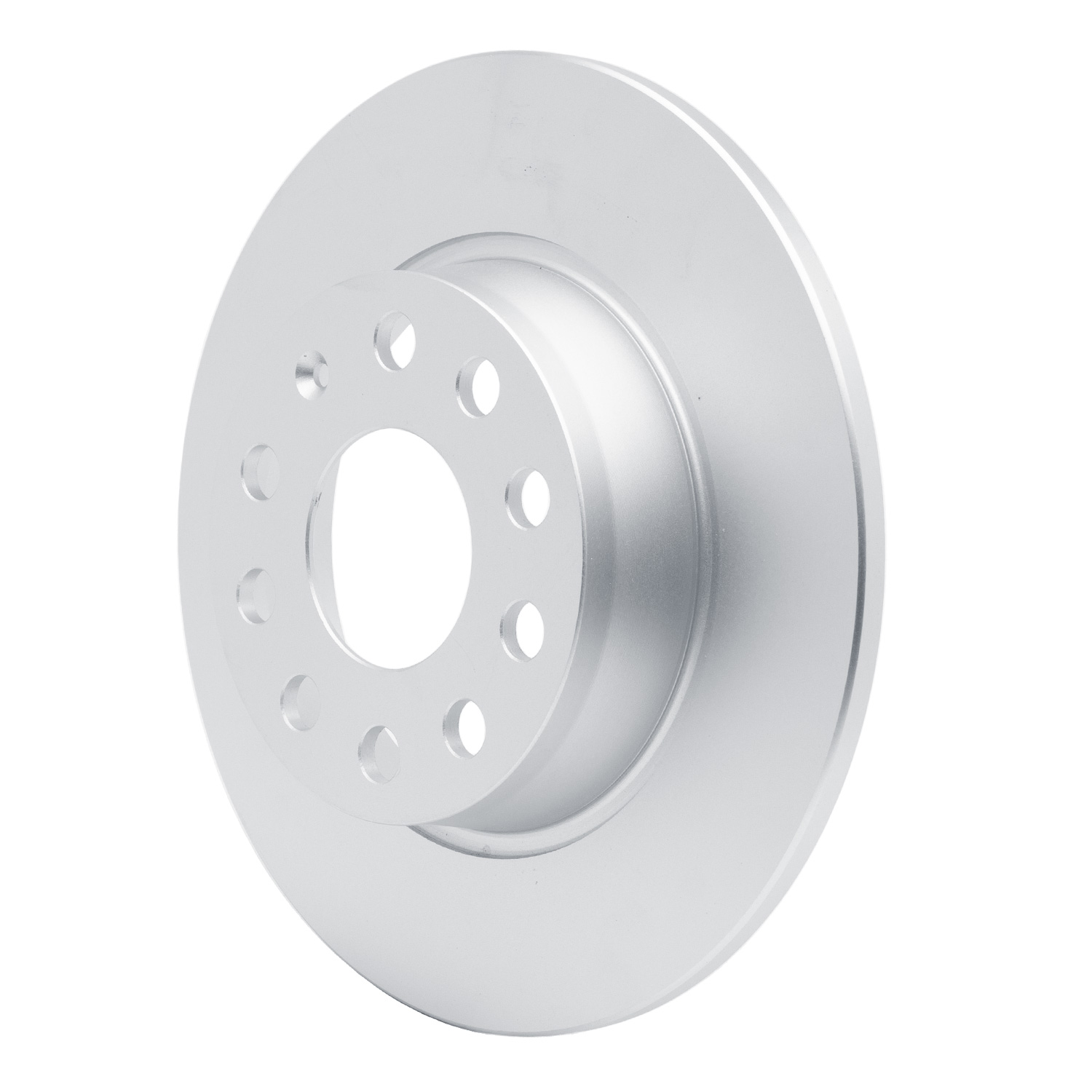

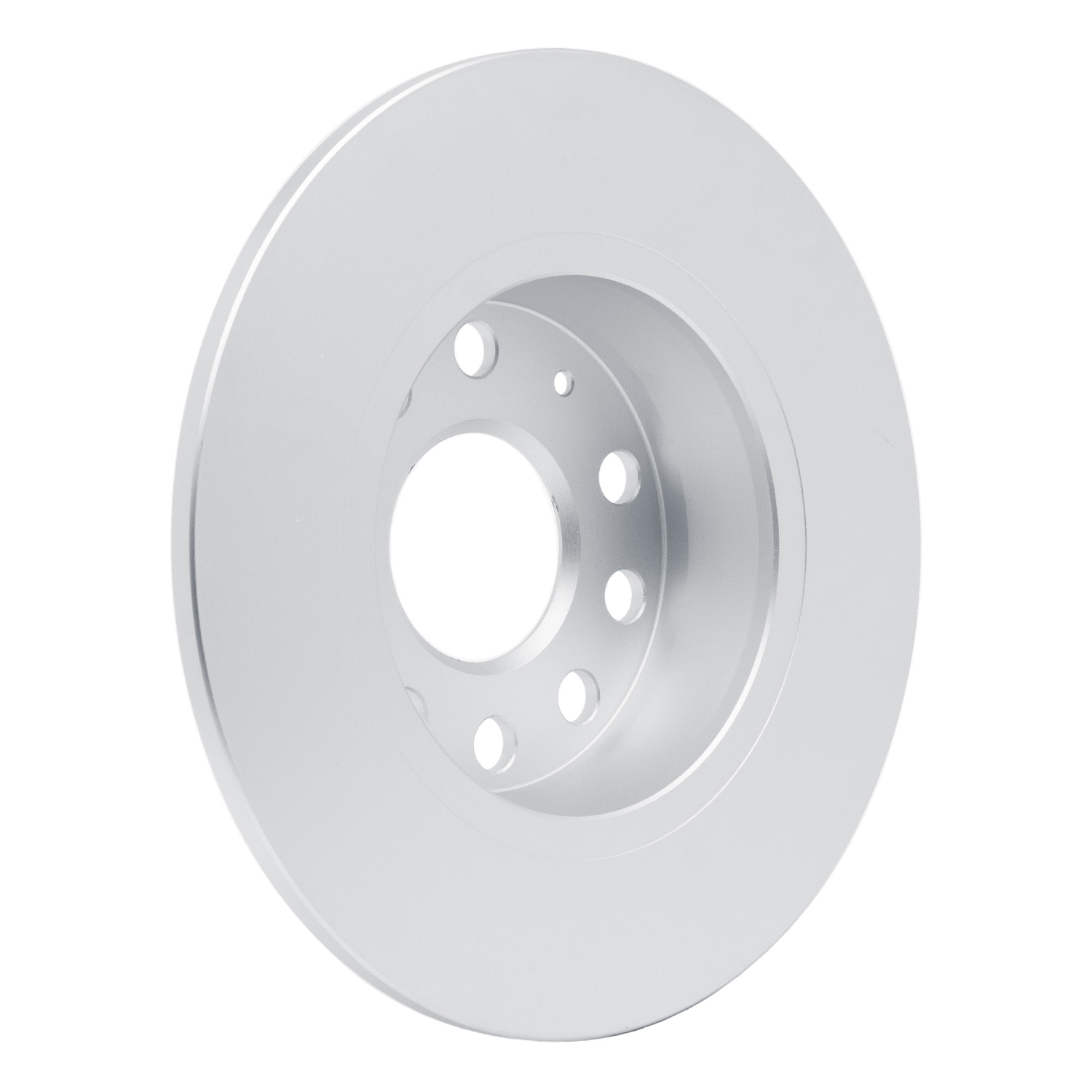

2018 Volkswagen Golf DFC Hi-Carbon Alloy GEOMET Coated Rotor

Part Type:
Disc Brake Rotor
SKU:
900-74031
Axle:
Rear
PCQ:
2

Description

  • DFC Hi- Carbon Alloy GEOMET Coated

Features and Benefits

  • Fined Turned Finish (16 RMS) For Improved Initial Rotor And Pad Break-In
  • Disc Thickness Variation (DTV) - 010 MM Maximum
  • Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
  • 100% Precision Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
  • Geomet® Coated To Provide High-Performance Corrosion Protection
  • Lateral Runout - 050 MM Maximum
  • Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation

Product Specifications

Description Value
Bolt Hole Quantity 5EA
Height 48.2mm
Inside Diameter 65mm
Discard Thickness 8mm
Hat Finish GEOMET Grey
Stud/Lug Hole Quantity 5
Outside Diameter 272mm
Disc Finish Plain
Overall Height 48.2mm
Directional or Non-Directional Brake Surface Non-Directional
Description Value
Nominal Thickness 10mm
Stud/Lug Hole Circle Diameter 112mm
Solid Or Vented Type Rotor Solid
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Bolt Hole Diameter 15.3mm
Stud/Lug Hole Diameter 15.3mm
Rust Resistant Coating Yes
Surface Type Smooth
Center Hole Diameter 65mm
Weight 8.55LB
