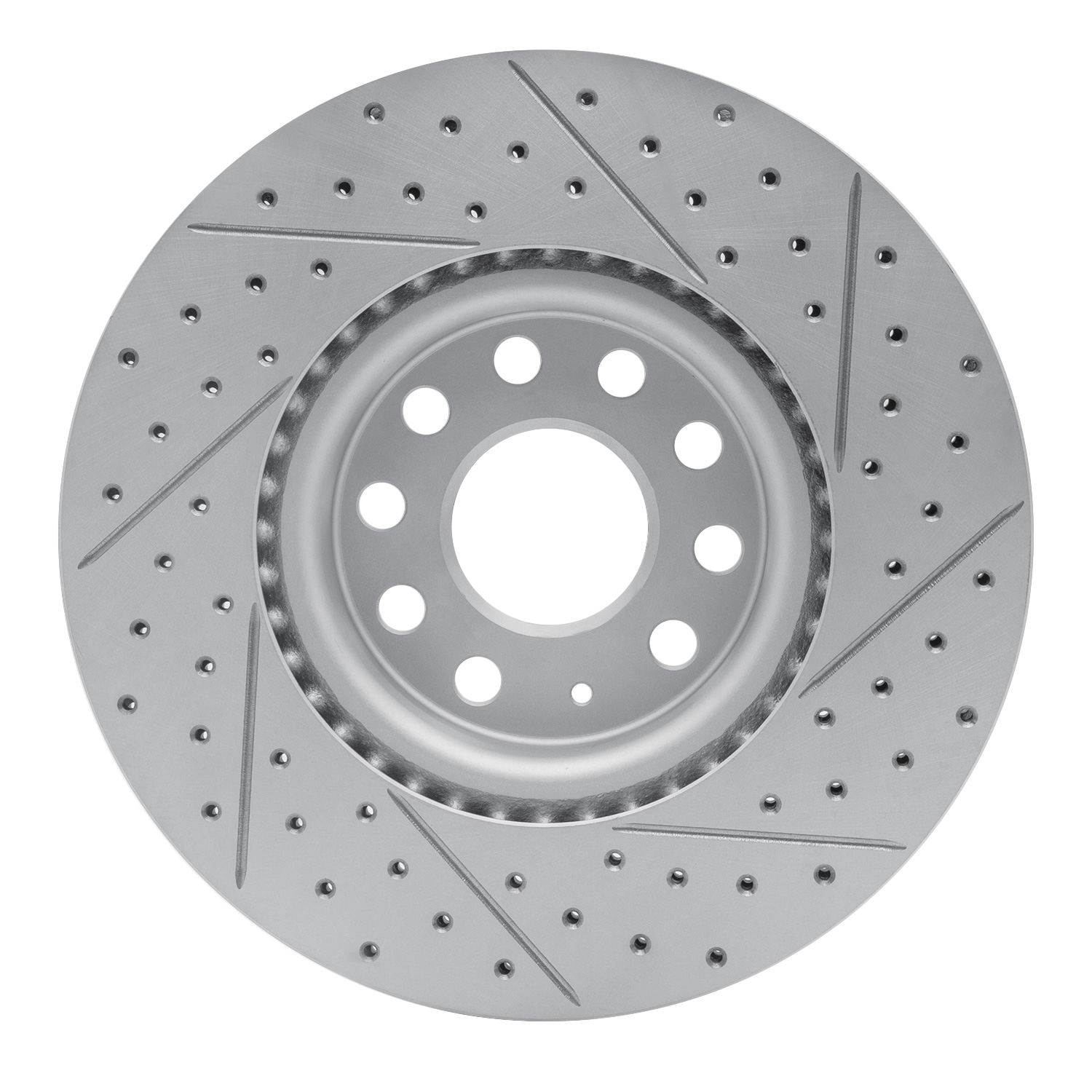

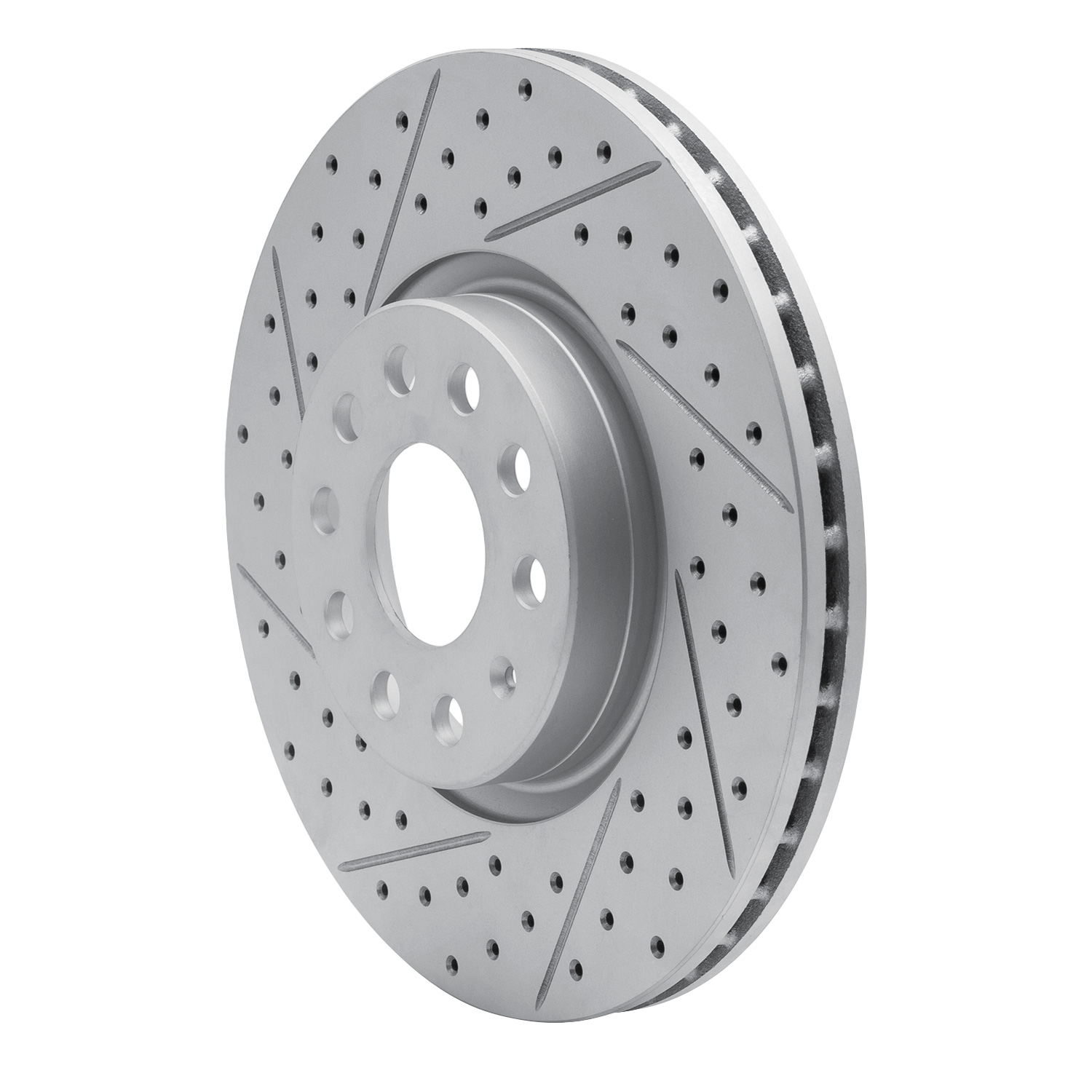

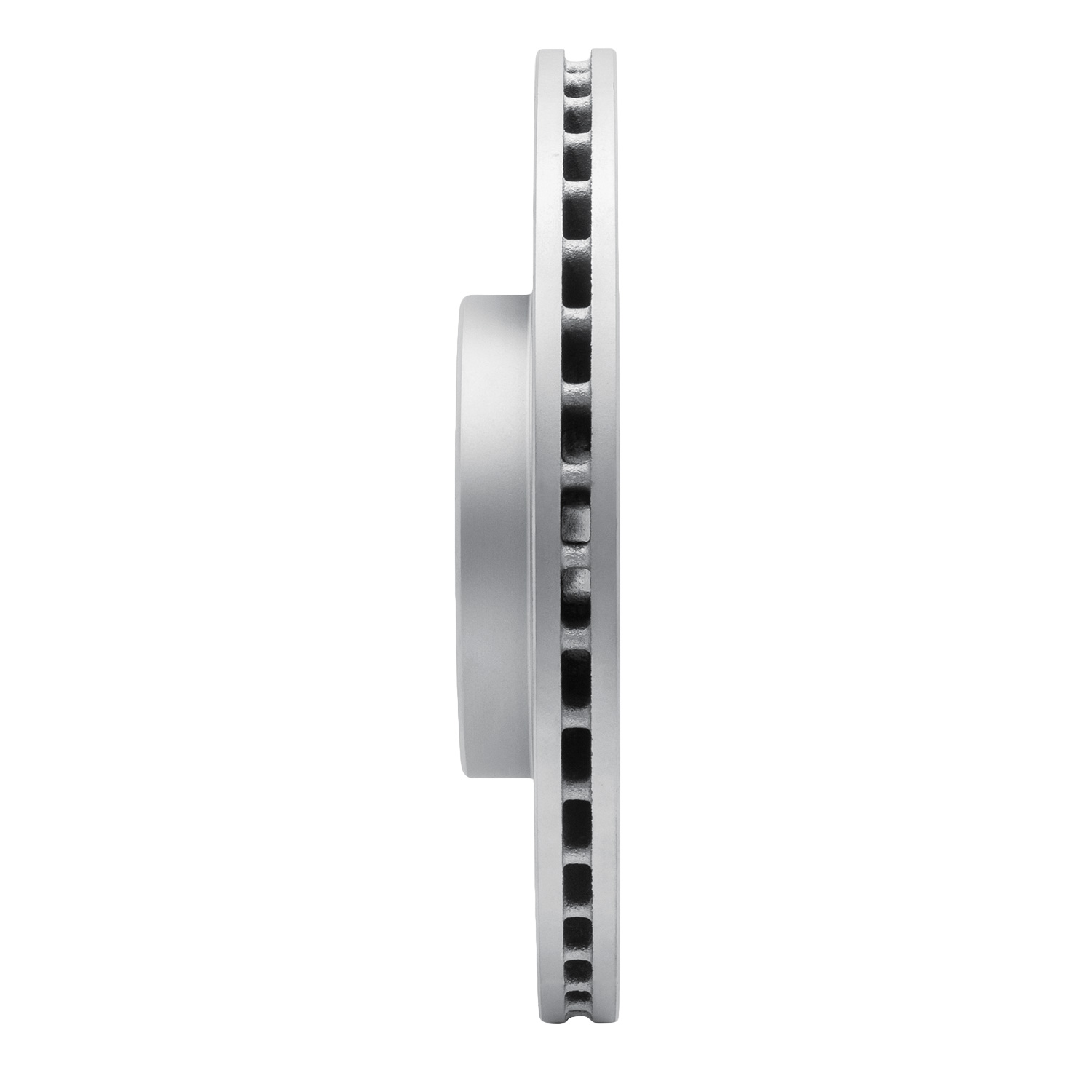

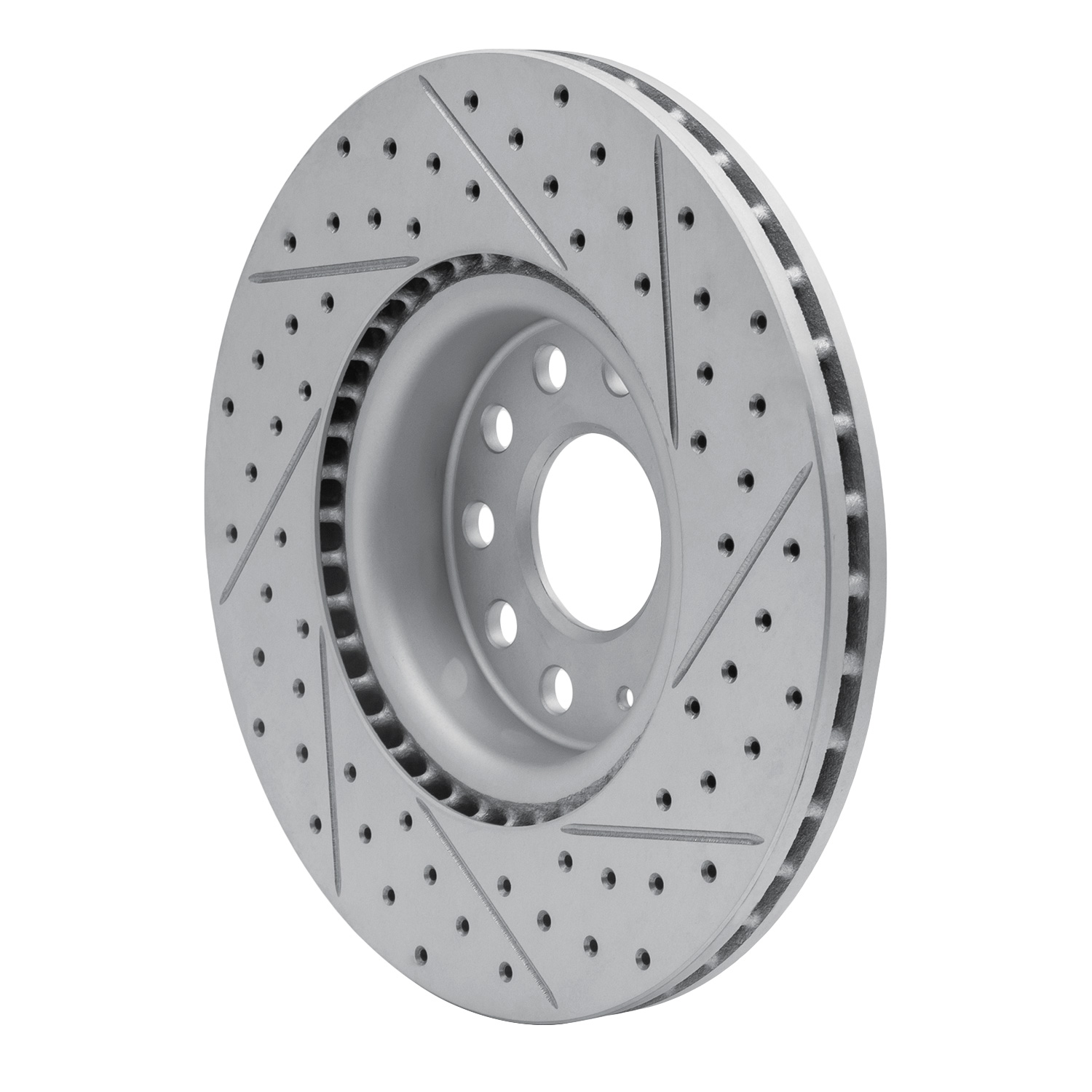

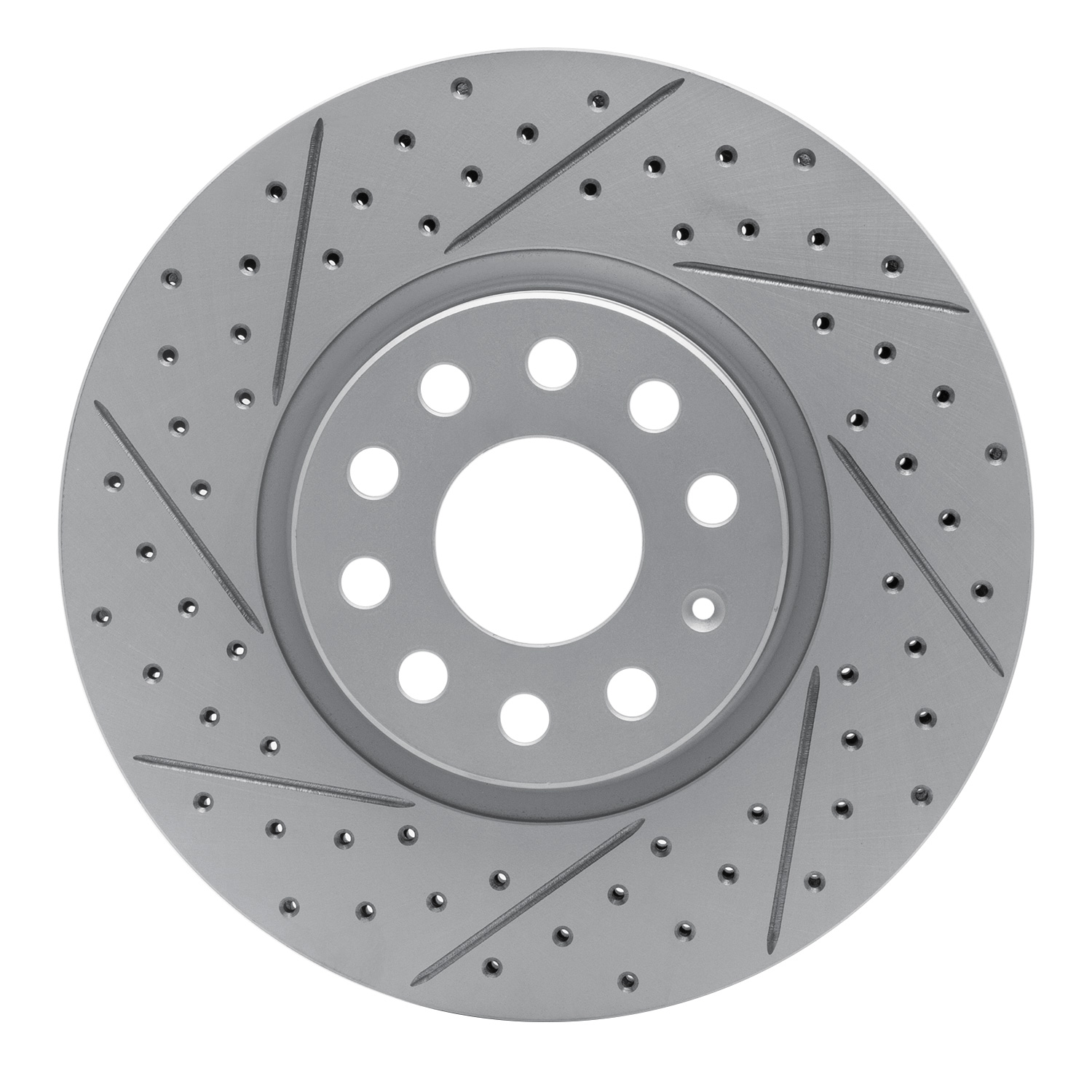

2018 Volkswagen GTI DFC Geoperformance Rotor - Drilled and Slotted
Part Type:
Disc Brake Rotor
SKU:
830-74053L
Axle:
Front Left
Sub model:
Autobahn, S, SE
PCQ:
1
Note:
Base Brakes; 312mm Front Disc
Description
- DFC Geoperformance Rotor - Drilled and Slotted
Product Specifications
| Description | Value |
|---|---|
| Disc Finish | Plain |
| Nominal Thickness | 25mm |
| Bolt Hole Quantity | 5EA |
| Height | 49.9mm |
| Hat Finish | Geospec Silver Grey |
| This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems). | |
| Outside Diameter | 312mm |
| Discard Thickness | 22mm |
| Solid Or Vented Type Rotor | Vented |
| Description | Value |
|---|---|
| Center Hole Diameter | 65mm |
| Rust Resistant Coating | Yes |
| Directional or Non-Directional Brake Surface | Directional |
| Stud/Lug Hole Quantity | 5 |
| Overall Height | 49.6mm |
| Stud/Lug Hole Circle Diameter | 112mm |
| Surface Type | Slotted X Drilled |
| Stud/Lug Hole Diameter | 15.3mm |
| Bolt Circle Diameter | 112mm |
| Weight | 18.9LB |
