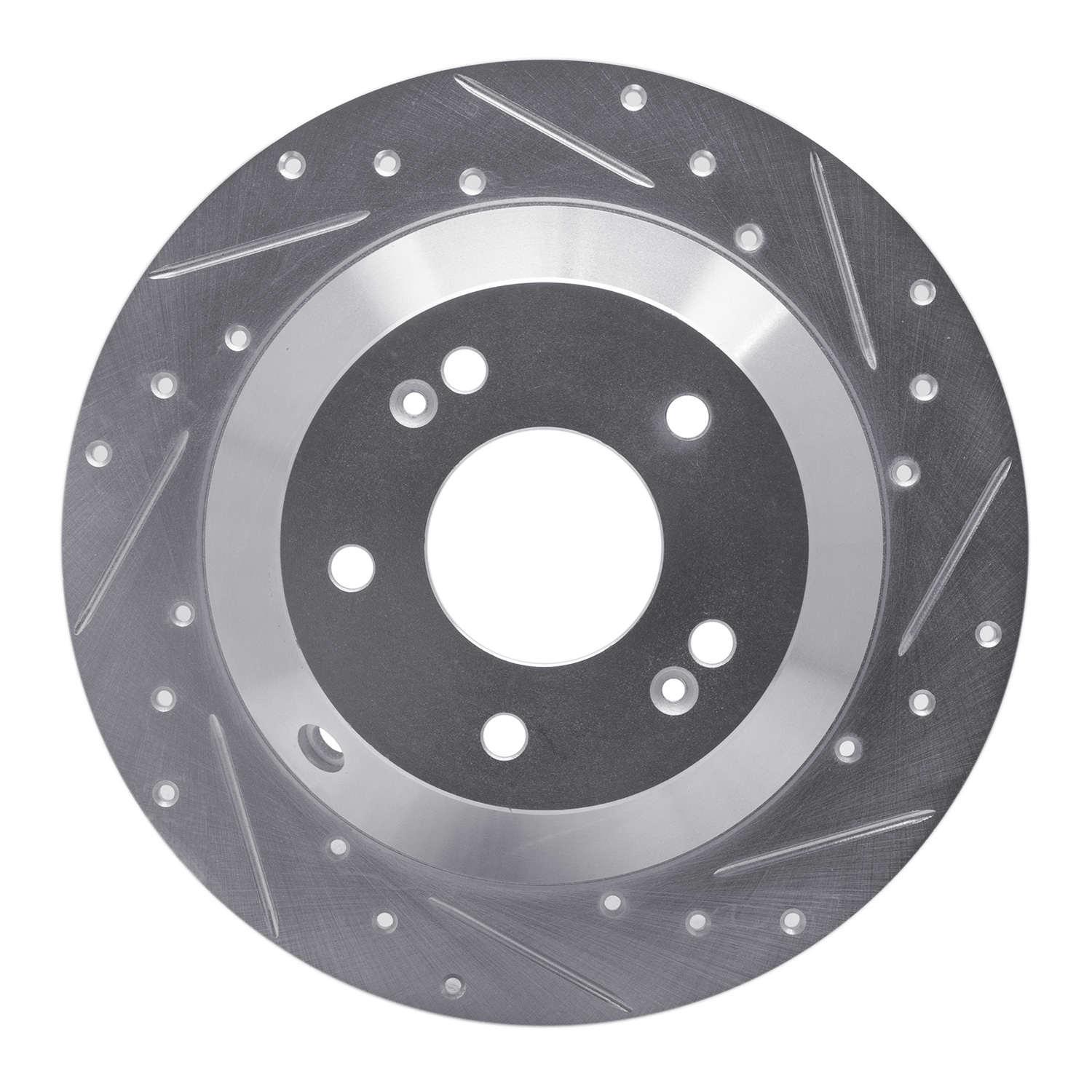

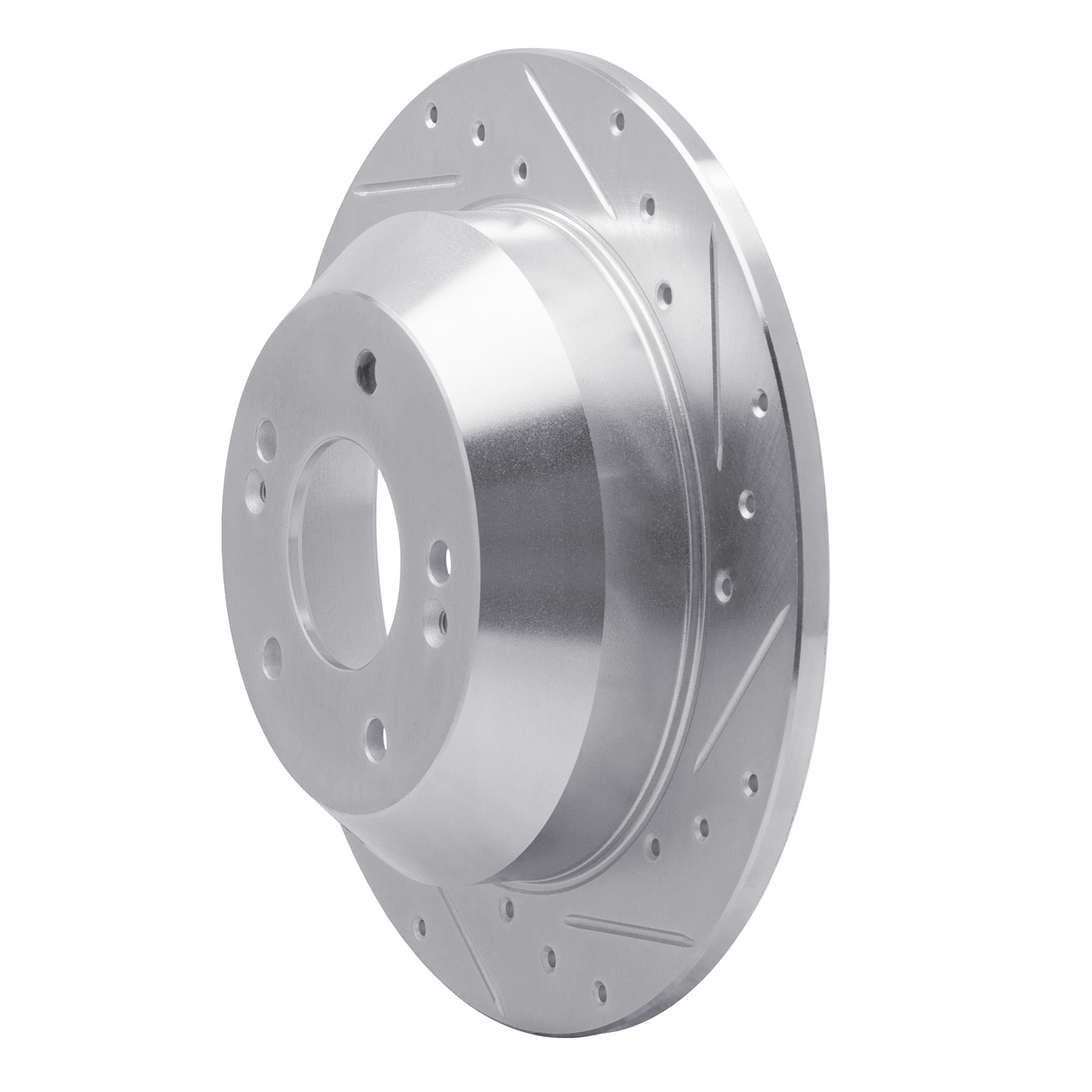

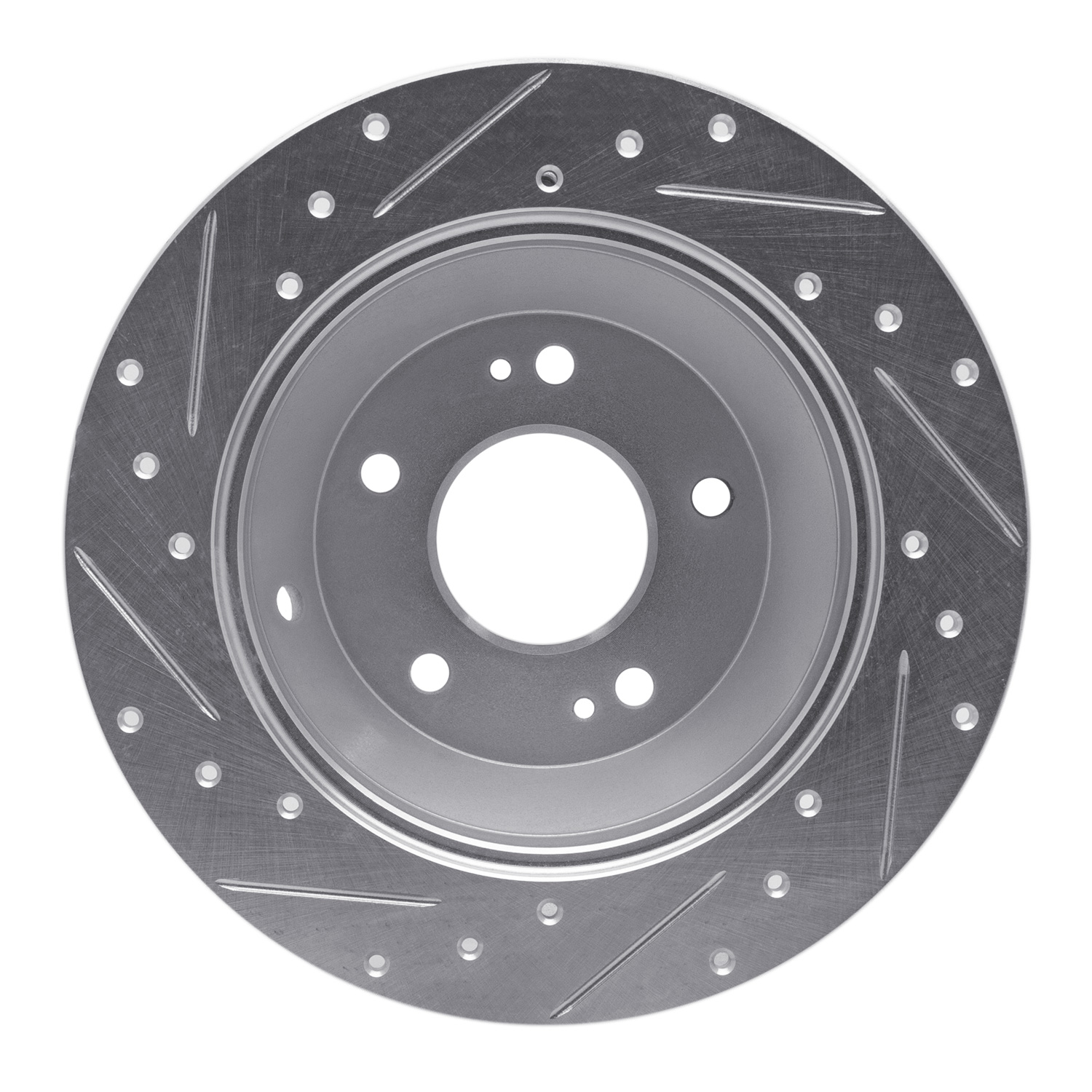

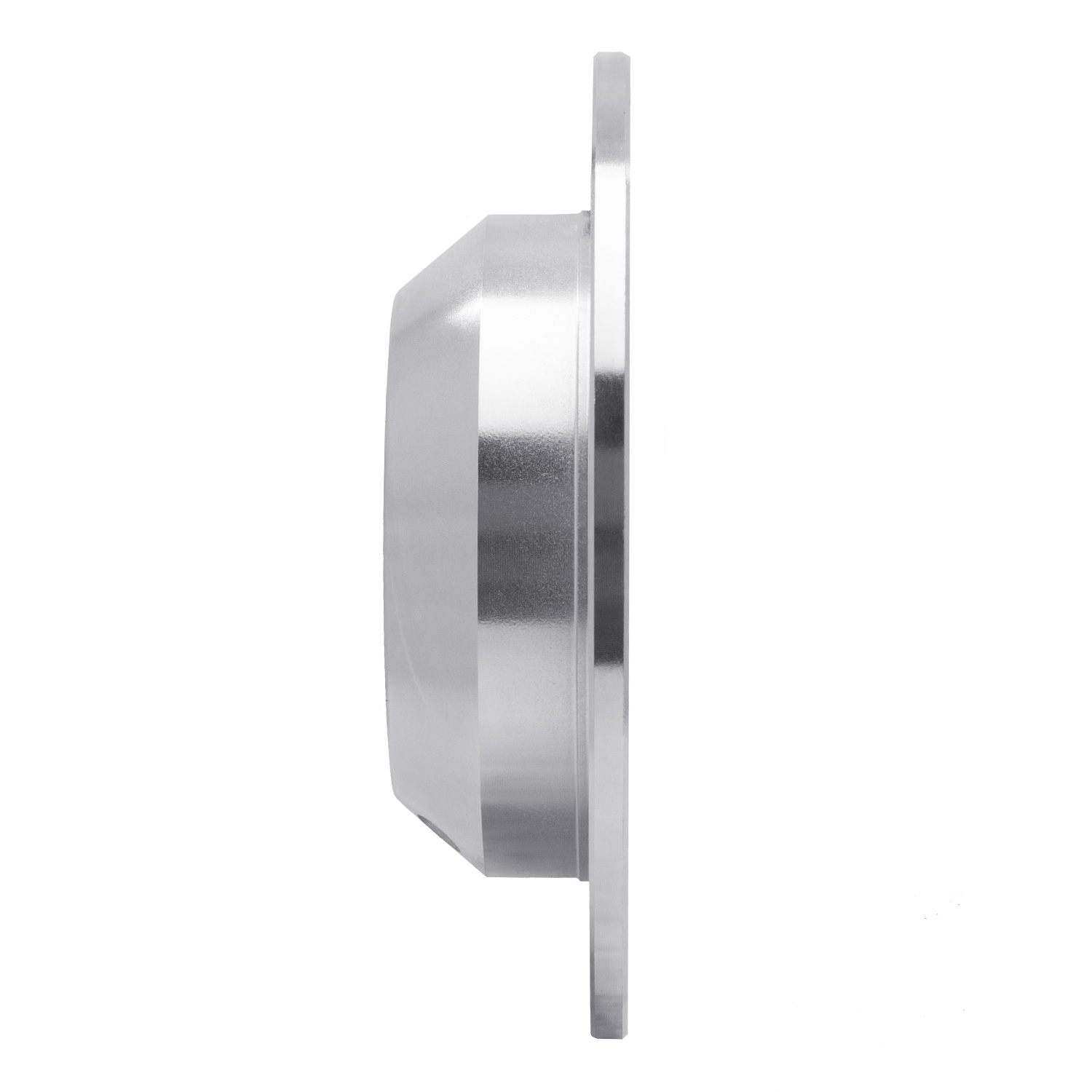

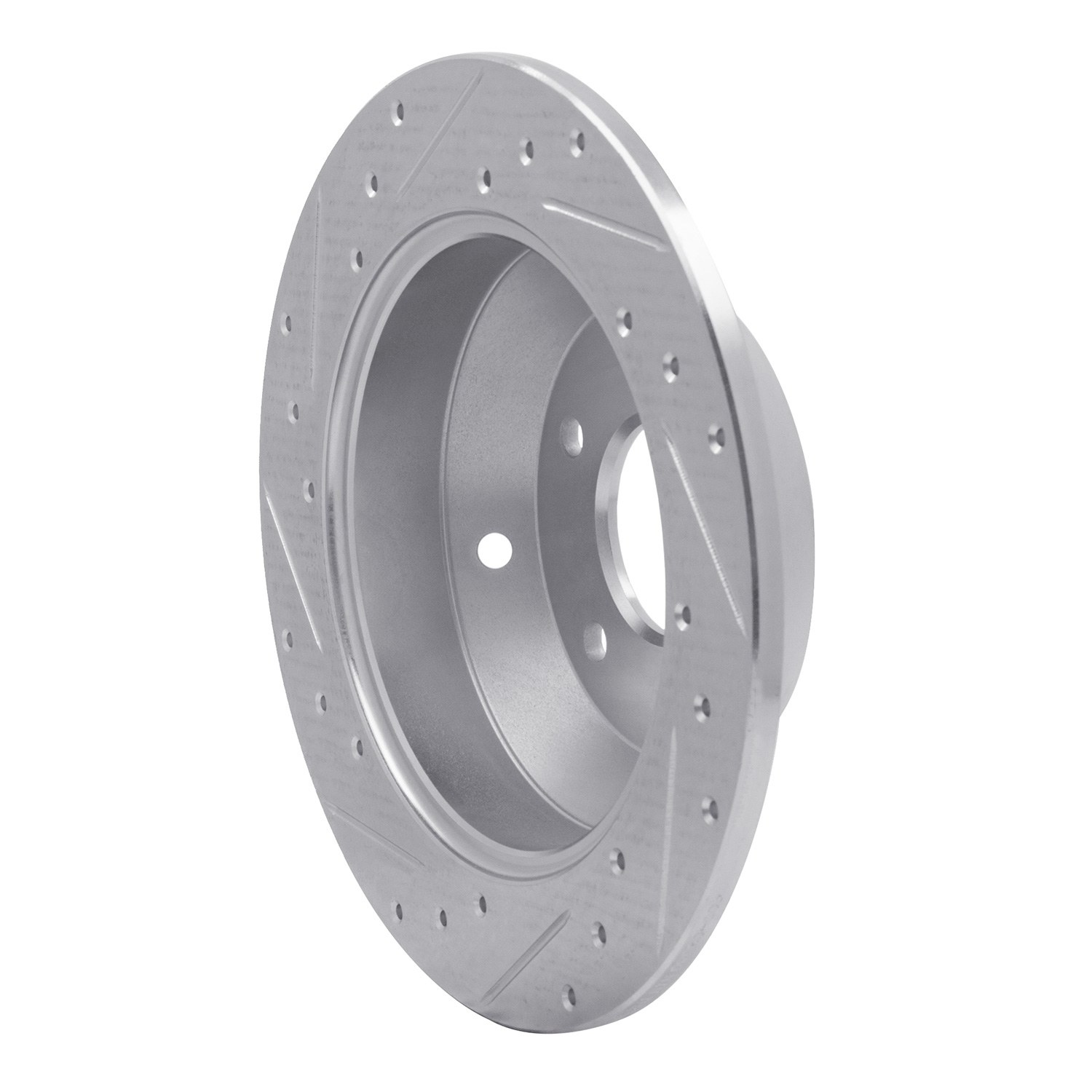

2018 Hyundai Santa Fe XL DFC Brake Rotor - Drilled and Slotted - Silver

Part Type:
Disc Brake Rotor
SKU:
631-03050R
Axle:
Rear Right
PCQ:
1

Description

  • DFC Brake Rotor - Drilled and Slotted - Silver

Features and Benefits

  • Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
  • New In Box, Ready To Install, No Modifications Required
  • 100% Precision Cut And Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
  • Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
  • CNC-Machined To The Tightest Tolerances
  • Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
  • Non-Directional Finish To Promote Faster Break-In And Smoother Stops
  • Quality Tested To Ensure Long-Lasting Performance
  • Zinc Plated Silver For Rust Protection On The Rotor Hub, Vents, And Edge

Product Specifications

Description Value
Outside Diameter 302mm
Bolt Hole Diameter 12.5mm
Bolt Hole Quantity 5EA
Height 71.5mm
Nominal Thickness 11mm
Rust Resistant Coating Yes
Surface Type Slotted X Drilled
Discard Thickness 9.4mm
Overall Height 71.5mm
Disc Finish Plain
Description Value
Solid Or Vented Type Rotor Solid
Hat Finish Zinc Silver
Stud/Lug Hole Quantity 5
Center Hole Diameter 69mm
Bolt Circle Diameter 114.3mm
Stud/Lug Hole Diameter 12.5mm
Directional or Non-Directional Brake Surface Directional
Stud/Lug Hole Circle Diameter 114.3mm
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Weight 13.75LB
