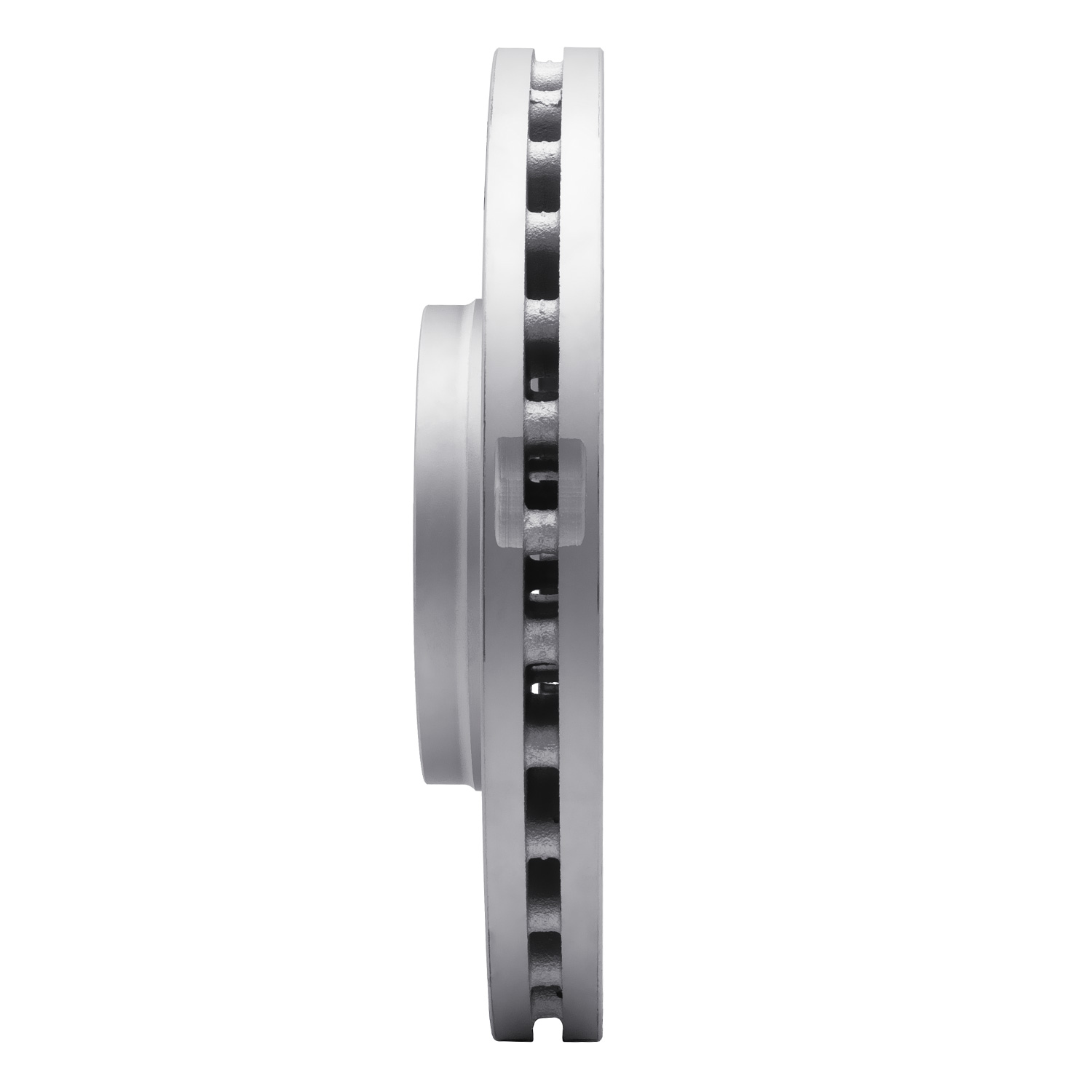

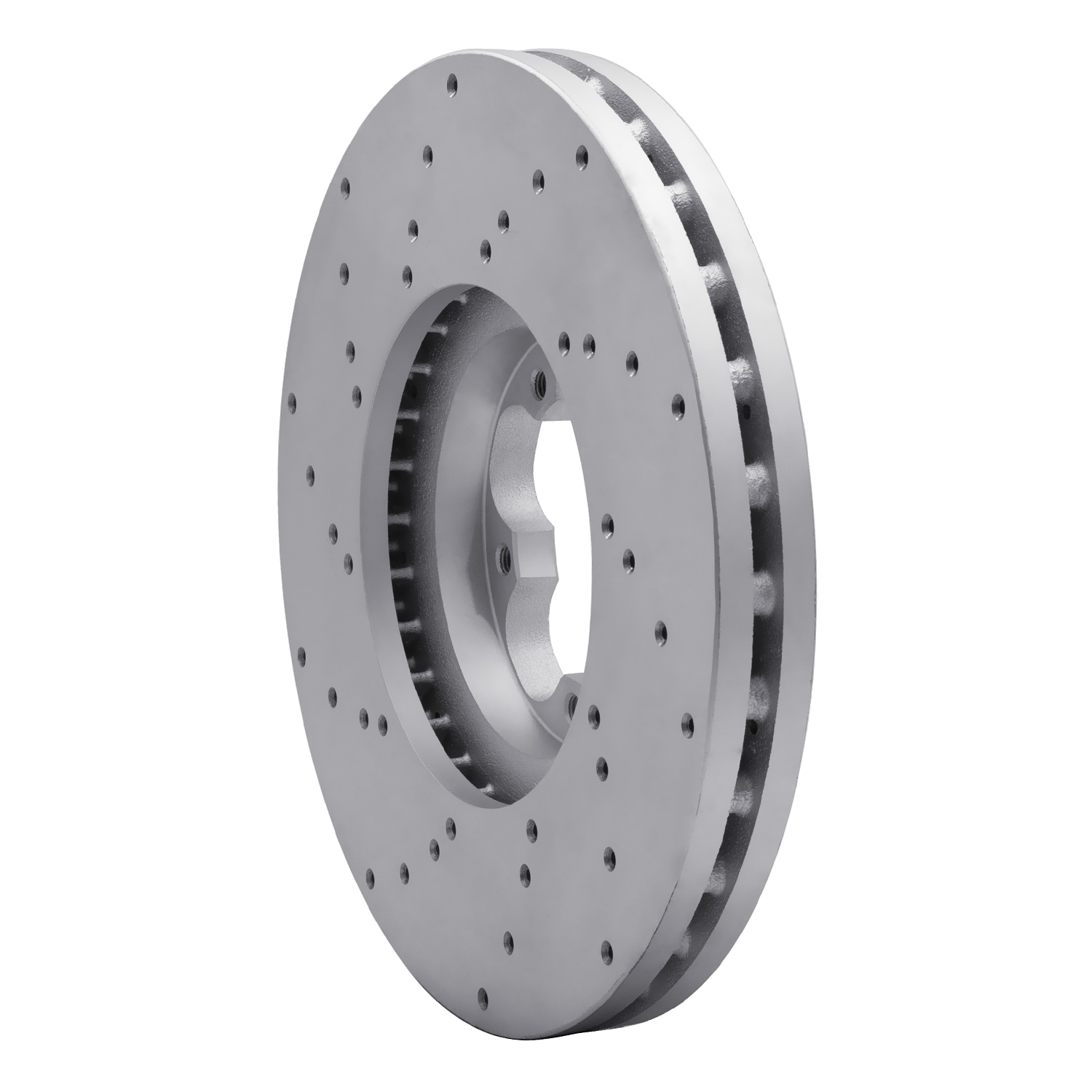

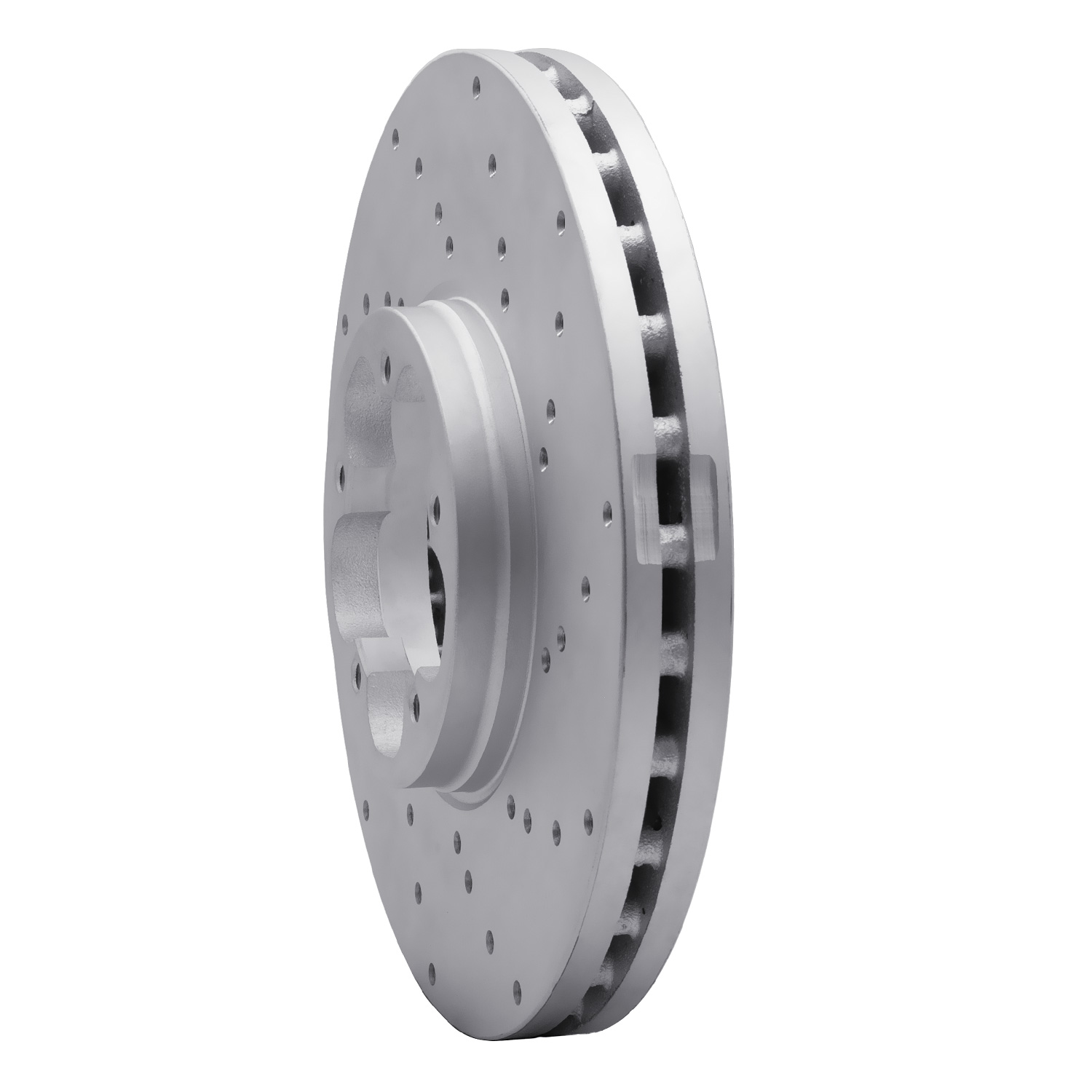

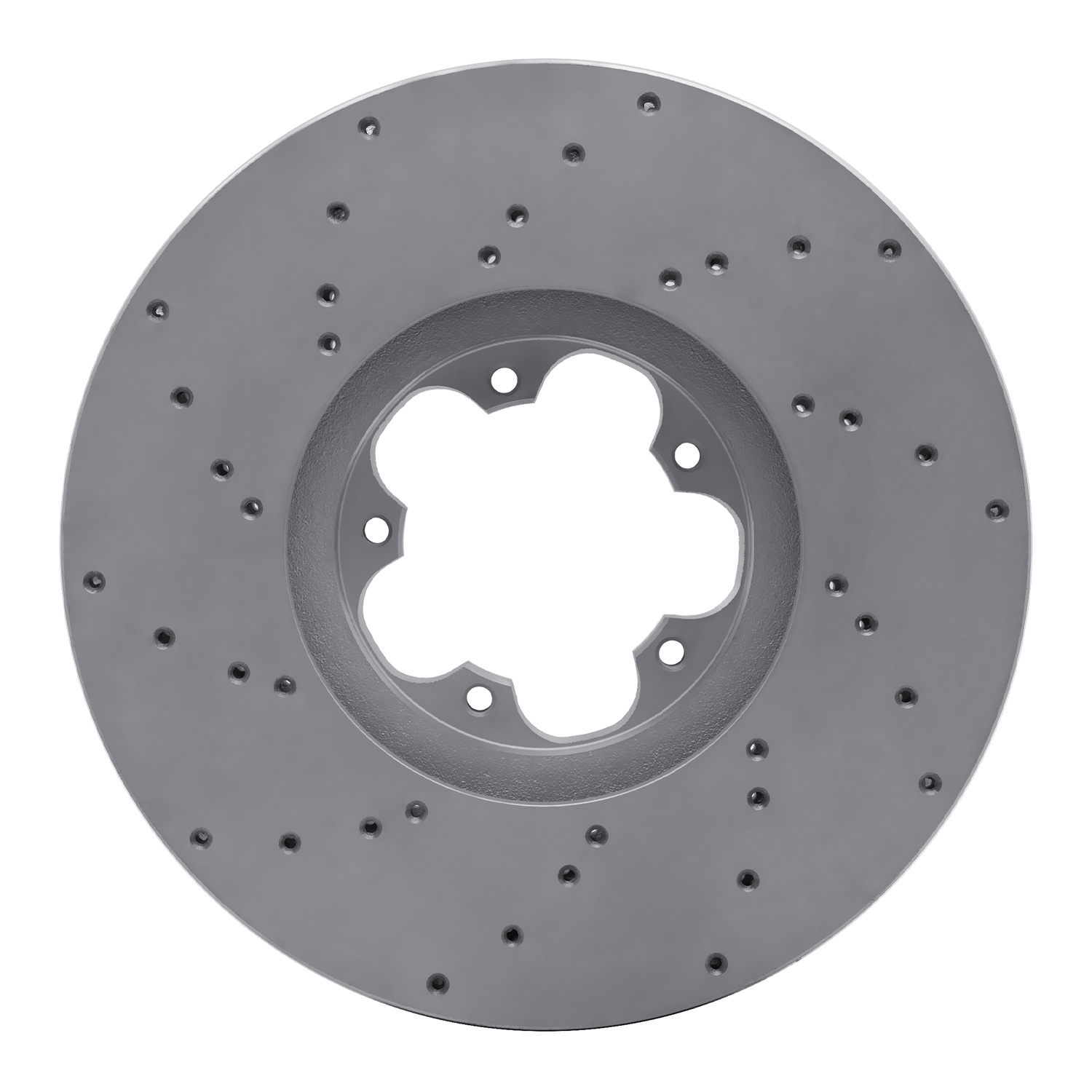

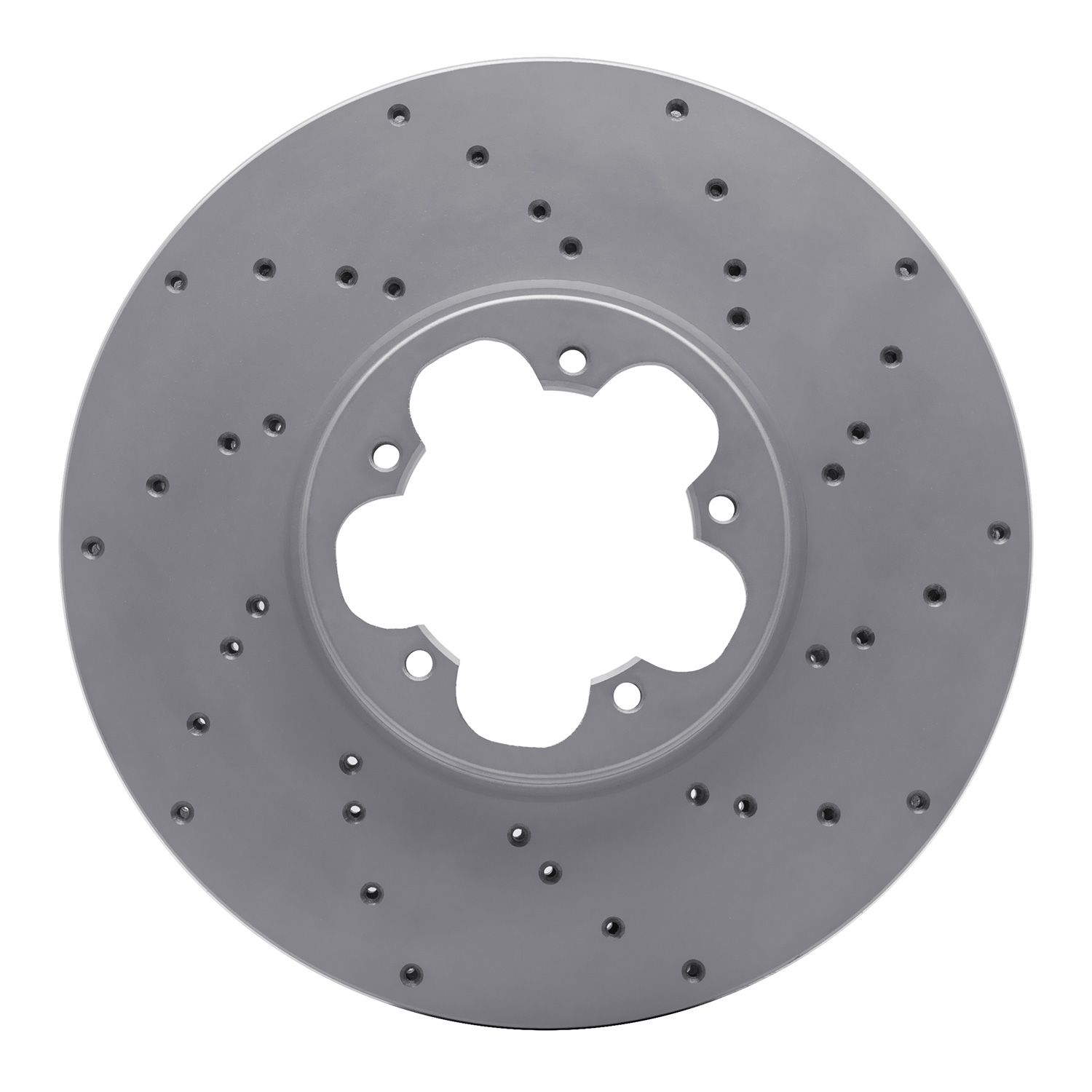

2018 Ford Transit-150 DFC Geoperformance Rotor - Drilled
Part Type:
Disc Brake Rotor
SKU:
820-54232R
Axle:
Front Right
PCQ:
1
Product Specifications
| Description | Value |
|---|---|
| Discard Thickness | 30mm |
| Bolt Hole Diameter | 10x1.5mm |
| Outside Diameter | 308mm |
| Bolt Hole Quantity | 5EA |
| Nominal Thickness | 33mm |
| Overall Height | 55.5mm |
| Height | 55.5mm |
| Hat Finish | Geospec Silver Grey |
| Surface Type | X Drilled |
| Description | Value |
|---|---|
| Directional or Non-Directional Brake Surface | Directional |
| Disc Finish | Plain |
| Rust Resistant Coating | Yes |
| This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems). | |
| Center Hole Diameter | 93.15mm |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Circle Diameter | 111.5mm |
| Bolt Circle Diameter | 111.5mm |
| Weight | 25.5LB |
