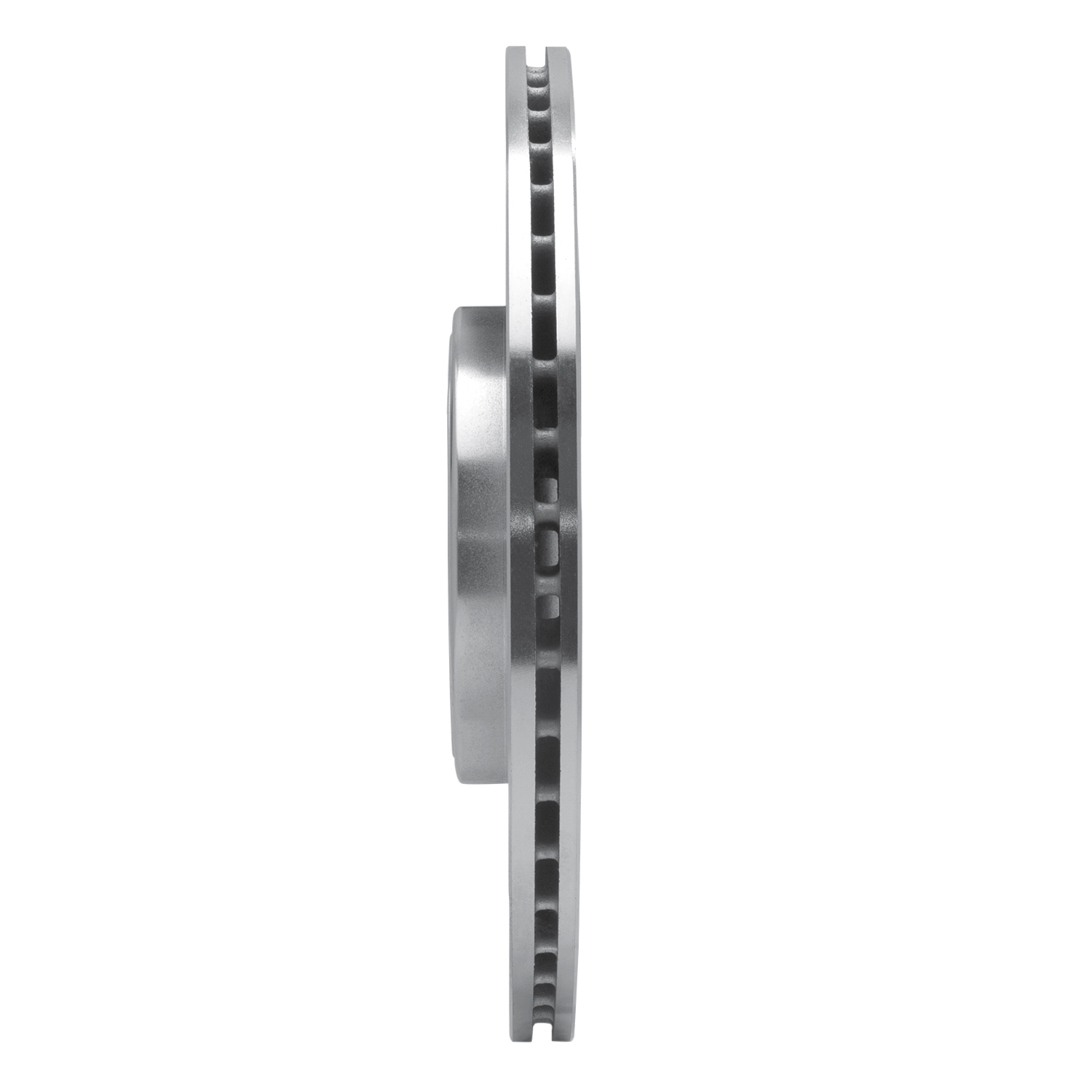

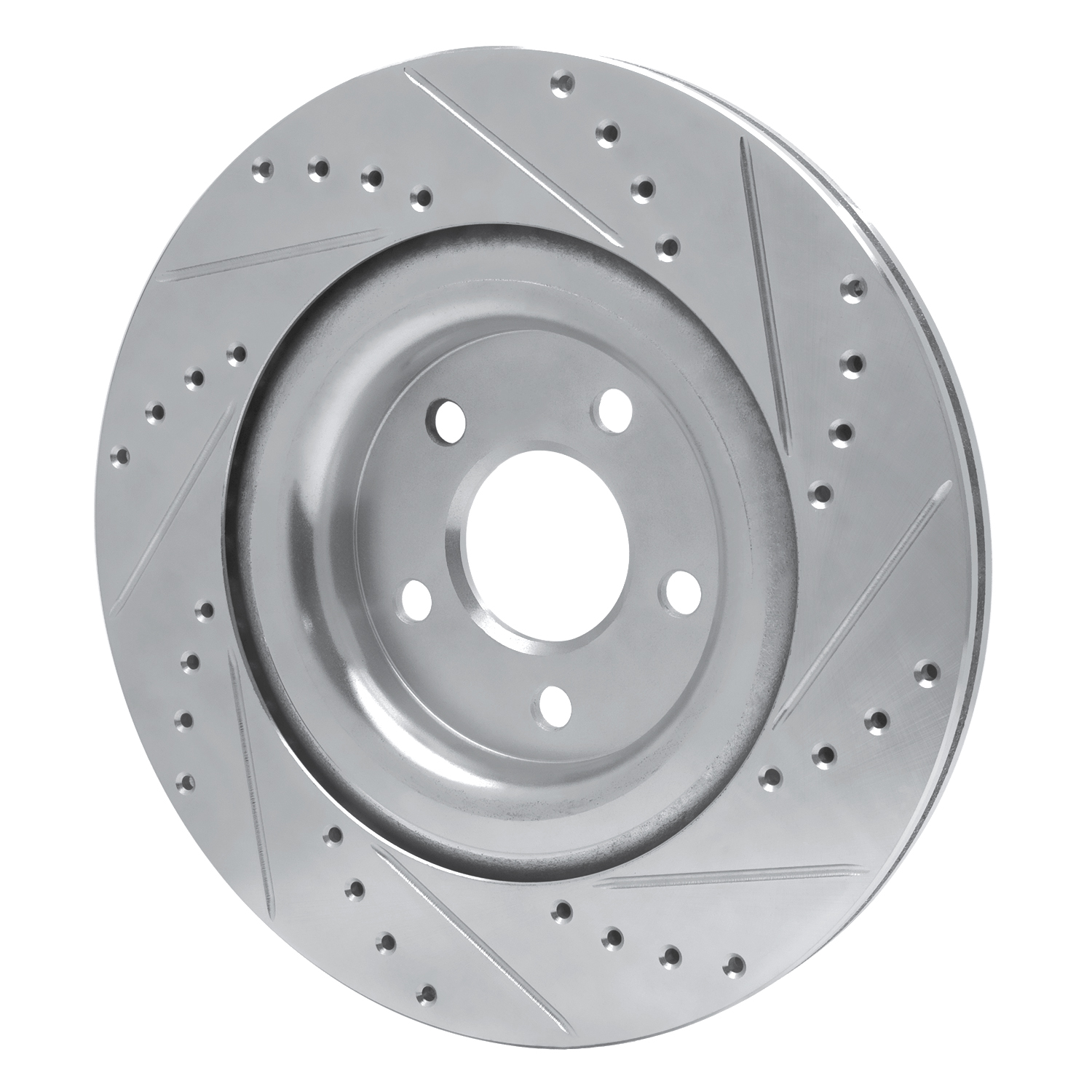

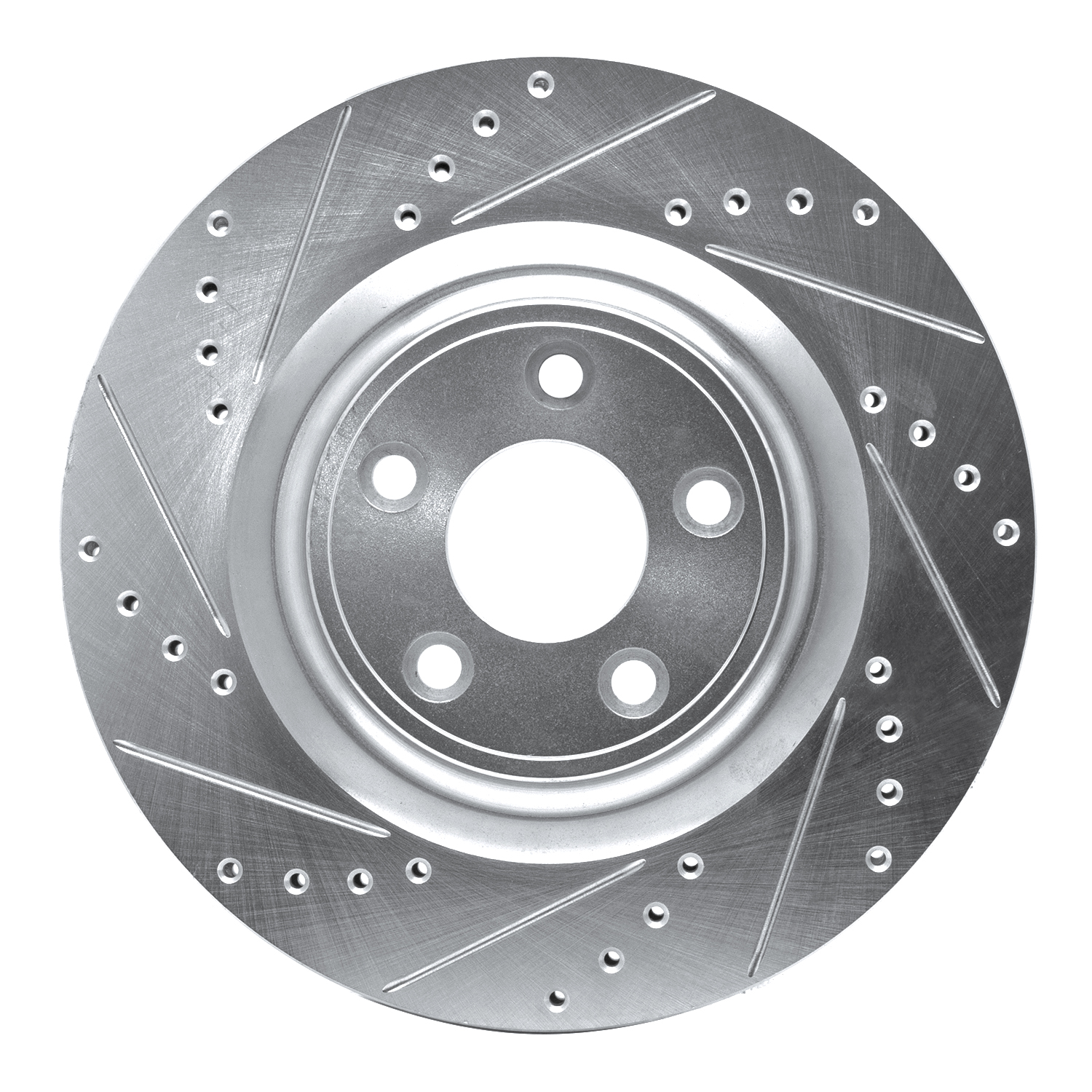

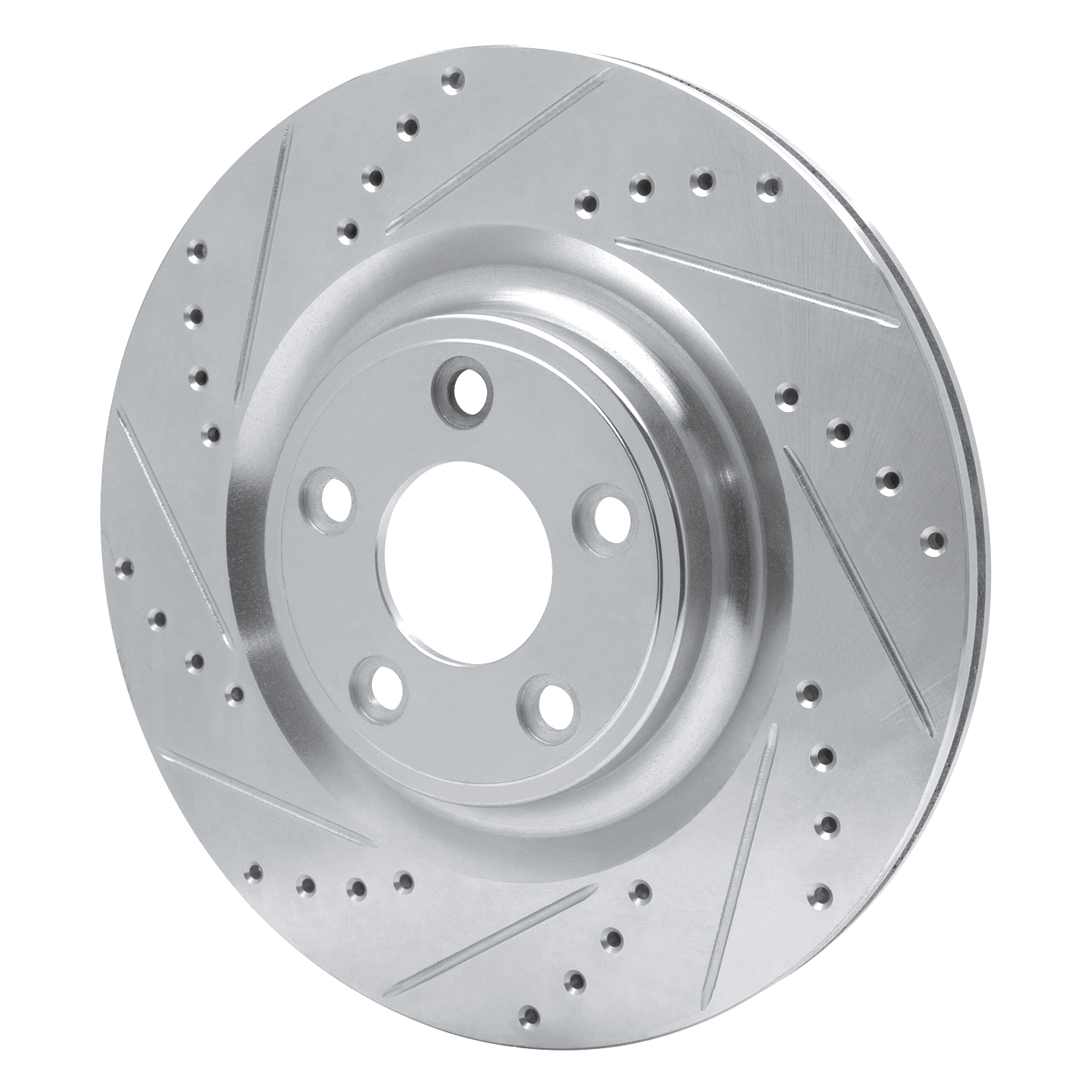

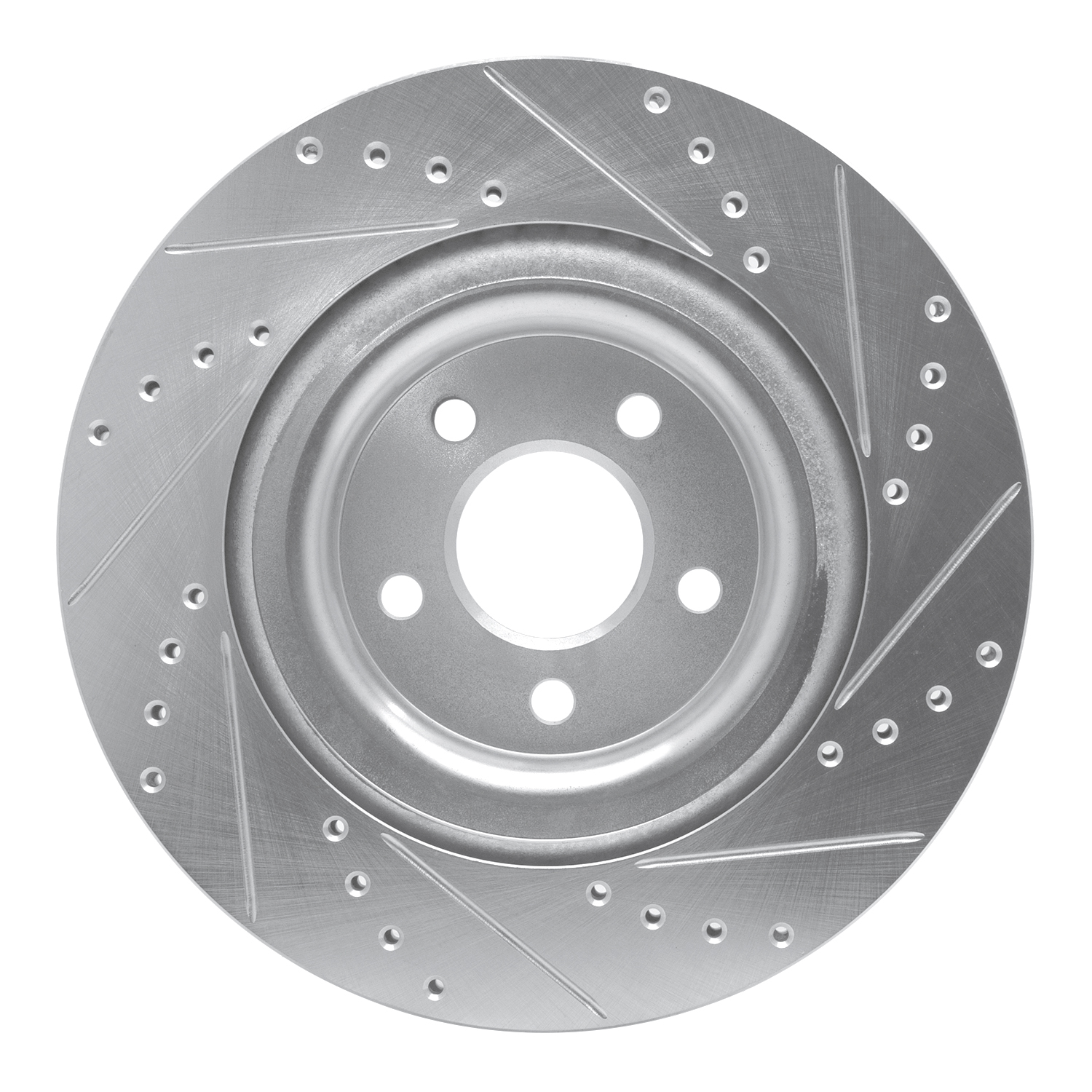

2017 Jaguar F-Type DFC Brake Rotor - Drilled and Slotted - Silver
Part Type:
Disc Brake Rotor
SKU:
631-20028L
Axle:
Rear Left
Sub model:
Premium, S
PCQ:
1
Description
- DFC Brake Rotor - Drilled and Slotted - Silver
Features and Benefits
- New In Box, Ready To Install, No Modifications Required
- 100% Precision Cut And Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
- CNC-Machined To The Tightest Tolerances
- Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
- Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
- Non-Directional Finish To Promote Faster Break-In And Smoother Stops
- Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
- Quality Tested To Ensure Long-Lasting Performance
- Zinc Plated Silver For Rust Protection On The Rotor Hub, Vents, And Edge
Product Specifications
| Description | Value |
|---|---|
| Outside Diameter | 325mm |
| Nominal Thickness | 20mm |
| Bolt Hole Quantity | 5EA |
| Height | 38.25mm |
| Discard Thickness | 18mm |
| Rust Resistant Coating | Yes |
| Bolt Hole Diameter | 14.1mm |
| Disc Finish | Plain |
| Overall Height | 38.25mm |
| Description | Value |
|---|---|
| Hat Finish | Zinc Silver |
| Surface Type | Slotted X Drilled |
| Stud/Lug Hole Diameter | 14.1mm |
| Solid Or Vented Type Rotor | Vented |
| Directional or Non-Directional Brake Surface | Directional |
| Center Hole Diameter | 64.5mm |
| Bolt Circle Diameter | 108mm |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Circle Diameter | 108mm |
| Weight | 16.6LB |
