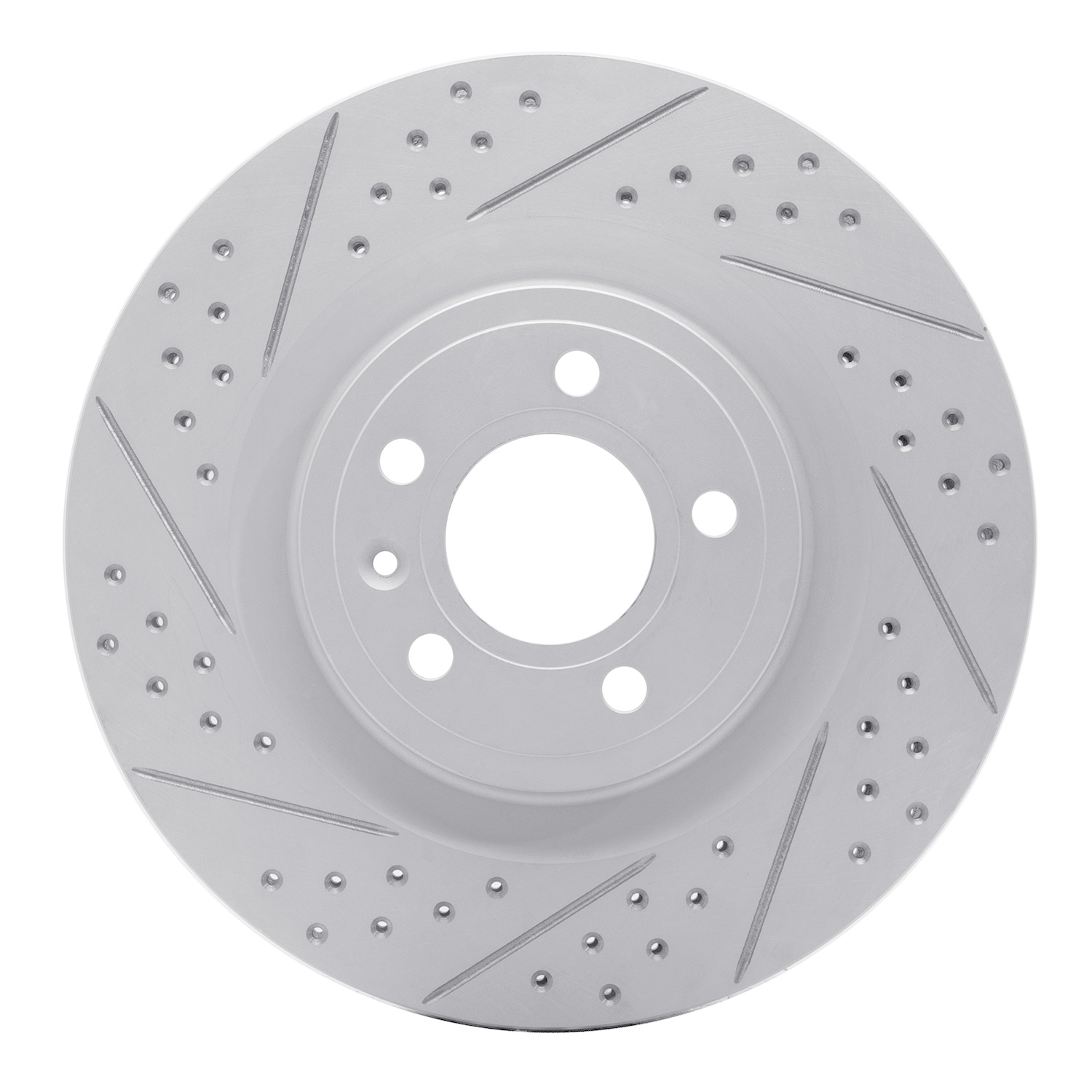

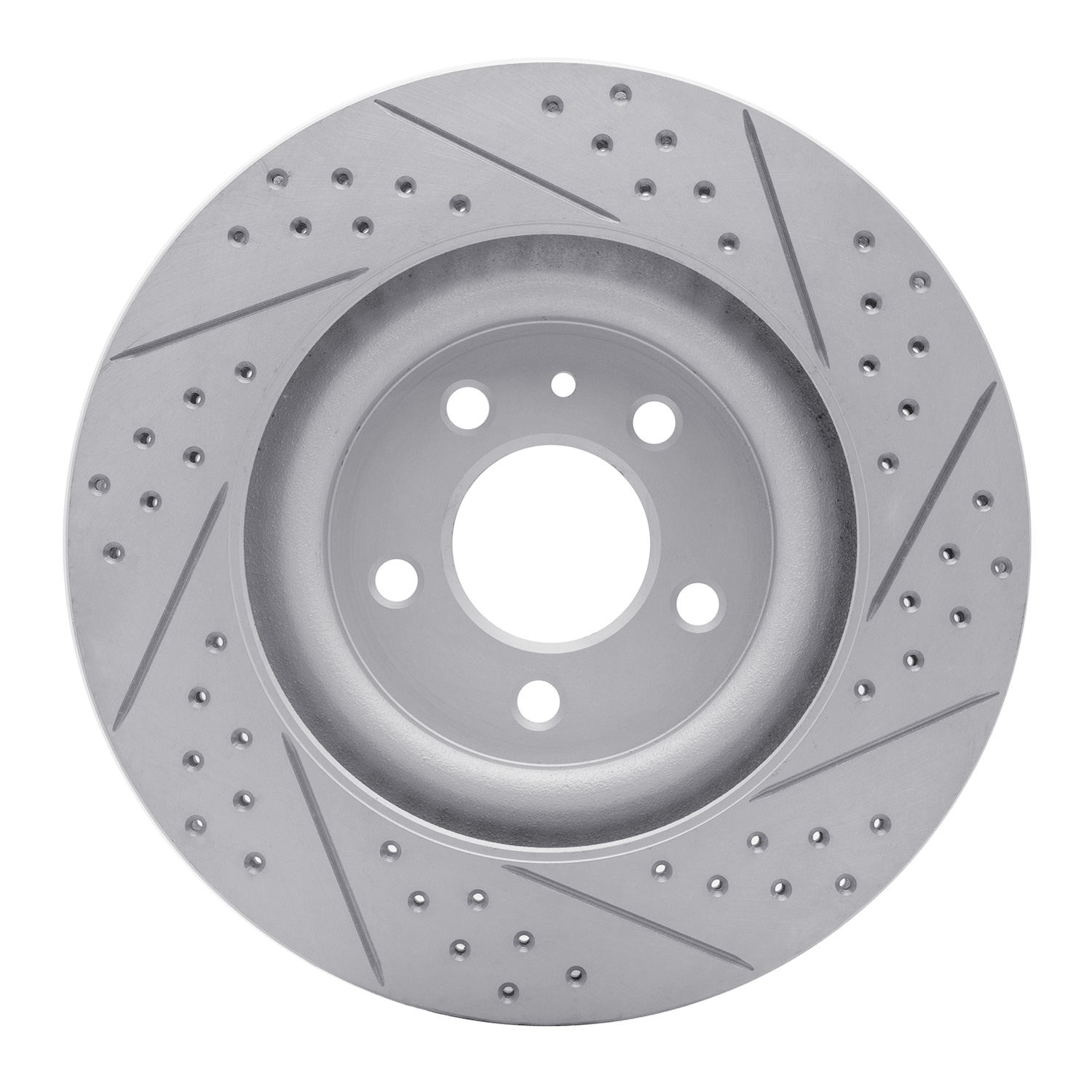

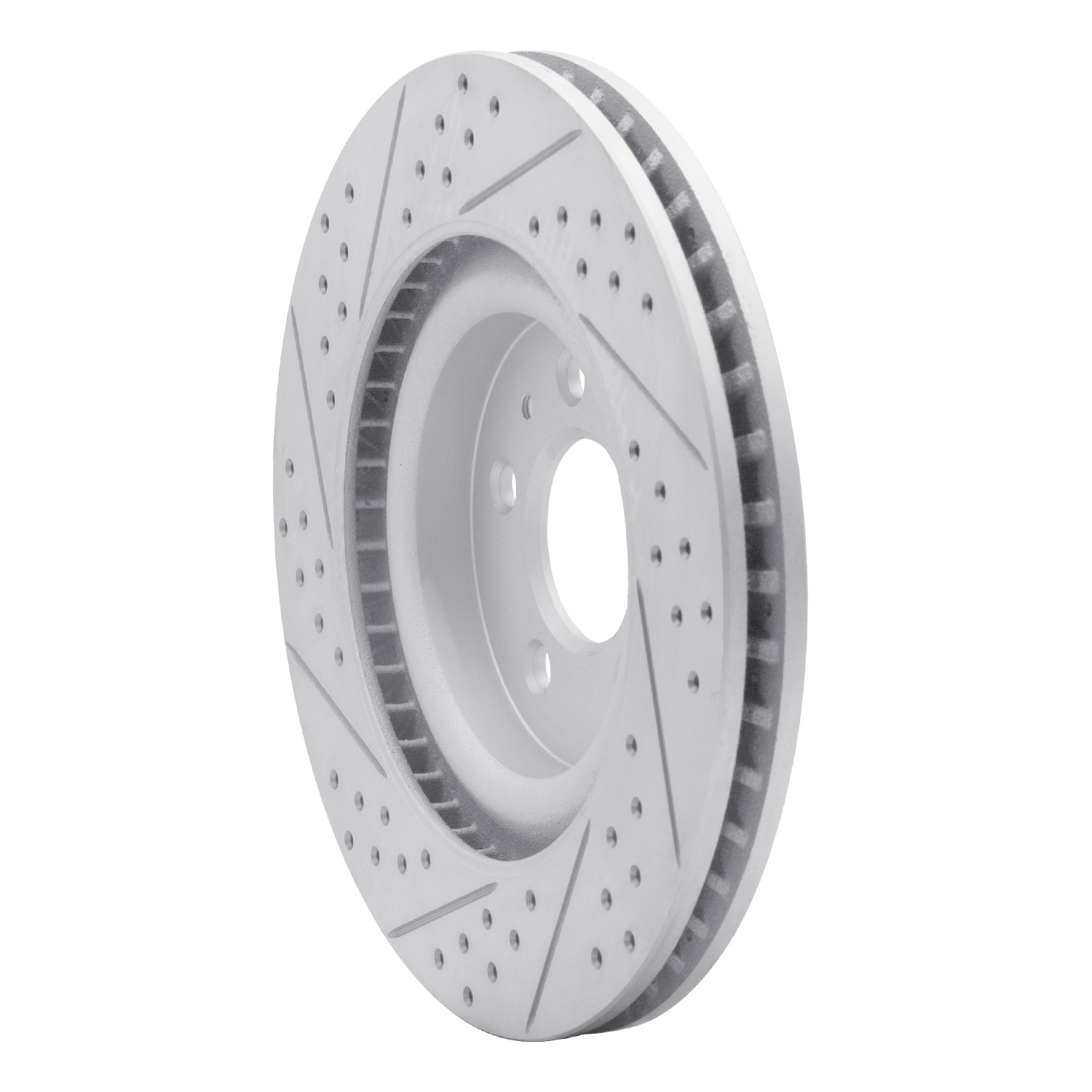

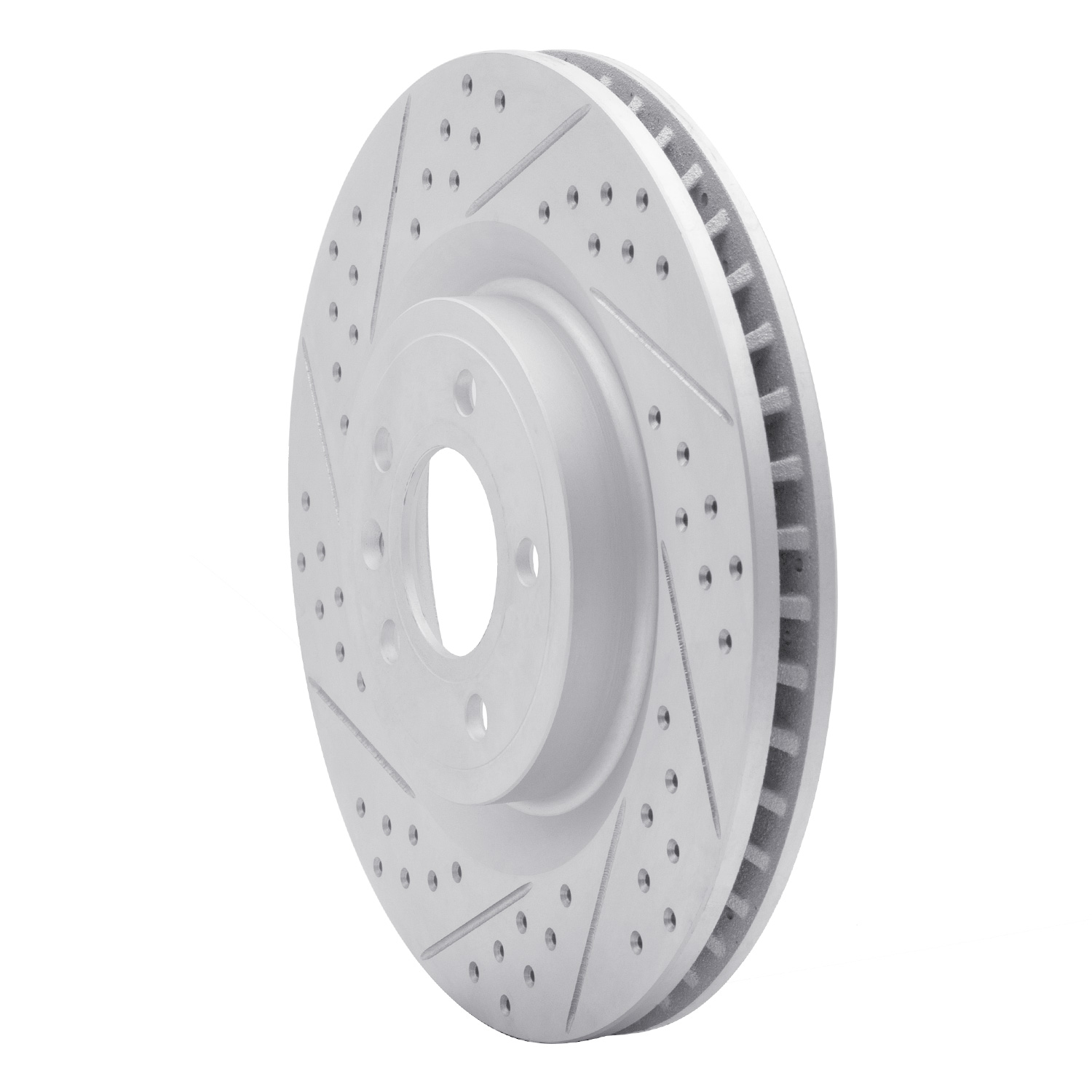

2012 Ford Mustang DFC Geoperformance Rotor - Drilled and Slotted

Part Type:
Disc Brake Rotor
SKU:
830-54065L
Axle:
Front Left
Sub model:
GT
PCQ:
1
Note:

Standard Brakes

Description

  • DFC Geoperformance Rotor - Drilled and Slotted

Product Specifications

Description Value
Height 48.1mm
Bolt Hole Quantity 5EA
Discard Thickness 28.4mm
Outside Diameter 336mm
Bolt Hole Diameter 15.1mm
Overall Height 48.1mm
Hat Finish Geospec Silver Grey
Nominal Thickness 30mm
Disc Finish Plain
Directional or Non-Directional Brake Surface Directional
Description Value
Rust Resistant Coating Yes
Stud/Lug Hole Diameter 15.1mm
Surface Type Slotted X Drilled
Stud/Lug Hole Circle Diameter 114.3mm
Stud/Lug Hole Quantity 5
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Solid Or Vented Type Rotor Vented
Bolt Circle Diameter 114.3mm
Center Hole Diameter 71.1mm
Weight 21.3LB
