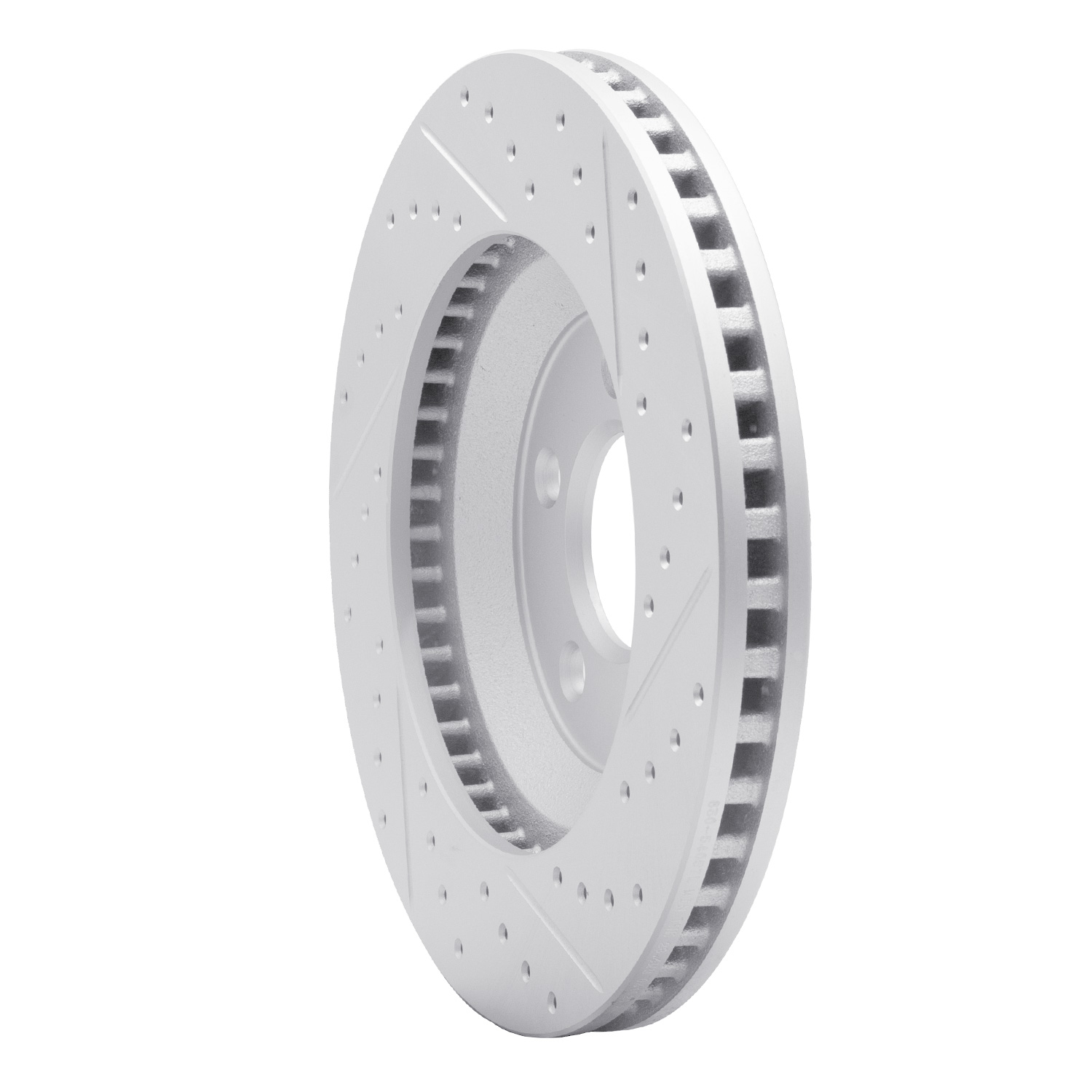

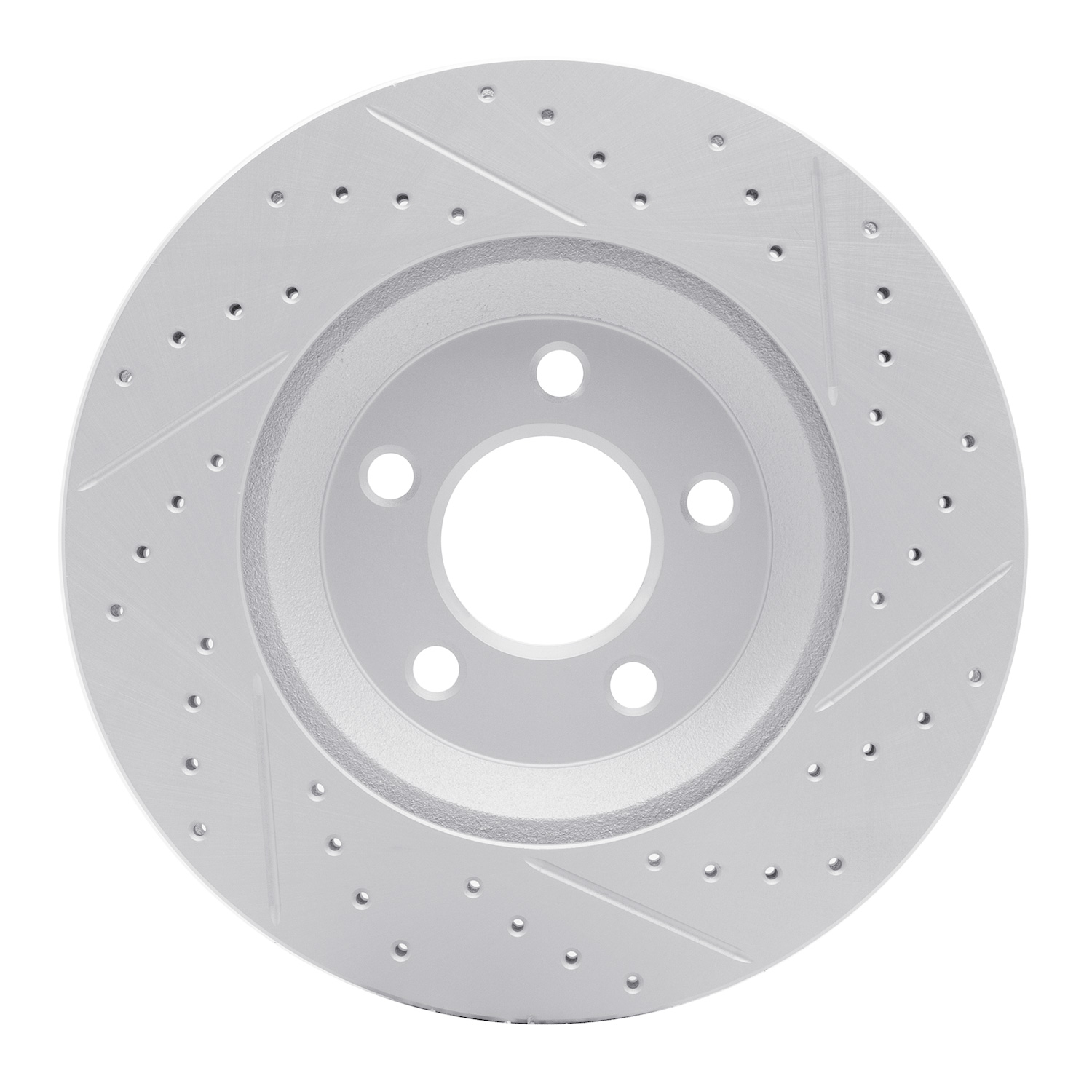

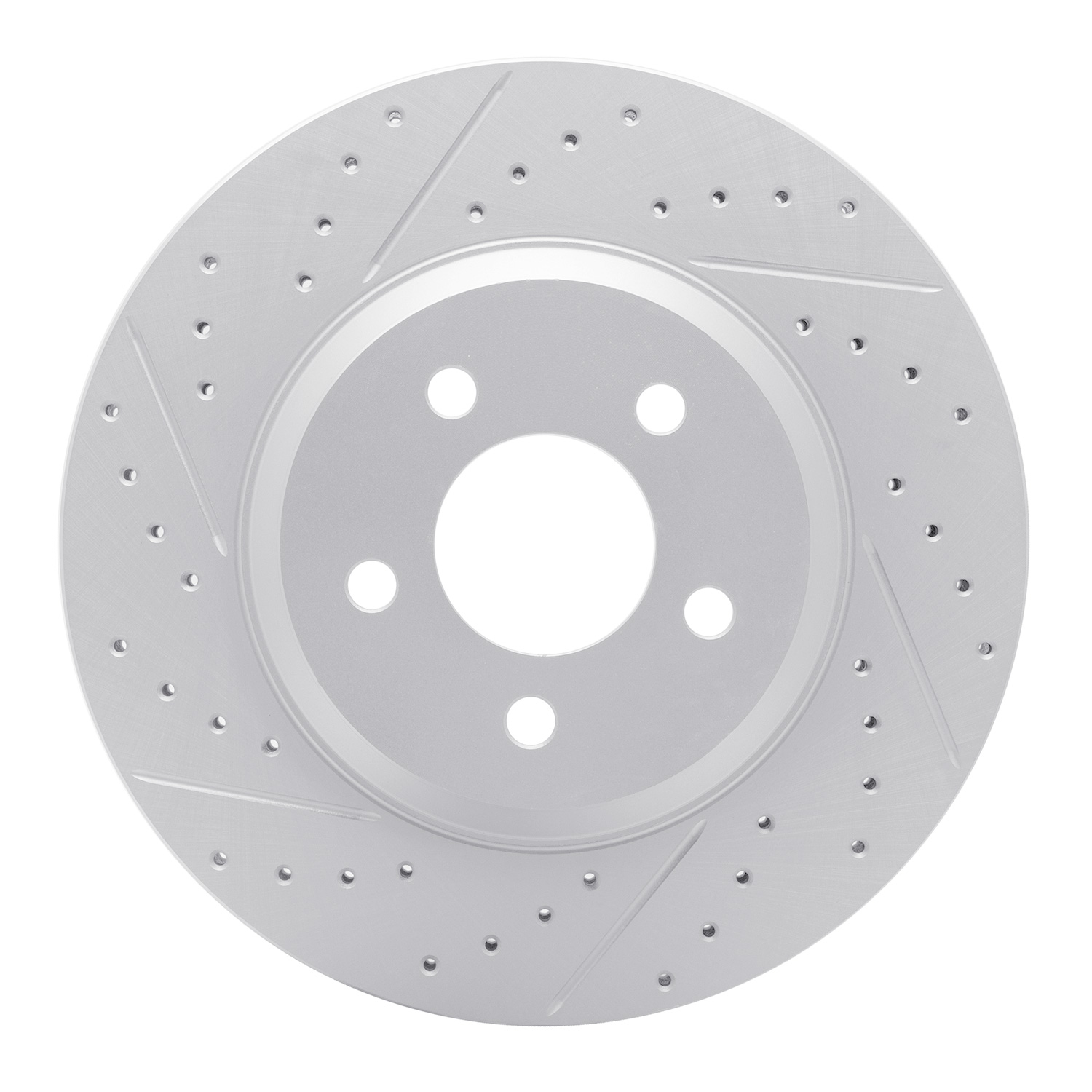

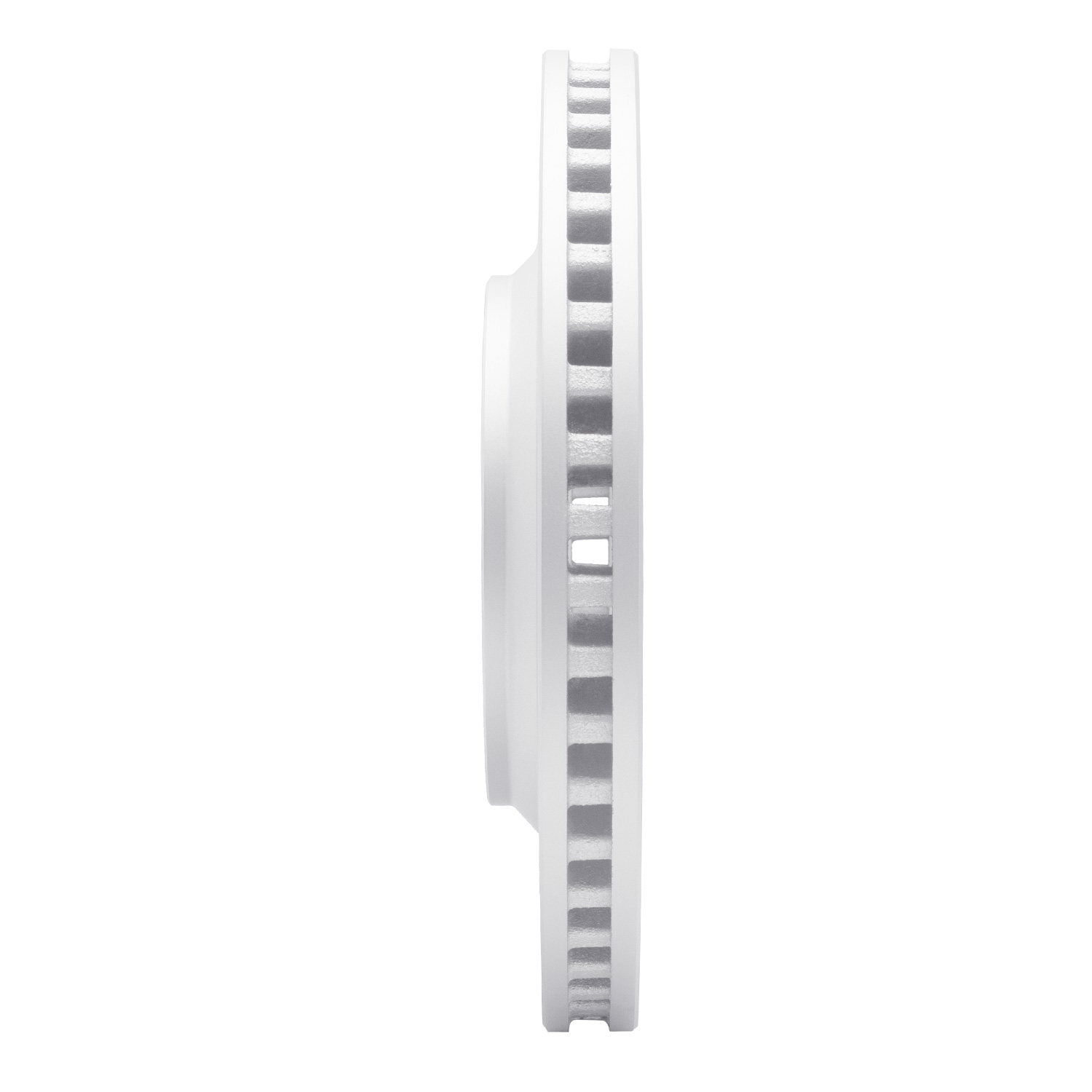

2012 Ford Mustang DFC Geoperformance Rotor - Drilled and Slotted
Part Type:
Disc Brake Rotor
SKU:
830-54057L
Axle:
Front Left
Sub model:
Base
PCQ:
1
Note:
Except Performance Package
Performance Package
Description
- DFC Geoperformance Rotor - Drilled and Slotted
Product Specifications
| Description | Value |
|---|---|
| Bolt Hole Quantity | 5EA |
| Disc Finish | Plain |
| Height | 48.2mm |
| Bolt Hole Diameter | 15.1mm |
| Outside Diameter | 316mm |
| Overall Height | 48.2mm |
| Nominal Thickness | 30mm |
| Hat Finish | Geospec Silver Grey |
| Discard Thickness | 28.4mm |
| Surface Type | Slotted X Drilled |
| Description | Value |
|---|---|
| Solid Or Vented Type Rotor | Vented |
| Rust Resistant Coating | Yes |
| Directional or Non-Directional Brake Surface | Directional |
| Bolt Circle Diameter | 114.3mm |
| Center Hole Diameter | 71mm |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Circle Diameter | 114.3mm |
| Stud/Lug Hole Diameter | 15.1mm |
| This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems). | |
| Weight | 20.15LB |
