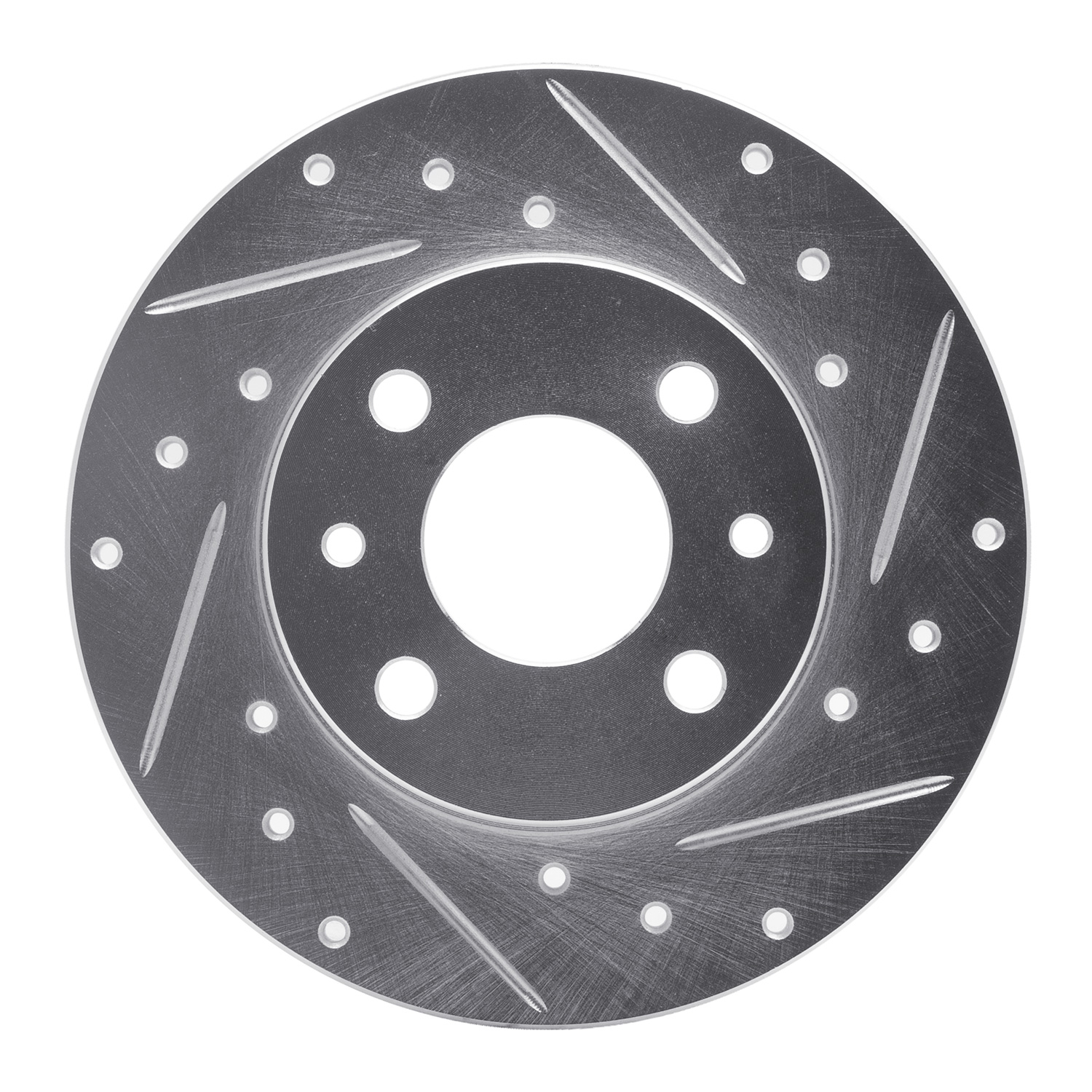

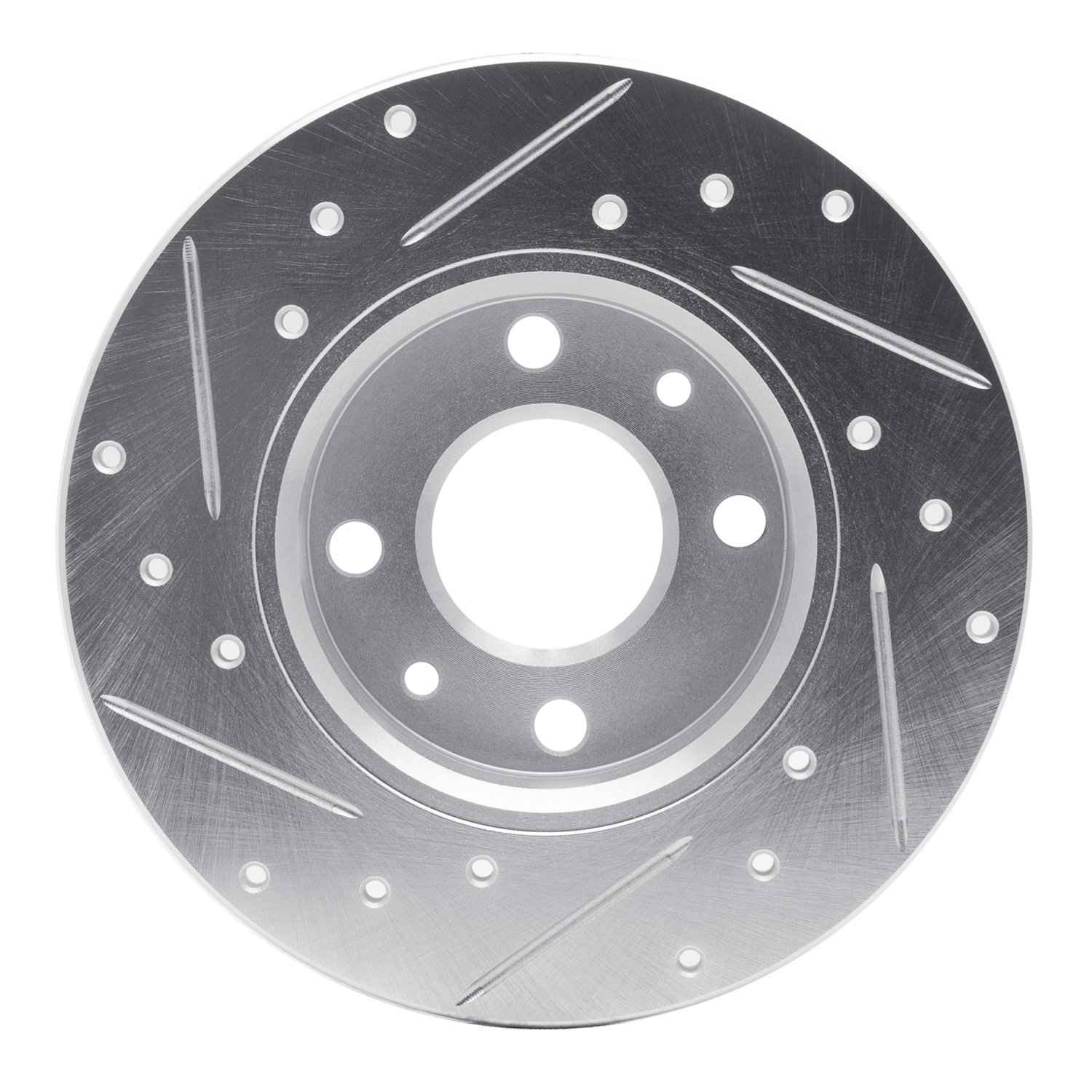

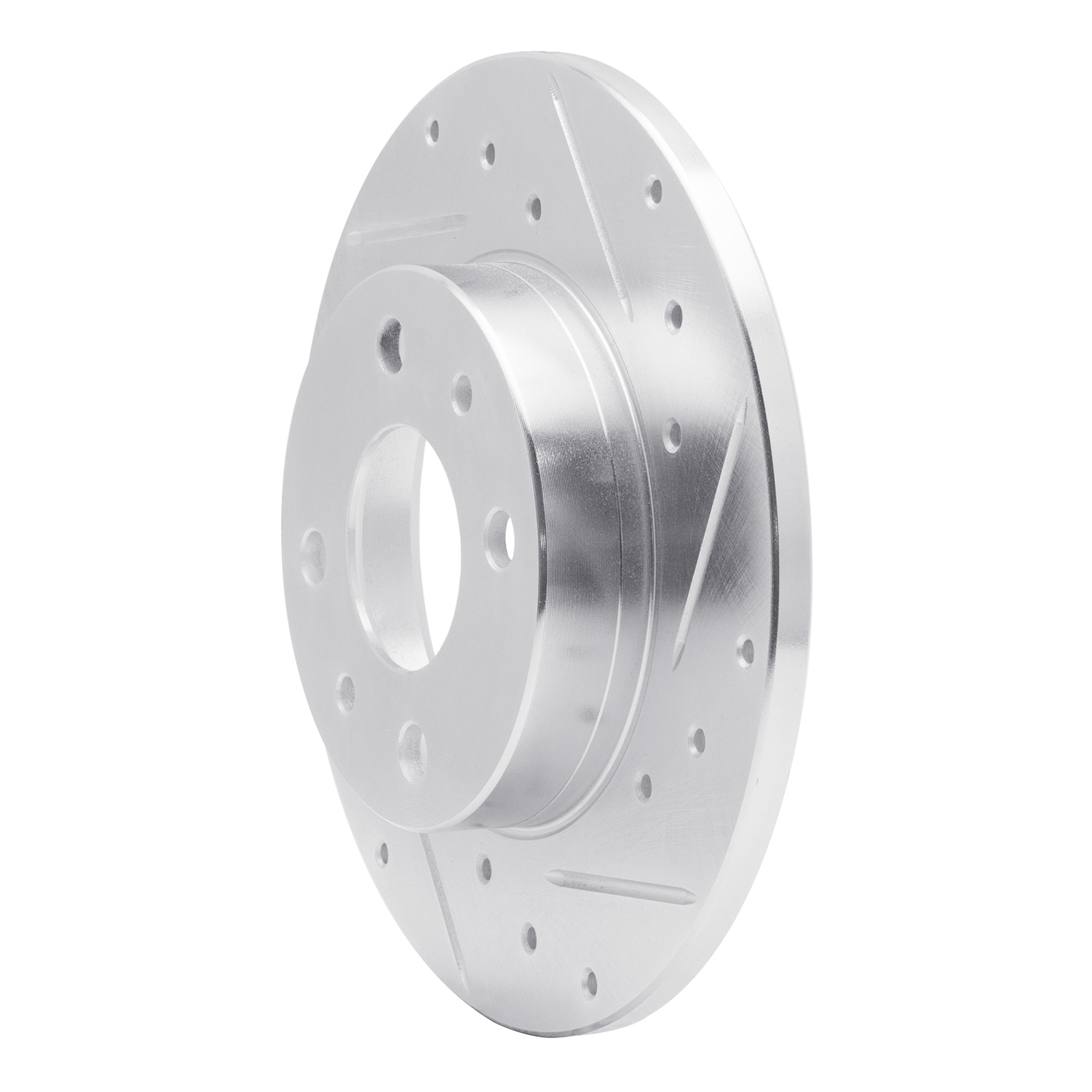

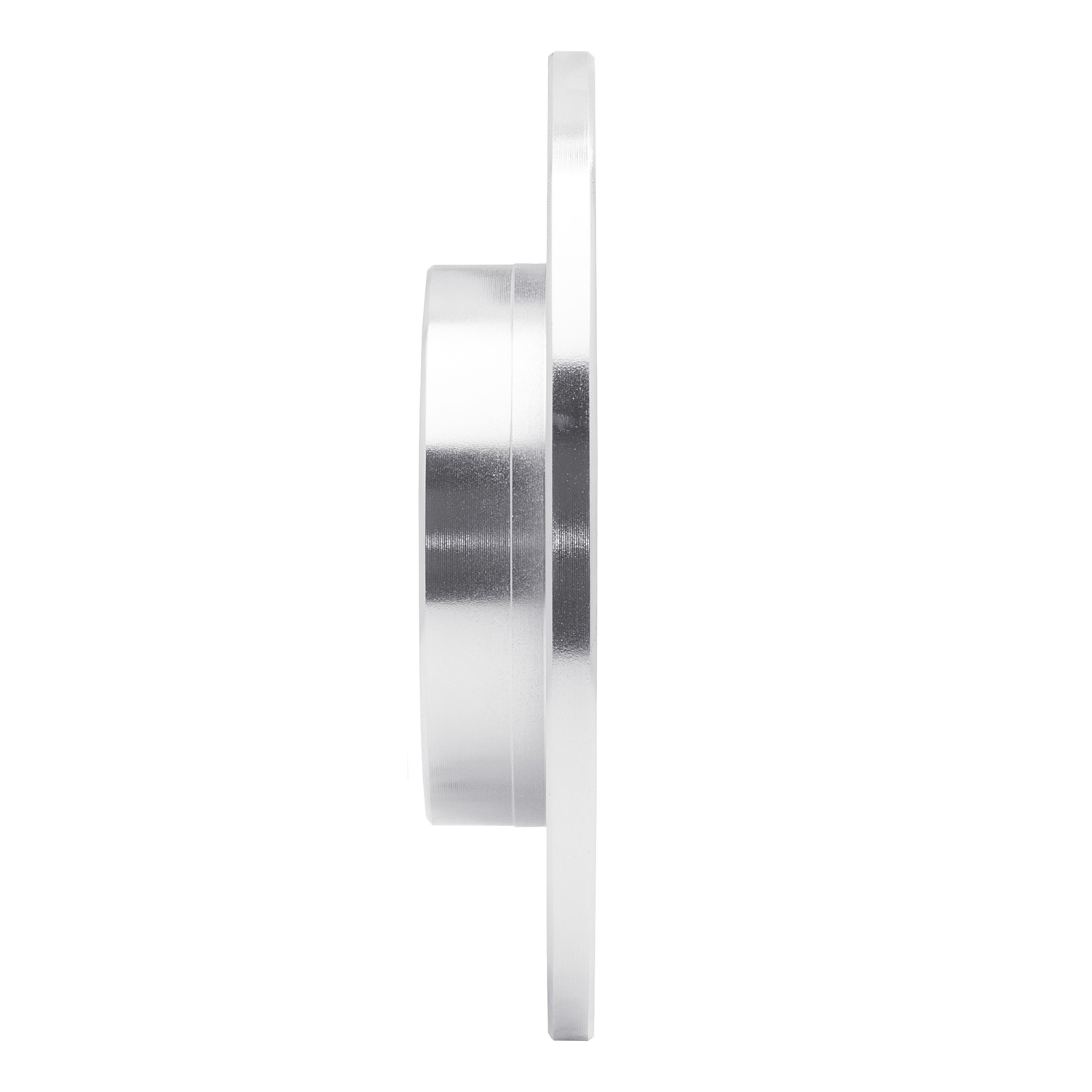

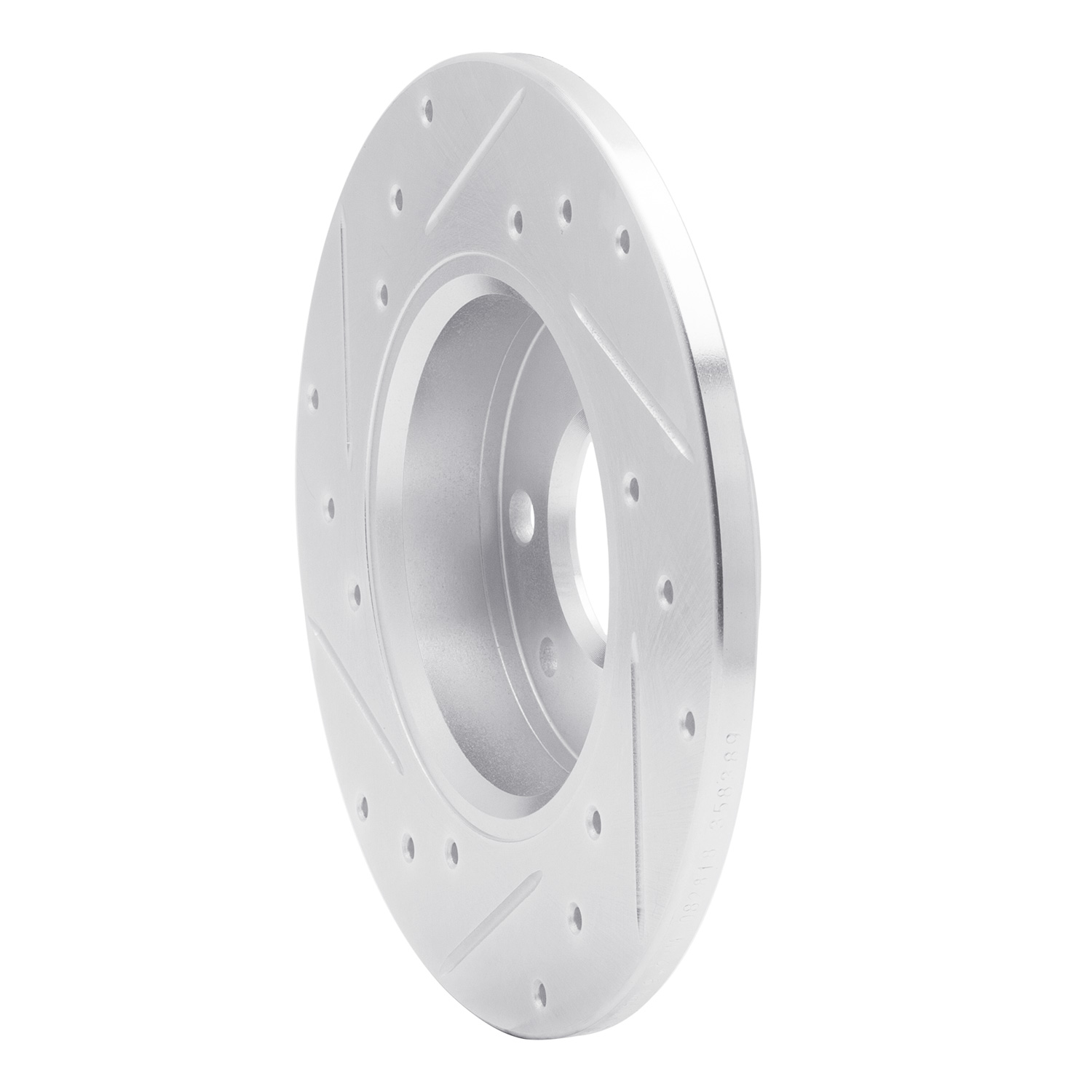

2012 Fiat 500 DFC Brake Rotor - Drilled and Slotted - Silver

Part Type:
Disc Brake Rotor
SKU:
631-07001R
Axle:
Rear Right
PCQ:
1
Note:

(USA/CANADA)

Description

  • DFC Brake Rotor - Drilled and Slotted - Silver

Features and Benefits

  • 100% Precision Cut And Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
  • New In Box, Ready To Install, No Modifications Required
  • Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
  • CNC-Machined To The Tightest Tolerances
  • Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
  • Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
  • Non-Directional Finish To Promote Faster Break-In And Smoother Stops
  • Quality Tested To Ensure Long-Lasting Performance
  • Zinc Plated Silver For Rust Protection On The Rotor Hub, Vents, And Edge

Product Specifications

Description Value
Discard Thickness 9.2mm
Nominal Thickness 11mm
Bolt Hole Quantity 4EA
Disc Finish Plain
Rust Resistant Coating Yes
Hat Finish Zinc Silver
Outside Diameter 240mm
Stud/Lug Hole Diameter 13.3mm
Overall Height 40mm
Center Hole Diameter 59mm
Description Value
Height 40mm
Directional or Non-Directional Brake Surface Directional
Surface Type Slotted X Drilled
Stud/Lug Hole Quantity 4
Bolt Hole Diameter 13.3mm
Bolt Circle Diameter 98mm
Stud/Lug Hole Circle Diameter 98mm
Solid Or Vented Type Rotor Solid
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Weight 8.05LB
