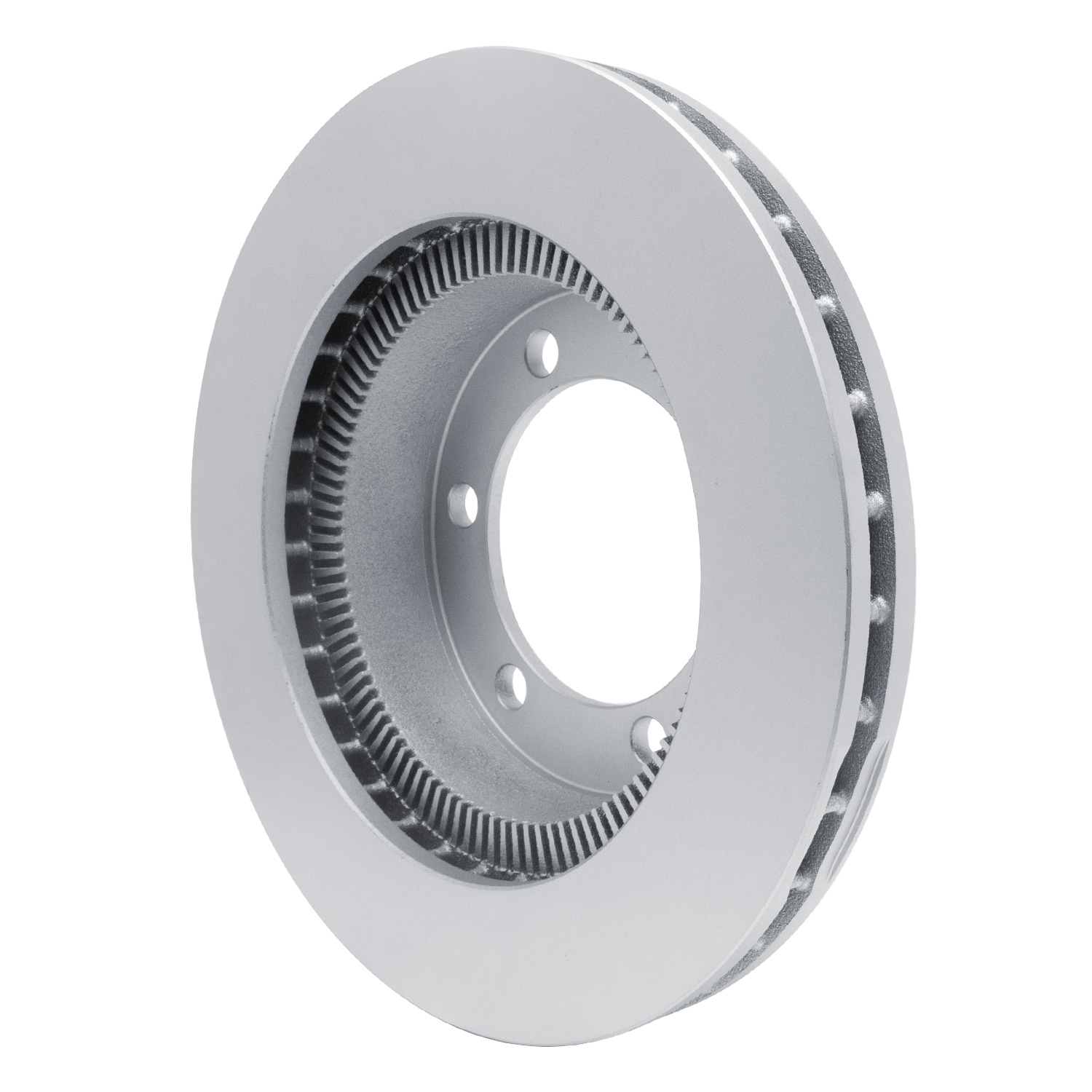

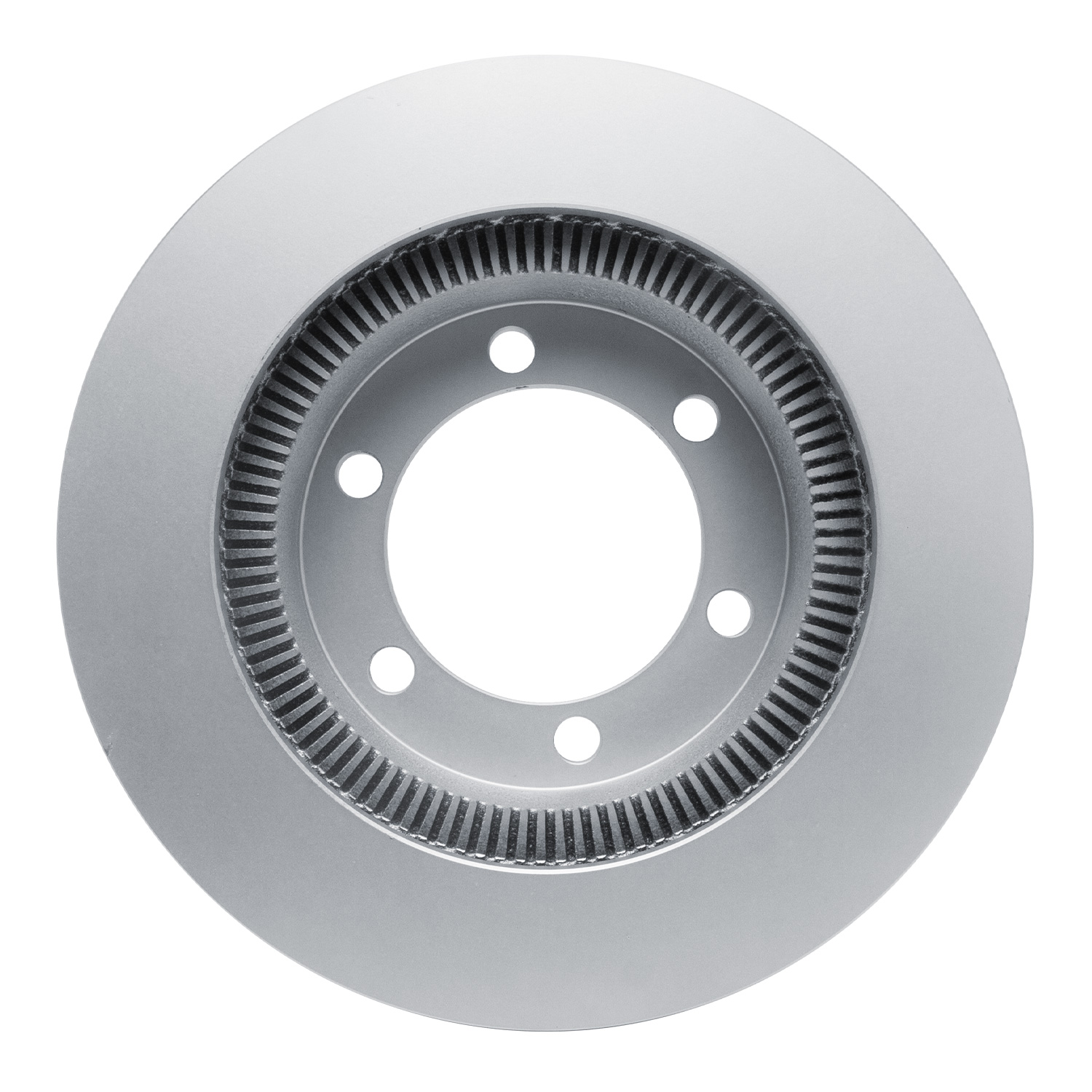

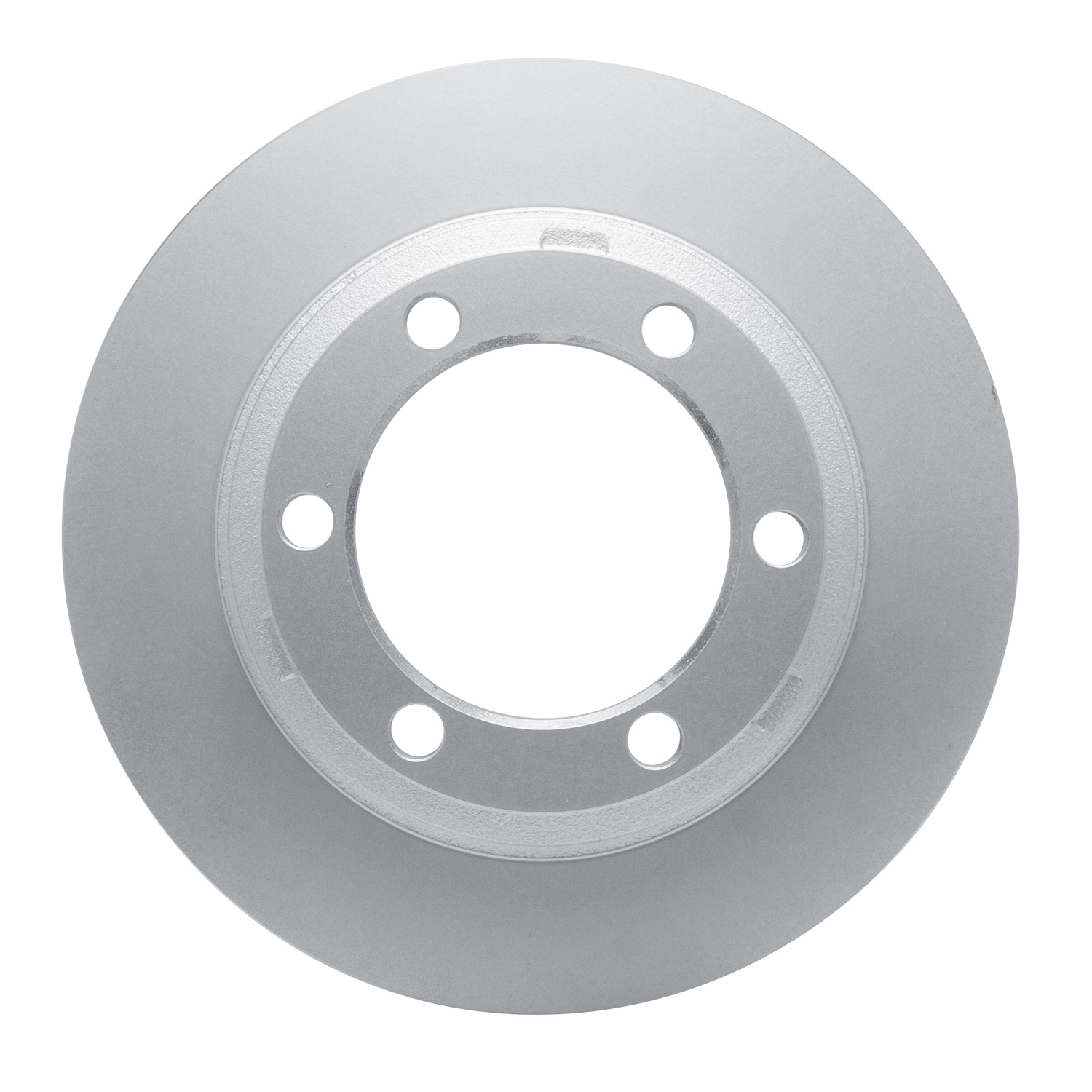

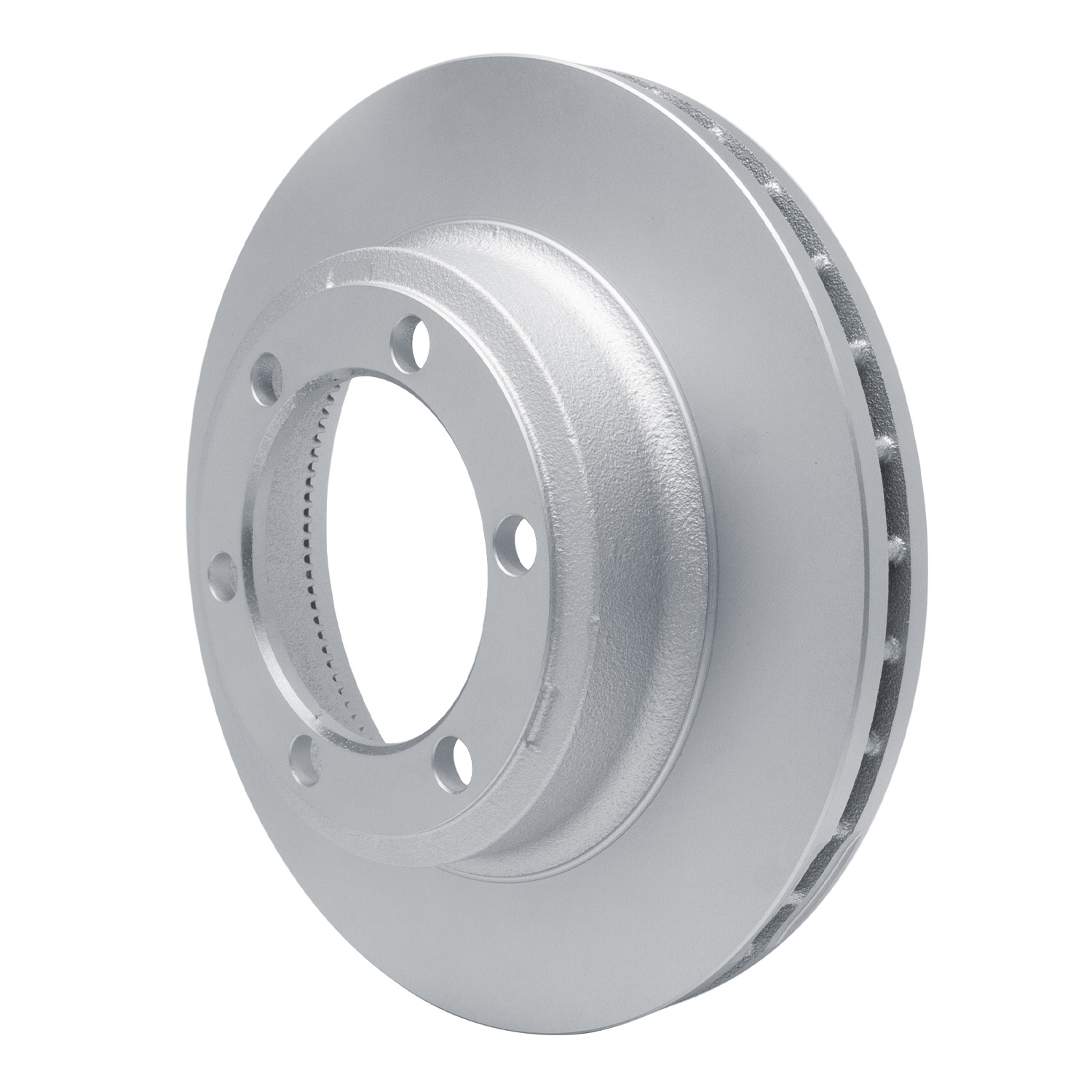

2009 Itasca Sunova DFC GEOSPEC Coated Rotor
Part Type:
Disc Brake Rotor
SKU:
604-71009
Axle:
Rear
Sub model:
31E, 35J, 37L
PCQ:
2
Note:
Workhorse Chassis; 6 Hole Hat Shaped Rotor
Description
- Disc Brake Rotor - GEOSPEC Coated
Features and Benefits
- 100% Precision Cut And Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
- CNC-Machined To The Tightest Tolerances
- Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
- Non-Directional Finish To Promote Faster Break-In And Smoother Stops
- Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
- Provides Superior Corrosion Protection Over Zinc / Conventional Painting
- Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
- Quality Tested To Ensure Long-Lasting Performance
- Ready To Install - No Additional Pre-Degreasing Preparation Needed (Saves Time And Money During Installation Process)
Product Specifications
| Description | Value |
|---|---|
| Outside Diameter | 381mm |
| Inside Diameter | 137.2mm |
| Height | 89mm |
| Bolt Hole Quantity | 6EA |
| Bolt Hole Diameter | 19.6mm |
| Overall Height | 89mm |
| Hat Finish | GEOSPEC Silver Grey |
| Discard Thickness | 33.53mm |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Description | Value |
|---|---|
| Rust Resistant Coating | Yes |
| Nominal Thickness | 36.5mm |
| Stud/Lug Hole Circle Diameter | 171.5mm |
| Center Hole Diameter | 137.2mm |
| Disc Finish | Plain |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Stud/Lug Hole Quantity | 6 |
| This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems). | |
| Stud/Lug Hole Diameter | 19.6mm |
| Weight | 40.1LB |
