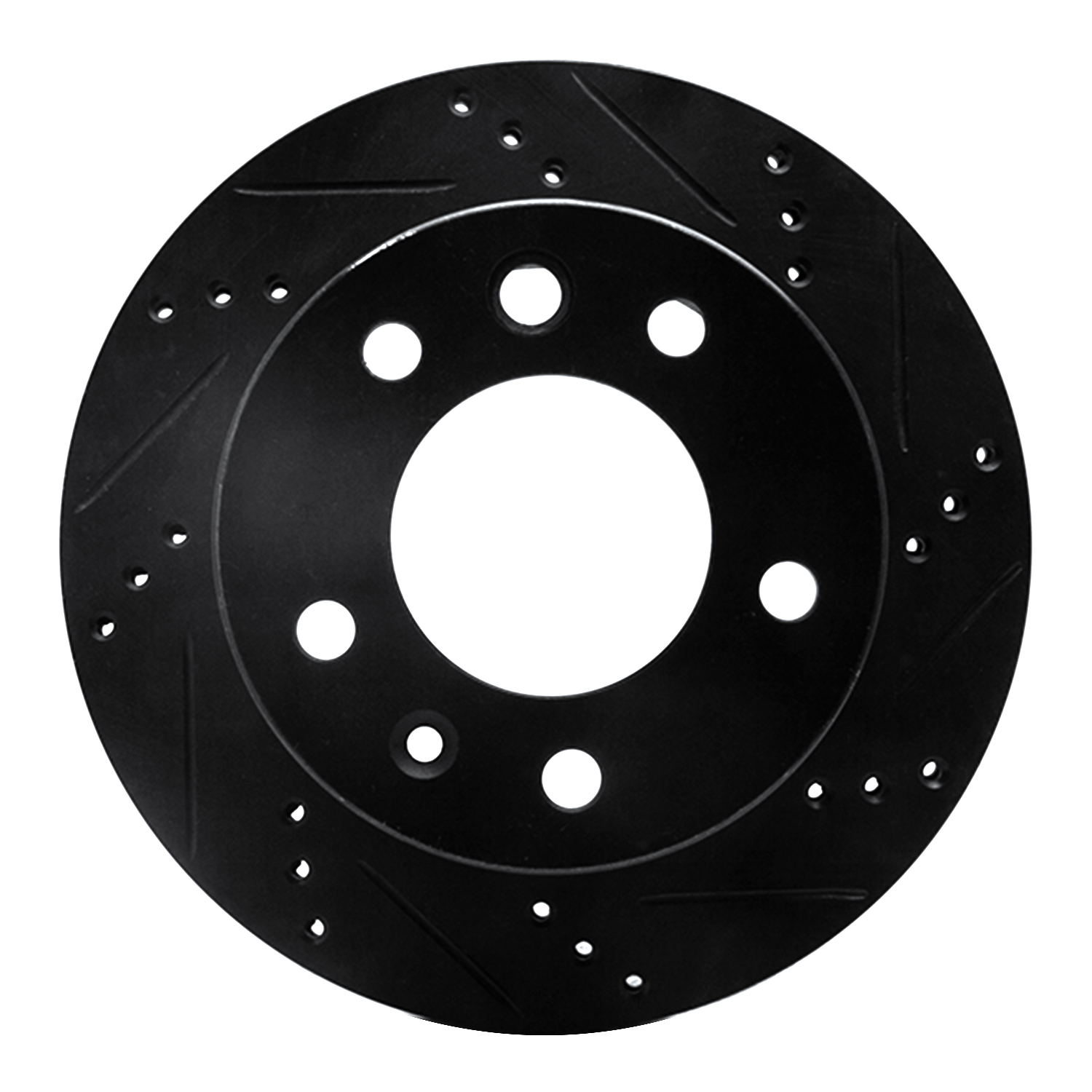

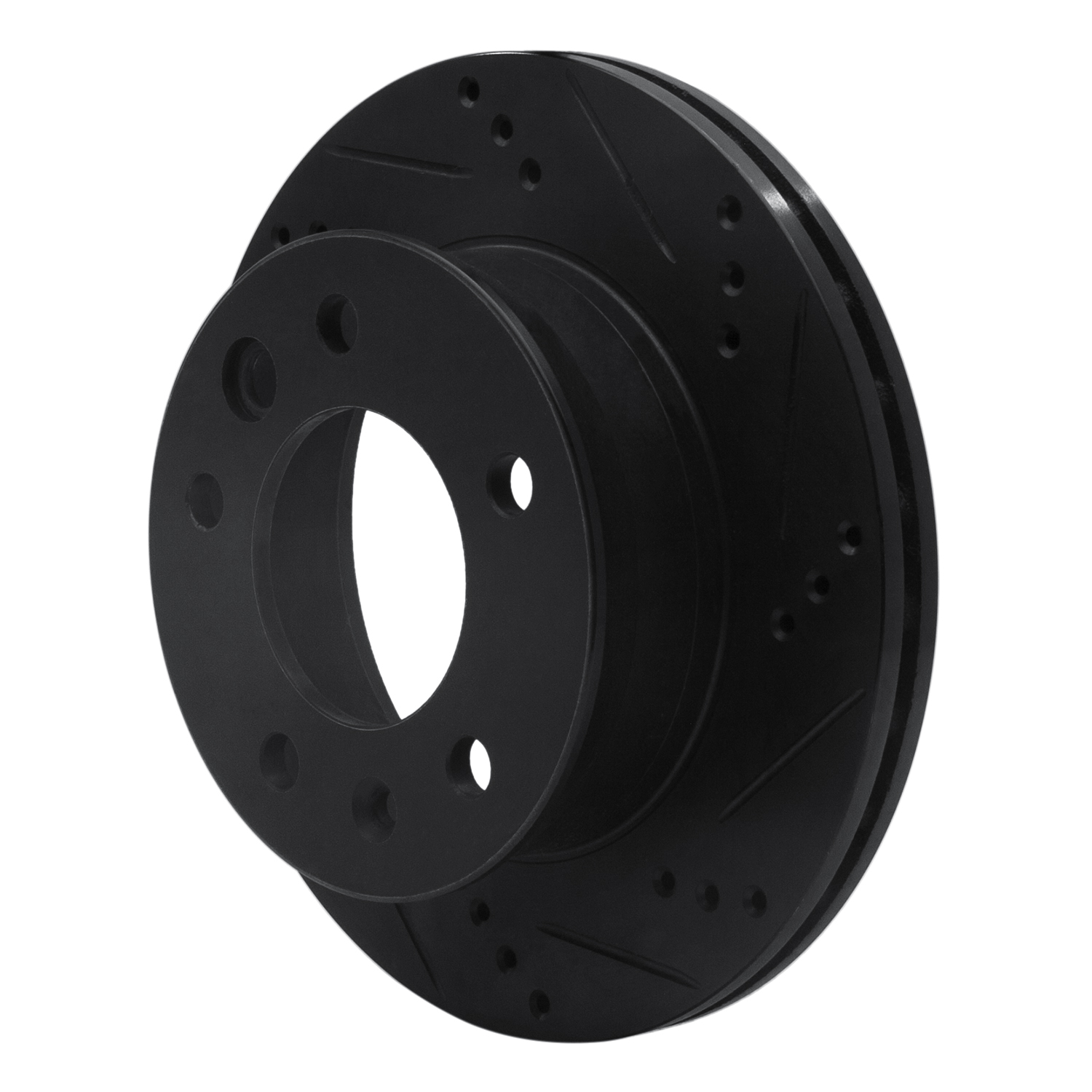

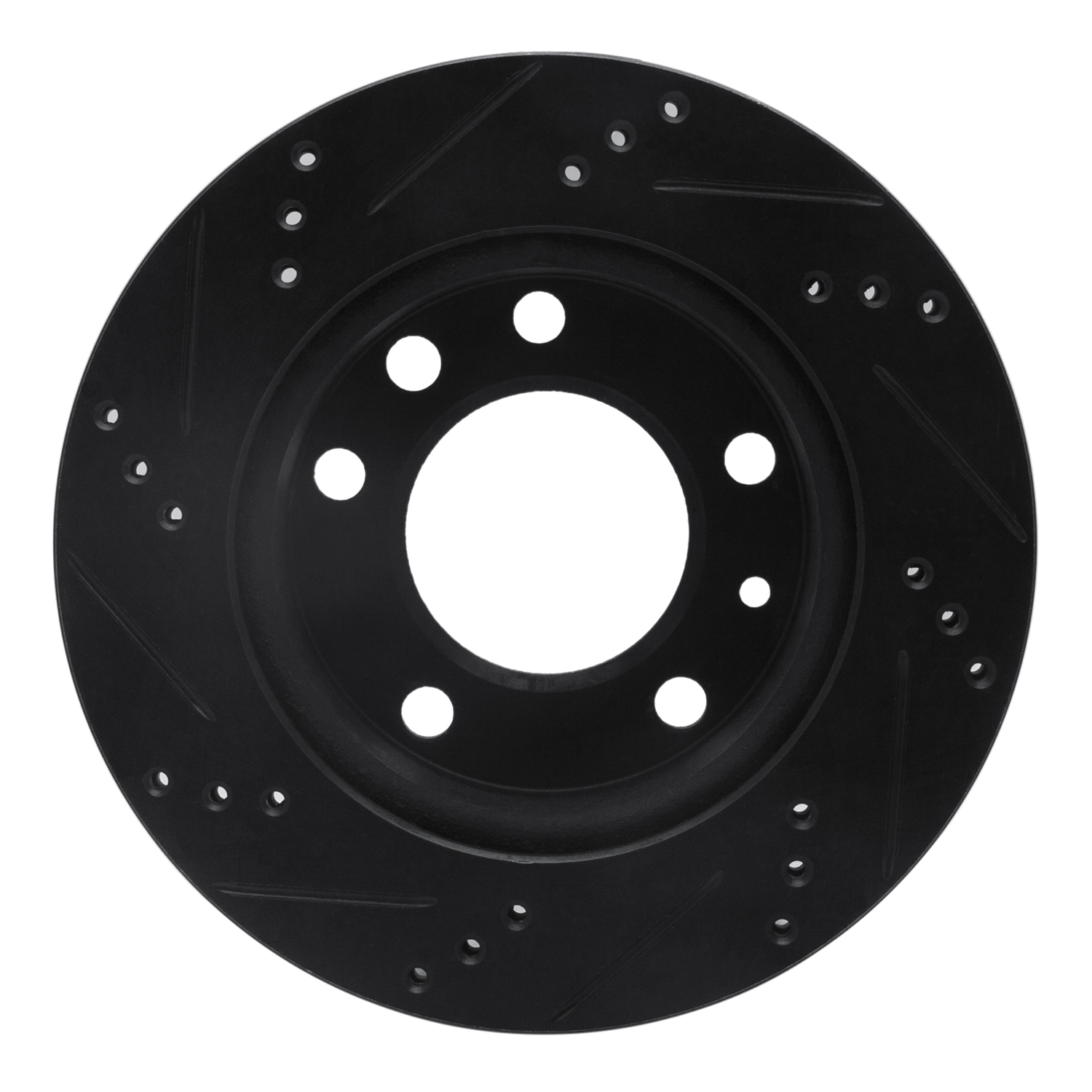

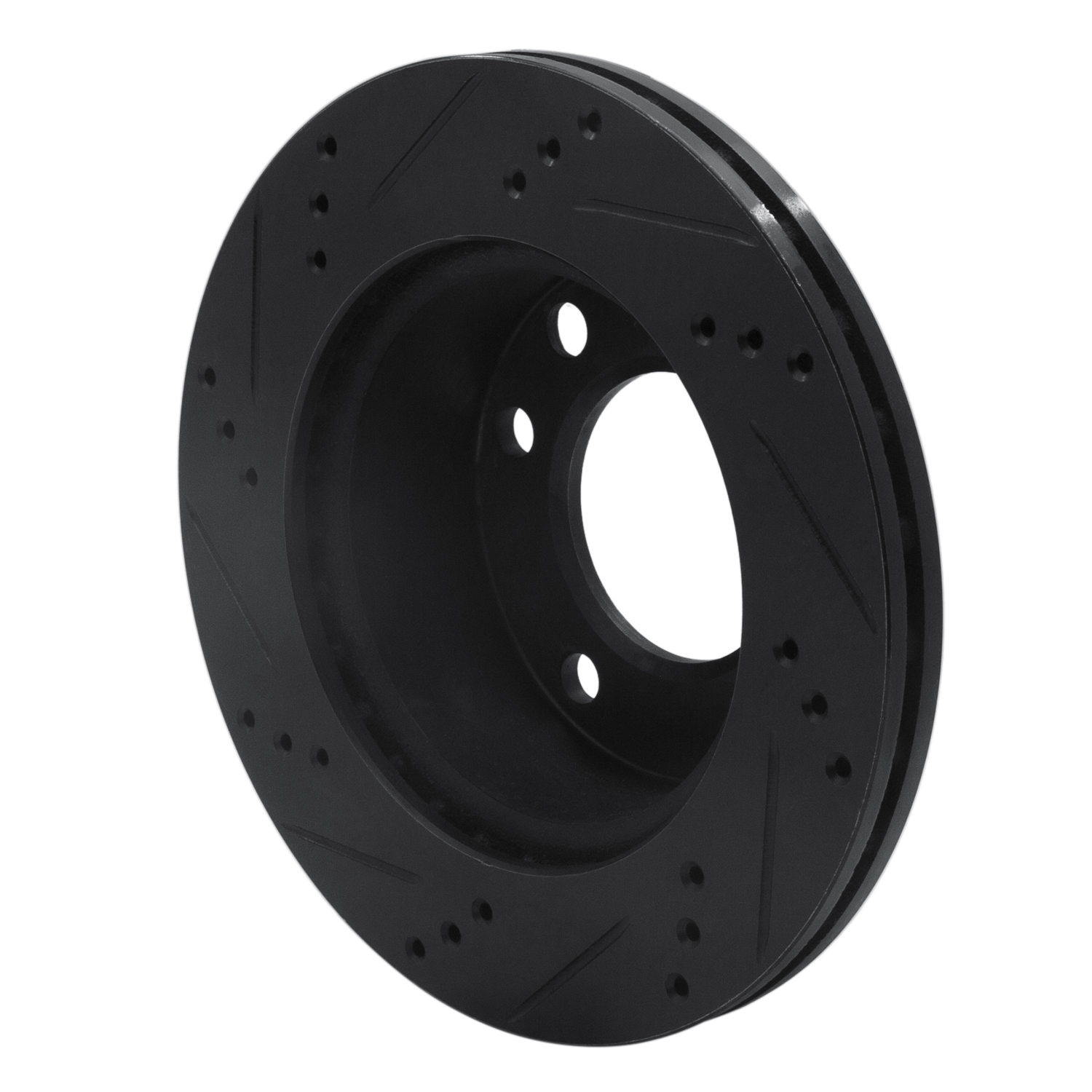

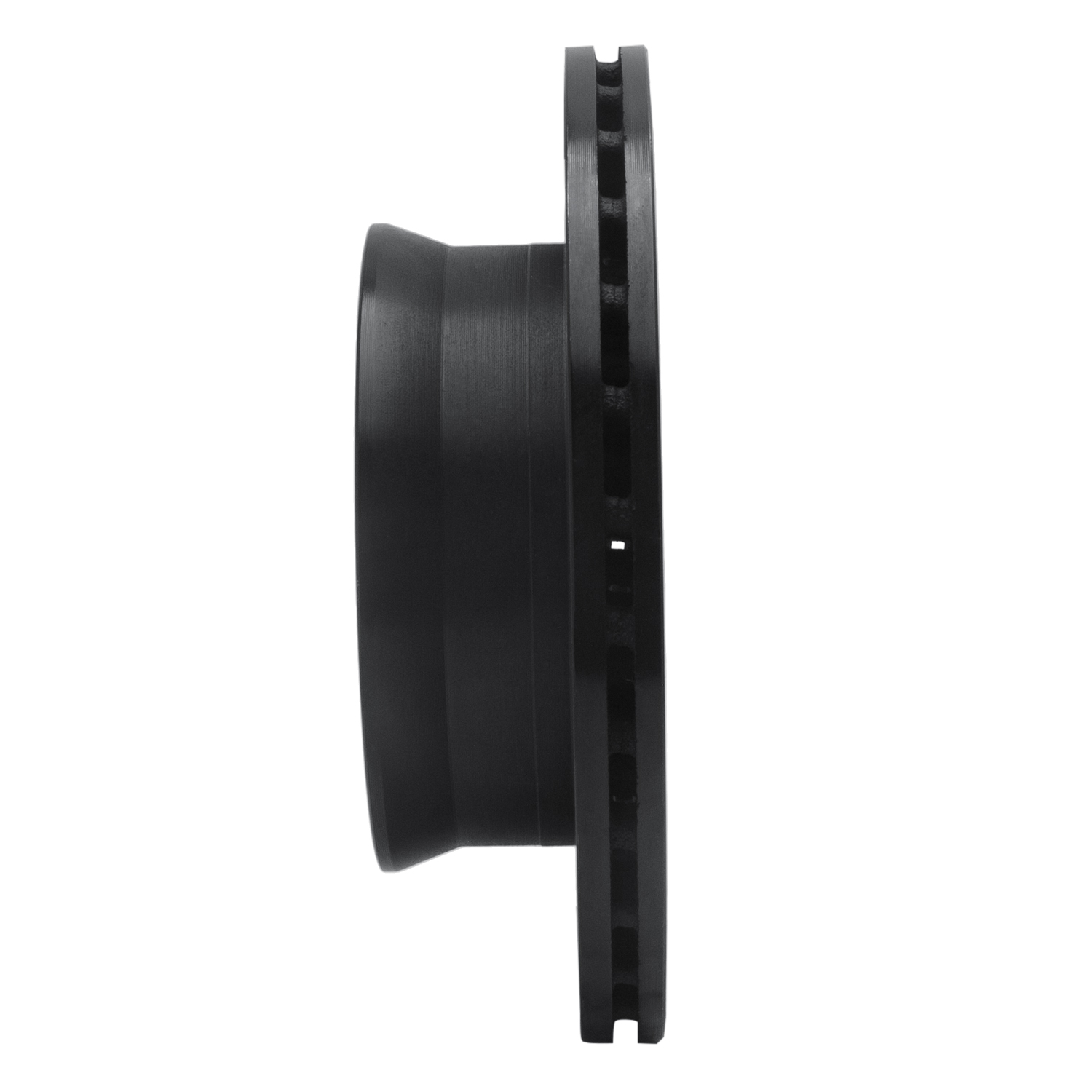

2003 Freightliner Sprinter 2500 DFC Brake Rotor - Drilled and Slotted - Black

Part Type:

Disc Brake Rotor

SKU:

633-40041L

Axle:

Front Left

PCQ:

Note:

276mm Front Disc

276mm Front, 272mm Rear Disc; Clip Style Brake Pad Sensors; ATE Rear Calipers

276mm Front, 272mm Rear Disc; Pin Style Brake Pad Sensors; ATE Rear Calipers

276mm Front, 272mm Rear Disc; Pin Style Brake Pad Sensors; Bosch Rear Calipers

Description

Features and Benefits

100% Precision Cut And Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
New In Box, Ready To Install, No Modifications Required
CNC-Machined To The Tightest Tolerances
Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
Non-Directional Finish To Promote Faster Break-In And Smoother Stops
Quality Tested To Ensure Long-Lasting Performance
Zinc Plated Black For Rust Protection On The Rotor Hub, Vents, And Edge

Product Specifications

Description	Value
Solid Or Vented Type Rotor	Vented
Nominal Thickness	22mm
Height	77.3mm
Bolt Hole Quantity	5EA
Center Hole Diameter	85mm
Disc Finish	Plain
Discard Thickness	19mm
Outside Diameter	276mm
Stud/Lug Hole Circle Diameter	130mm
Stud/Lug Hole Quantity	5

Description	Value
Rust Resistant Coating	Yes
Bolt Hole Diameter	15mm
Surface Type	Slotted X Drilled
Directional or Non-Directional Brake Surface	Directional
Stud/Lug Hole Diameter	15mm
Hat Finish	Zinc Black
Bolt Circle Diameter	130mm
Overall Height	77.3mm
	This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Weight	15.6LB
