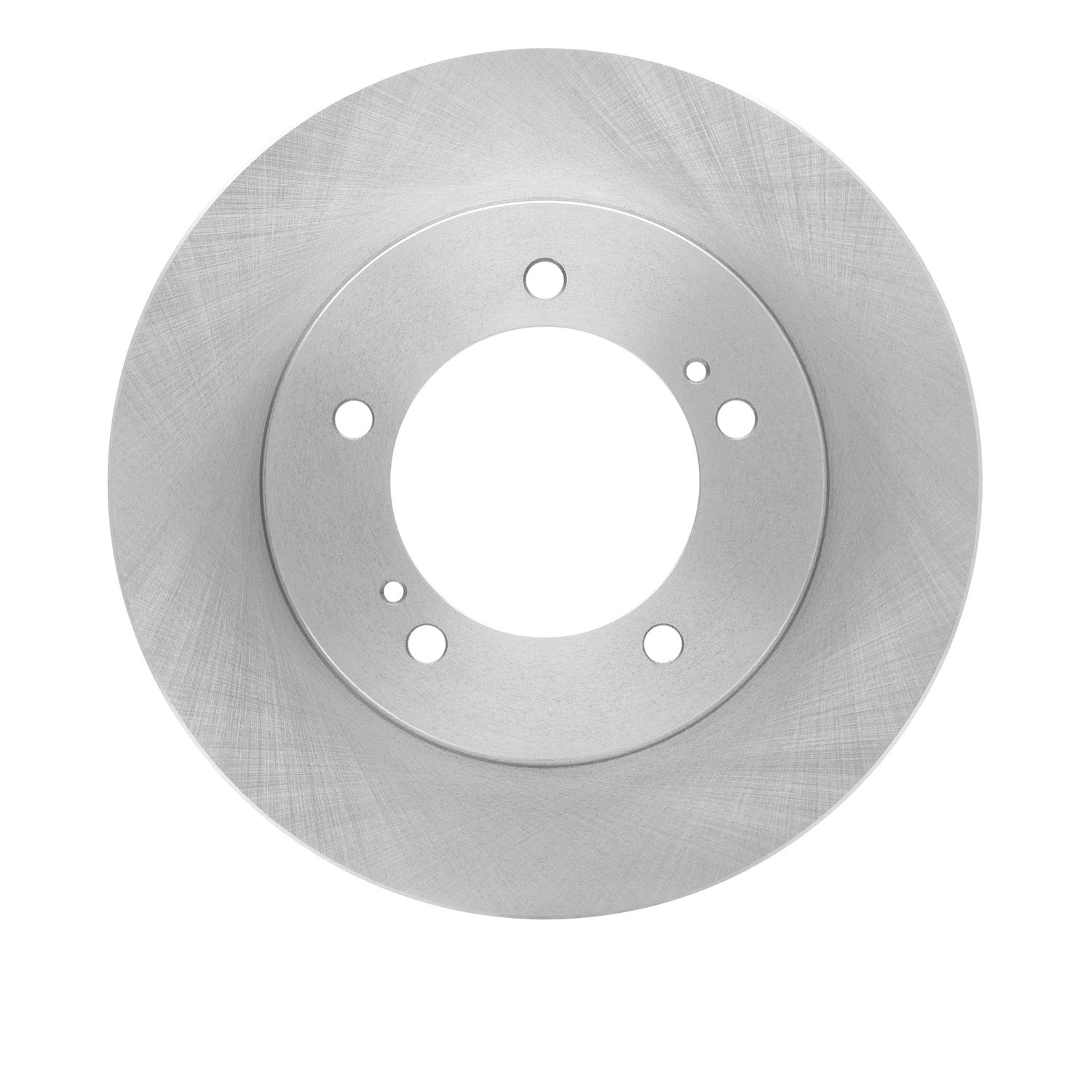

1996 Suzuki Sidekick DFC Brake Rotor
Part Type:
Disc Brake Rotor
SKU:
600-01012
Axle:
Front
Engine Base:
1.8L 1840cc L4
PCQ:
2
Features and Benefits
- 100% Precision Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
- New In Box, Ready To Install, No Modifications Required
- Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
- Non-Directional Finish To Promote Faster Break-In And Smoother Stops
- CNC-Machined To The Tightest Tolerances
- Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
- Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
- Quality Tested To Ensure Long-Lasting Performance

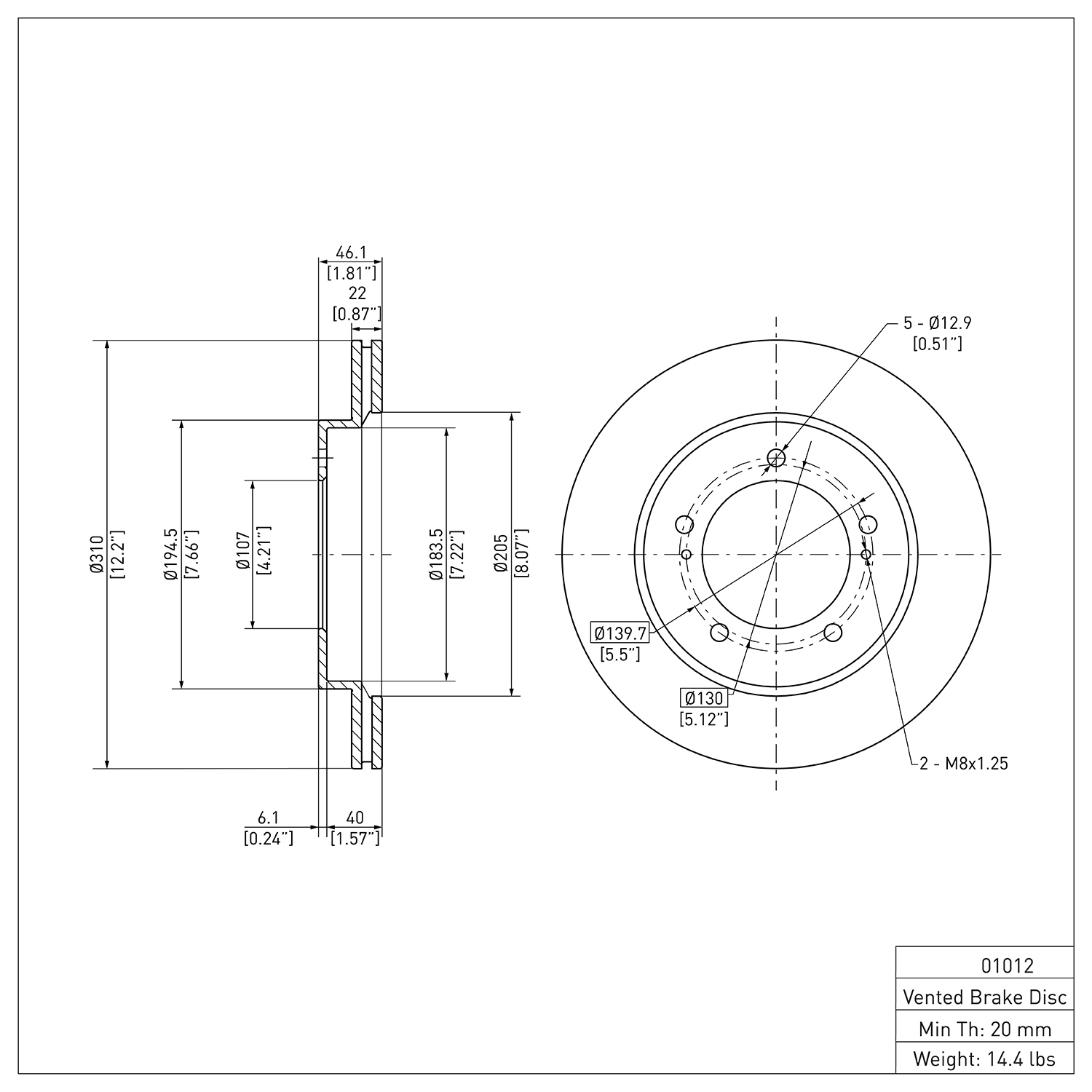

Product Specifications
| Description | Value |
|---|---|
| Disc Finish | Plain |
| Bolt Hole Quantity | 5EA |
| Discard Thickness | 20mm |
| Inside Diameter | 107.1mm |
| Stud/Lug Hole Diameter | 12.7mm |
| Outside Diameter | 310mm |
| Rust Resistant Coating | Yes |
| Overall Height | 46mm |
| This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems). |
| Description | Value |
|---|---|
| Height | 46mm |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Nominal Thickness | 22mm |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Bolt Hole Diameter | 12.7mm |
| Center Hole Diameter | 107.1mm |
| Stud/Lug Hole Circle Diameter | 139.7mm |
| Weight | 14.6LB |
