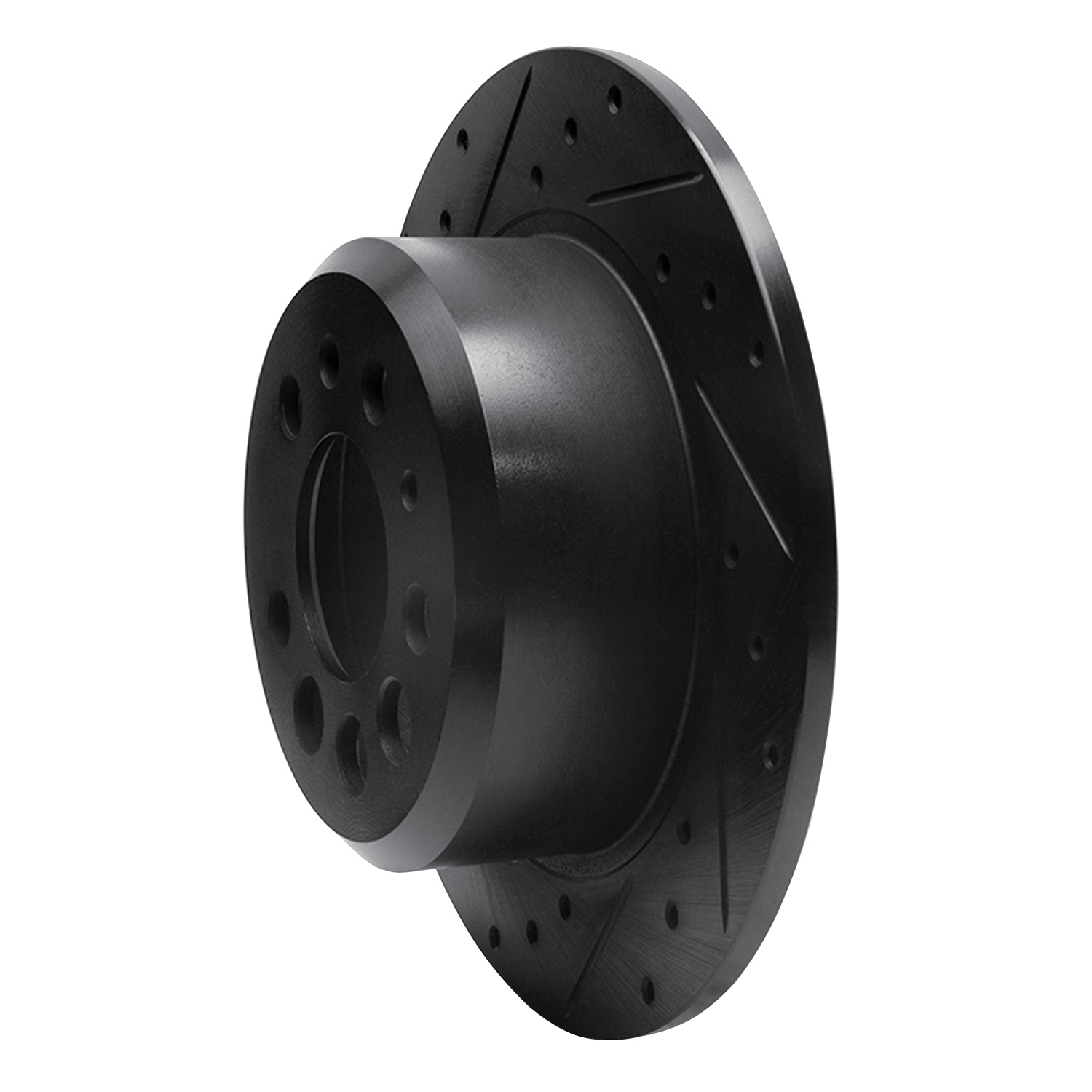

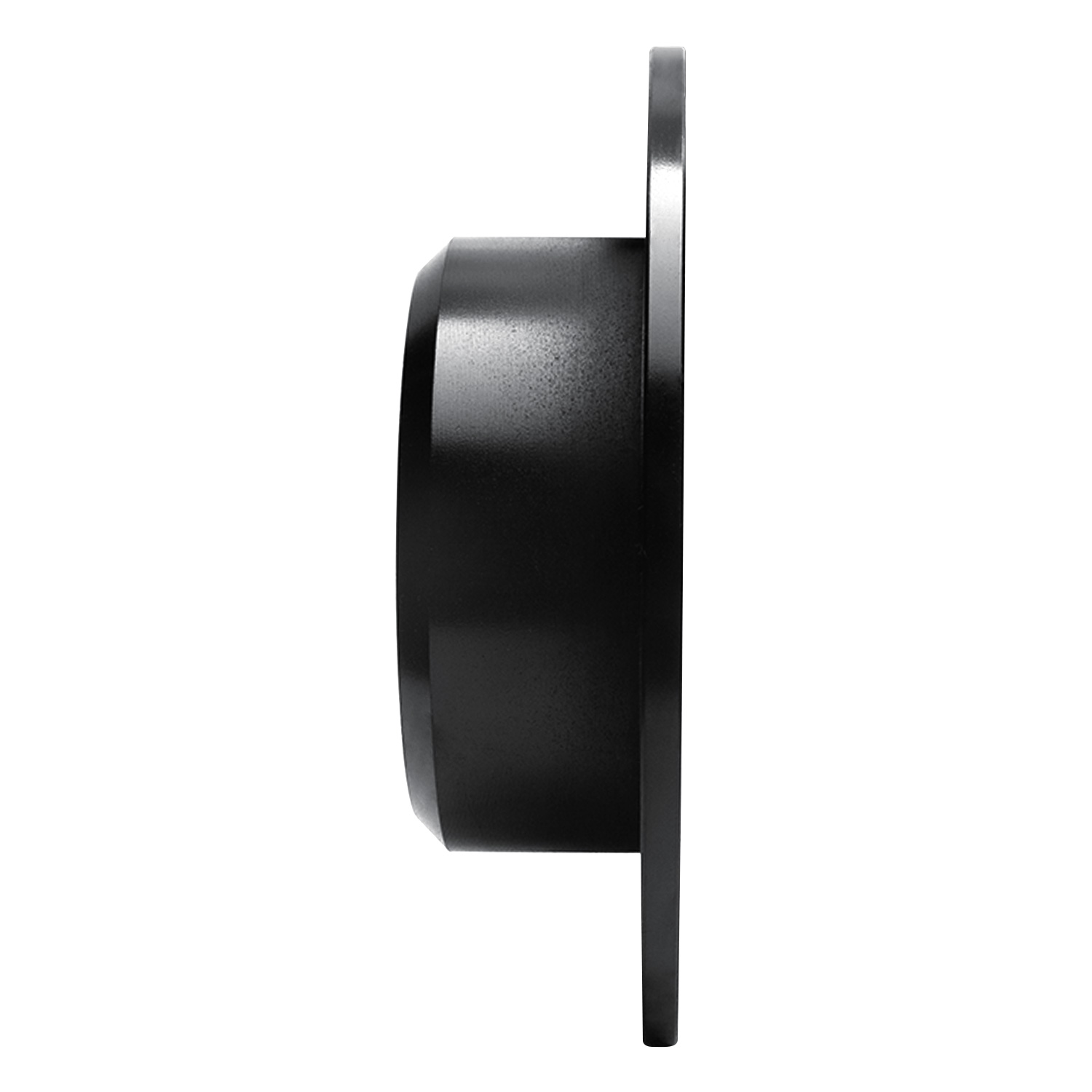

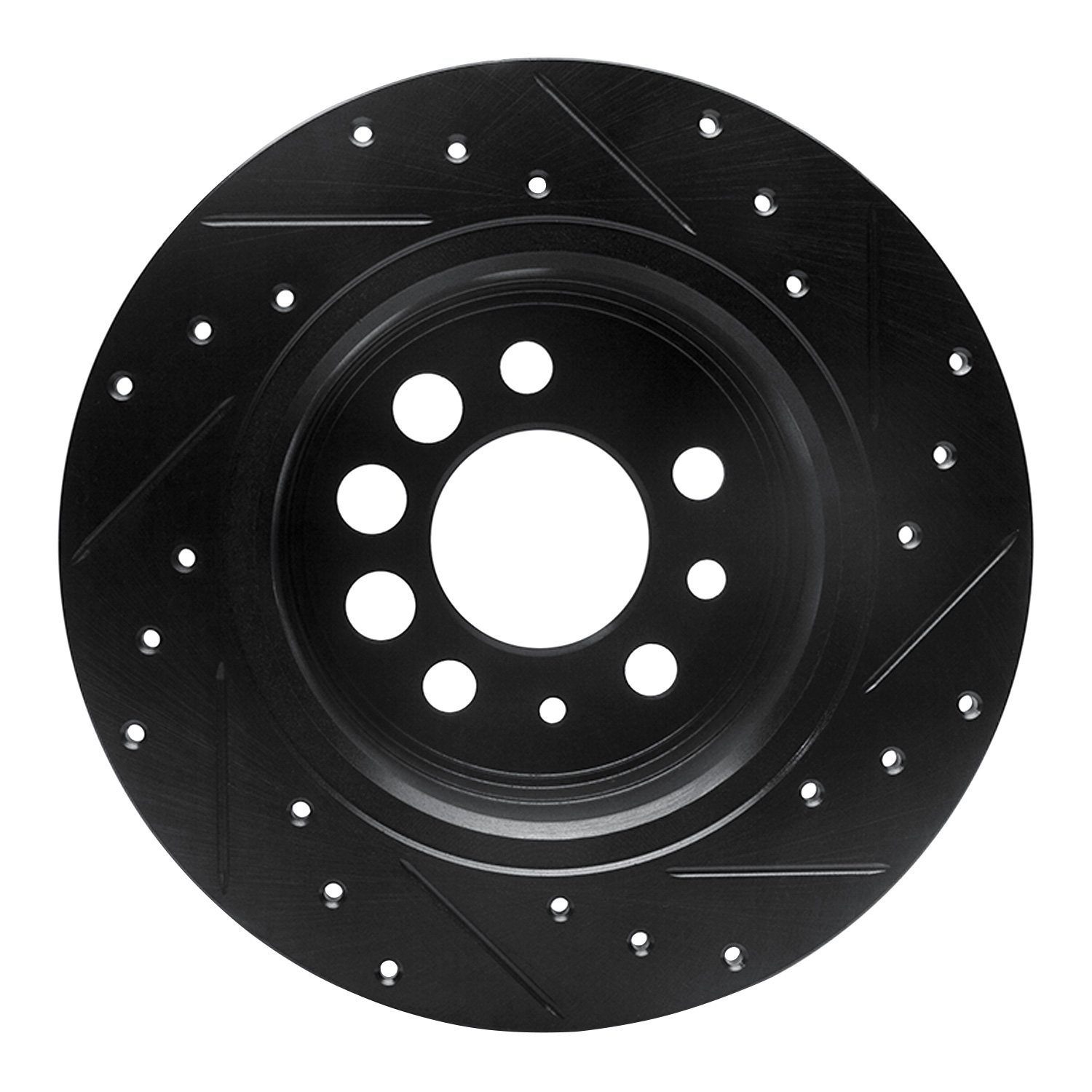

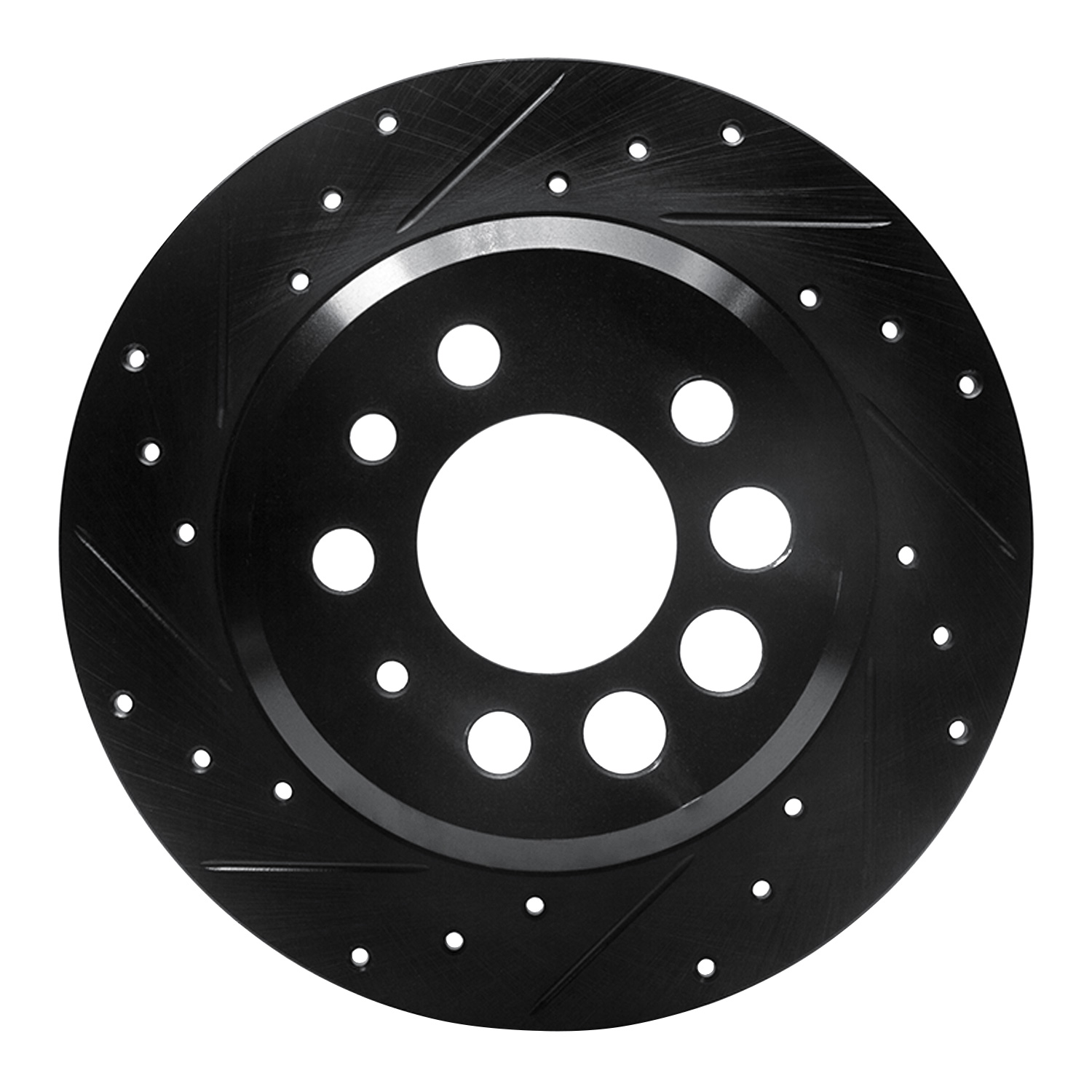

1988 Volvo 740 DFC Brake Rotor - Drilled and Slotted - Black

Part Type:
Disc Brake Rotor
SKU:
633-27006L
Axle:
Rear Left
PCQ:
1
Note:

Except ABS; Bendix Front Calipers; ATE Rear Calipers

Except ABS; Girling Front Calipers; ATE Rear Calipers

w/ ABS; Bendix Front Calipers; ATE Rear Calipers

w/ ABS; Girling Front Calipers; ATE Rear Calipers

Description

  • DFC Brake Rotor - Drilled and Slotted - Black

Features and Benefits

  • 100% Precision Cut And Mill-Balanced For Smoother Stopping And Zero Vibration At Any Speed
  • Engineered With Premium G3000/G11H18 Iron Castings For Strength, Stability, And Durability
  • CNC-Machined To The Tightest Tolerances
  • Designed To Meet The Same Form, Fit, And Function As OEM Brake Rotors
  • New In Box, Ready To Install, No Modifications Required
  • Non-Directional Finish To Promote Faster Break-In And Smoother Stops
  • Quality Tested To Ensure Long-Lasting Performance
  • Original Equipment (OE) Vane Configuration To Ensure Proper And Maximum Heat Dissipation
  • Zinc Plated Black For Rust Protection On The Rotor Hub, Vents, And Edge

Product Specifications

Description Value
Outside Diameter 281mm
Rust Resistant Coating Yes
Height 73.5mm
Bolt Hole Quantity 5EA
Nominal Thickness 9.6mm
Overall Height 73.5mm
Discard Thickness 8.4mm
Bolt Hole Diameter 16.5mm
Disc Finish Plain
Stud/Lug Hole Diameter 16.5mm
Description Value
Hat Finish Zinc Black
Surface Type Slotted X Drilled
Stud/Lug Hole Quantity 5
Directional or Non-Directional Brake Surface Directional
Center Hole Diameter 68mm
Solid Or Vented Type Rotor Solid
Stud/Lug Hole Circle Diameter 108mm
Bolt Circle Diameter 108mm
This product contains Antimony Oxide and other chemicals which is known in the State of California to cause cancer ( or reproductive problems).
Weight 11.91LB
